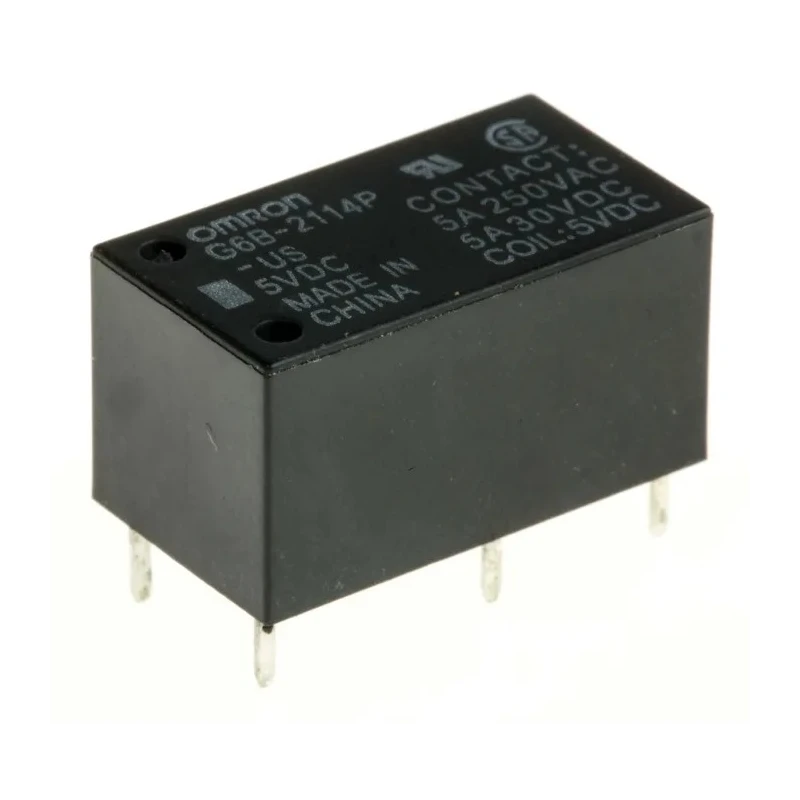

Omron Subminiature PCB Power Relay 5V dc Coil 5A Switching Current DPST G6B-2114P-US DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2114P-US DC5 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | CSA, EN, RoHS, UL, VDE |
| Coil Resistance | 83.3Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300mW |
| Switching Power | 80W |
| Subminiature | 20x10x10mm |
Key Features
- Compact size of 20x10x10 mm for space-saving PCB integration.
- Low coil power consumption at 300 mW enhances energy efficiency.
- Switching capability includes 5A current at 30V dc and 250V ac voltages.
- Silver alloy contact material ensures reliable electrical performance.
- Wide operating temperature range from -25°C to 70°C for varied environments.
- Fully sealed construction with impulse withstand voltage of 6 kV for durability.
- Mount type is PCB with solder terminals suitable for stable electronic assembly.
- Ideal for industrial, automation, control, and electrical system applications.
Product Description
Omron G6B-2114P-US DC5 PCB Power Relay is a subminiature, high-capacity relay designed for efficient control equipment output applications. It features a 5V dc coil voltage and a double pole single throw (DPST) contact configuration supporting 5A switching current with switching voltages of 30V dc and 250V ac.
This relay measures 20 mm in length, 11 mm in width, and 11 mm in height, making it suitable for compact PCB mounting with solder terminal connections. The coil power consumption is low at 300 mW, providing energy-efficient performance in various electrical and automation systems.
The relay is built with silver alloy contacts known for high conductivity and reliable switching under load. It operates reliably within a temperature range of -25°C to 70°C and has an impulse withstand voltage of 6 kV, ensuring durability and stability in demanding industrial environments.
Certifications including CSA, EN, RoHS, UL, and VDE underline the product's compliance to international standards and safety regulations. The fully sealed construction minimizes interference and protects internal components.
Applications include industrial automation, laboratory equipment, HVAC control systems, manufacturing control panels, and general electrical switching tasks requiring compact, reliable relay solutions.
Compact size of 20x10x10 mm for space-saving PCB integration. Low coil power consumption at 300 mW enhances energy efficiency. Switching capability includes 5A current at 30V dc and 250V ac voltages. Silver alloy contact material ensures reliable electrical performance.
Wide operating temperature range from -25°C to 70°C for varied environments. Fully sealed construction with impulse withstand voltage of 6 kV for durability. Mount type is PCB with solder terminals suitable for stable electronic assembly.
Standards and approvals: CSA, EN, RoHS, UL, VDE certified for quality assurance. Ideal for industrial, automation, control, and electrical system applications. Explore EnvMart's Electronics & Electricals category for more high-quality relays and automation components to fit diverse industrial and commercial needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V dc.
It supports a switching current of 5A.
This model measures 20 mm in length, 11 mm in width, and 11 mm in height.
The relay features a double pole single throw (DPST) contact configuration.
It can switch voltages of up to 30V dc and 250V ac.
The coil power consumption is low at 300 mW.
The relay is built with silver alloy contacts, known for their high conductivity.
It operates reliably within a temperature range of -25°C to 70°C.
This model is designed for PCB mounting with solder terminals.
It is certified under CSA, EN, RoHS, UL, and VDE standards.
The relay has an impulse withstand voltage of 6 kV.
It is ideal for industrial automation, control systems, and general electrical switching tasks.
