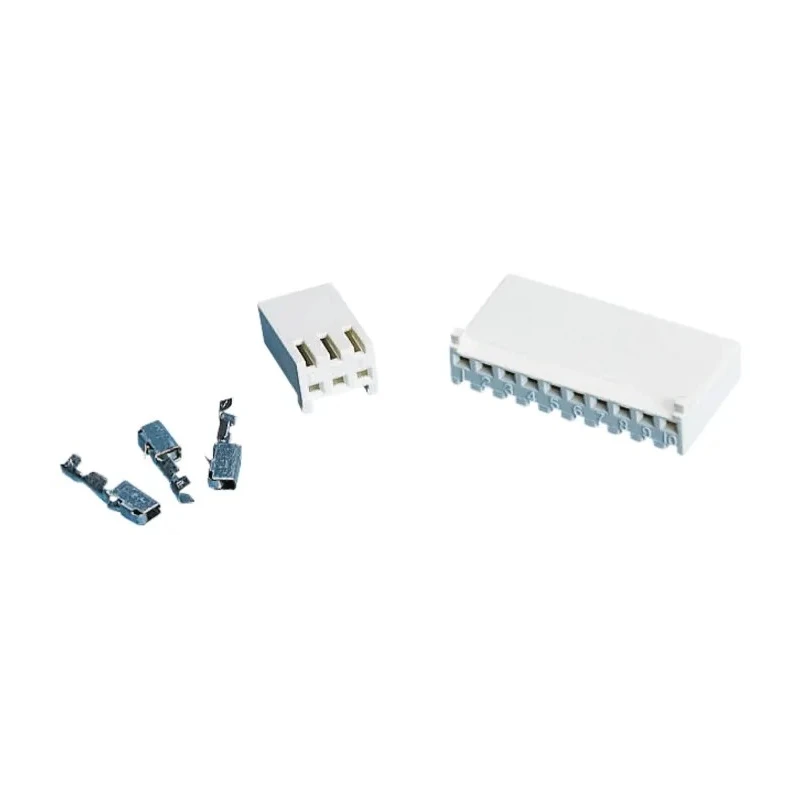

TE Connectivity Connector Housing CST-100 II Female 2.54 mm Pitch 5 Way 1 Row Straight 1375820-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 13.21mm |
| Width | 12.95mm |
| Mount Type | Cable |
| Housing Material | Polymer |
| Series | CST-100 II |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | Mates with Specified MTA .100 Headers, Similar Competitive Notched Headers & CST .100 Shrouded Headers |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- Constructed from sturdy polymer material providing durability.
- Features latching and polarizing tabs for secure mating and proper alignment.
- Compatible with MTA .100 headers and similar competitive notched headers.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Ideal for applications in medical instruments, automotive controls, and commercial printers.
- Ensures strong mating with no disconnects under vibration or shock.
- Compact dimensions with a length of 13.21 mm and width of 12.95 mm.
- Part of the CST-100 II series, providing reliable wire to board connection.
Product Description
TE Connectivity 1375820-5 Connector Housing CST-100 II is a female connector housing intended for wire to board applications with a standard 2.54 mm pitch and 5 contacts in a single row. Manufactured from robust polymer (nylon GF) materials, this housing ensures durability and long-lasting performance in demanding environments.
The connector features a latching mechanism with polarizing tabs which guarantees secure mating and alignment. It is designed for cable mounting and mates with specified MTA .100 headers, similar competitive notched headers, and CST .100 shrouded headers.
Operating temperature ranges from -55°C to 105°C, making it suitable for a variety of industrial and commercial applications such as medical instruments, automotive control systems, commercial printers, vending machines, telecommunications, and instrumentation equipment.
The compact design with dimensions of 13.21 mm length and 12.95 mm width facilitates integration into tight spaces while maintaining reliable connectivity. Strong mating ensures no disconnects under conditions of vibration or shock, assuring stable performance in critical applications.
This connector housing is part of the CST-100 II series renowned for quality and compatibility in wire to board connector solutions. Please note that this housing is not interchangeable with previous CST-100 contacts and housings.
Constructed from sturdy polymer material providing durability. Secure latching and polarization for optimal mating alignment. Compatible with MTA .100 headers and other specified headers. Wide operating temperature range from -55°C to 105°C.
Compact dimensions with 13.21 mm length and 12.95 mm width. Reliable performance under vibration and shock conditions. Suitable for medical, automotive, printing, and telecommunications industries. Part of the CST-100 II series for dependable wire to board connection solutions.
Explore the extensive range of TE Connectivity Connector Housings and components within the EnvMart catalog for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity Connector Housing CST-100 II is 2.54 mm.
This connector housing has 5 contacts in a single row.
It operates reliably in temperatures ranging from -55°C to 105°C.
The housing is constructed from robust polymer materials, specifically nylon GF.
It is compatible with specified MTA .100 headers, similar competitive notched headers, and CST .100 shrouded headers.
The connector housing has a length of 13.21 mm and a width of 12.95 mm.
This model supports cable mounting.
It is part of the CST-100 II series.
The orientation of this connector housing is straight.
It is suitable for applications in medical instruments, automotive controls, commercial printers, vending machines, telecommunications, and instrumentation equipment.
Yes, it features a latching mechanism with polarizing tabs for secure mating and proper alignment.
The connector housing is designed to ensure strong mating, preventing disconnects under conditions of vibration or shock.
