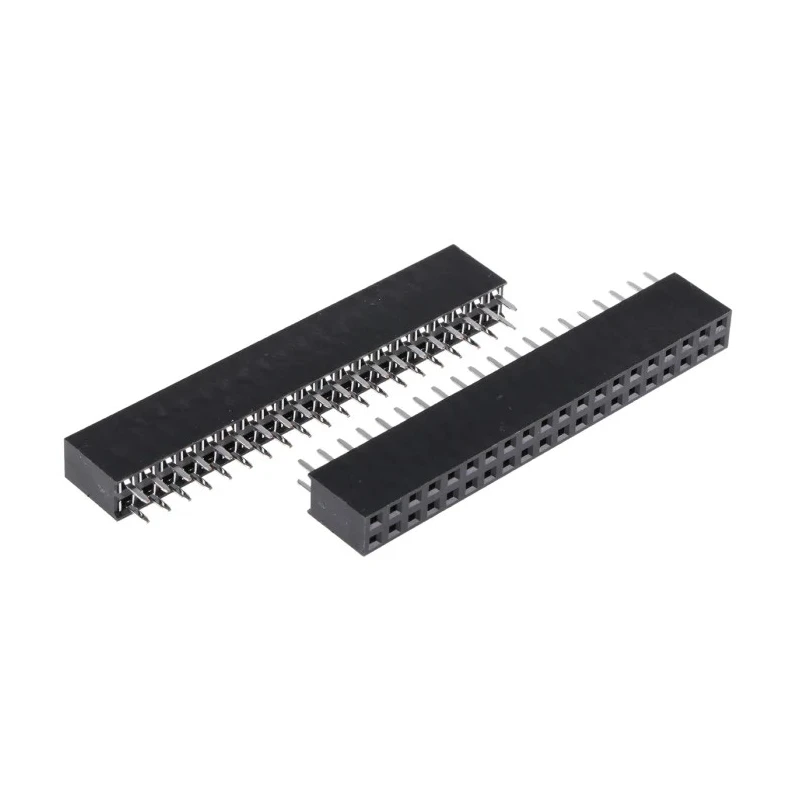

HARWIN M20 Series 40-Contact 2 Row Straight Through Hole PCB Socket 2.54 mm Pitch M20-7832046

HARWIN M20-7832046 PCB Socket features a 40-contact, 2-row straight through hole design with a 2.54 mm pitch. This connector series is optimized for board-to-board connections where space and reliability are critical.

The housing is crafted from high temperature nylon material certified to UL94V-0 specifications, allowing the socket to endure typical reflow soldering processes. Dual beam bronze contacts with tin over nickel plating enhance electrical performance and provide corrosion resistance under demanding conditions.

With a current rating of 12A per contact and an operating temperature range from -40°C to 105°C, this socket is suitable for a wide range of industrial applications. It supports up to 300 mating cycles, offering reliable long-term mechanical and electrical performance.

The M20 series sockets are widely used in consumer electronics, communications equipment, industrial monitoring systems, embedded PCs, motherboards, and large electronic assemblies. The through hole, straight orientation design facilitates straightforward solder mounting, ensuring secure mechanical and electrical connections.

These connectors comply with RoHS directives, making them suitable for environmentally sensitive applications. The compact footprint and robust build meet high-density PCB and height restriction requirements, facilitating advanced electronic system designs.

Compact 2 row design with 40 female contacts for high-density PCB connections. Constructed with nylon housing material rated UL94V-0 for high temperature resistance. Supports current up to 12A per contact ensuring reliable power handling.

Durable bronze contacts plated with tin over nickel for improved conductivity and corrosion resistance. Suitable for through hole mounting with straight orientation for easy solder connection. Operating temperature range spans from -40°C to 105°C for diverse environments.

Designed to withstand up to 300 mating cycles for extended durability. Compliant with RoHS standards ensuring environmental safety. Offers high reliability dual beam contacts for enhanced electrical connection integrity.

Ideal for industrial, consumer electronics, communications, and embedded PC applications. Explore the Electronics Components category on EnvMart to find compatible PCB Sockets and connectors suitable for varied industrial applications.
