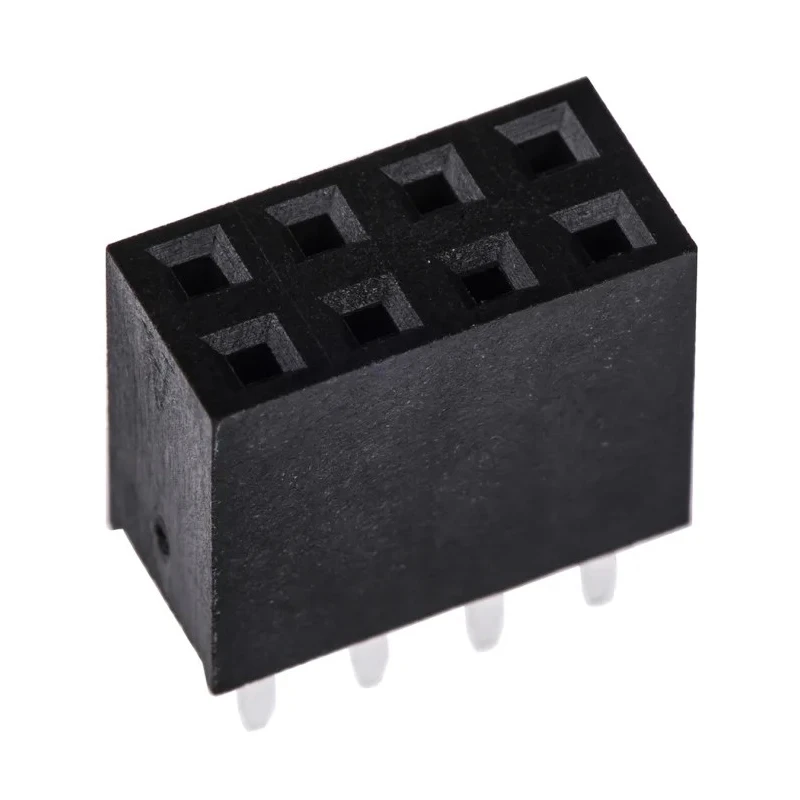

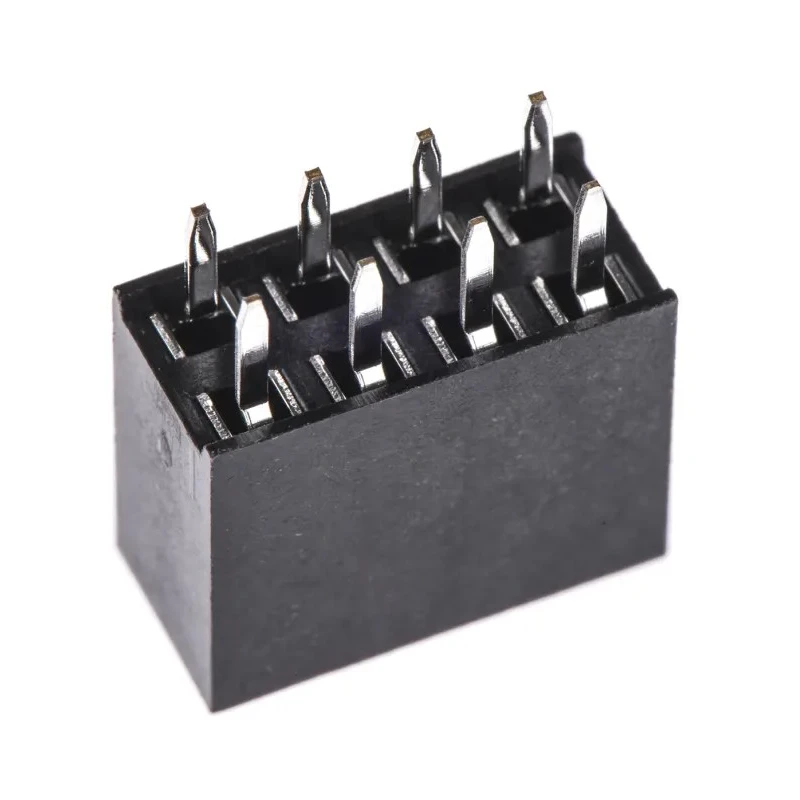

HARWIN M20 Series 8-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket M20-7830446

HARWIN M20-7830446 8-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket is a high-quality connector designed for reliable board-to-board applications. The socket uses through hole mounting with solder termination for secure assembly onto printed circuit boards.

Its housing is constructed from Nylon material resistant to high temperatures (UL94V-0 rating), making it suitable for use in environments requiring robust thermal performance. The straight orientation and compact design enable efficient space utilization and increased PCB density while adhering to industry standards.

The contacts are made of bronze and plated with tin over nickel, providing excellent corrosion resistance and electrical conductivity. Rated to carry currents up to 12A per contact, this connector supports demanding power requirements with reliability. The female dual beam contact design enhances electrical connection stability and supports up to 300 mating cycles.

Operating temperature range from -40°C to 105°C ensures suitability for harsh industrial and consumer applications. These PCB sockets are commonly used in embedded systems, motherboards, communication devices, drives and controls, industrial monitoring, and personal computing systems.

Designed by HARWIN, the M20 series meets stringent requirements for compactness and durability, making it a preferred choice for OEMs and system integrators in electronic manufacturing.

Compact design suitable for high PCB density applications. Housing made from high temperature Nylon with UL94V-0 rating. Supports board-to-board connector system with straight orientation. Current rated up to 12A per contact for reliable power delivery.

Durable bronze contacts plated with tin over nickel for corrosion resistance. Suitable operating temperature range from -40°C to 105°C. High reliability dual beam female contacts ensure consistent electrical connections.

Ideal for embedded PCs, motherboards, consumer electronics, and industrial monitoring. This product is made in China. Available in 8-contact, 2-row configuration with a 2.54 mm pitch, it delivers excellent performance in diverse electronics assembly environments.
