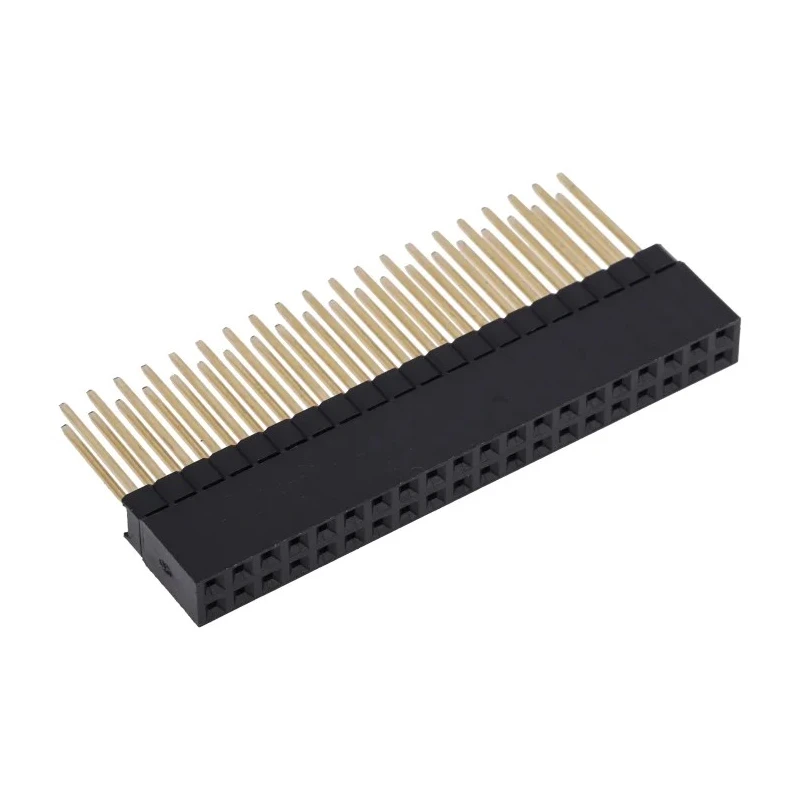

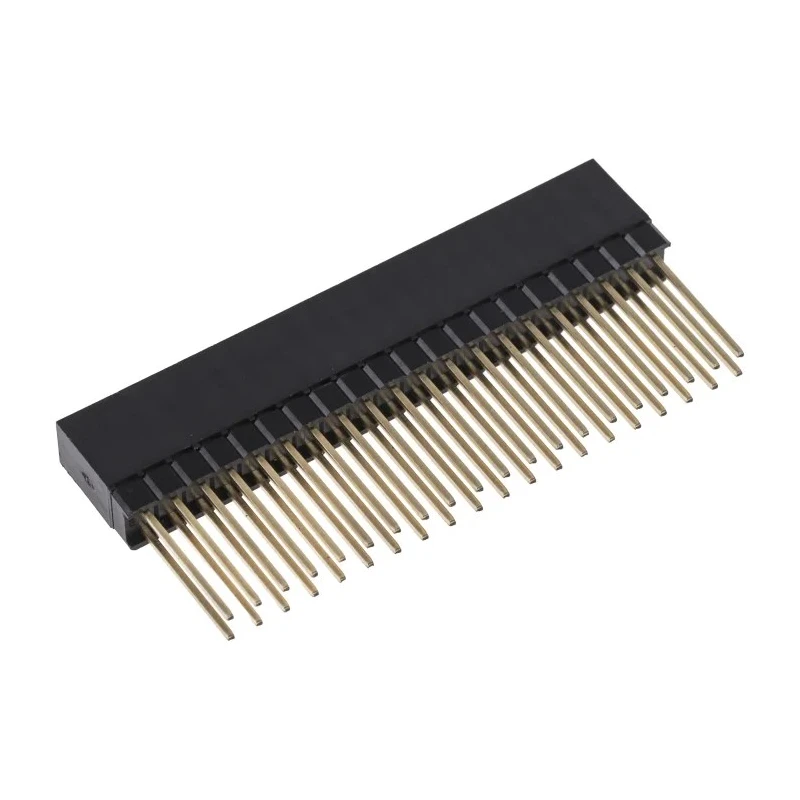

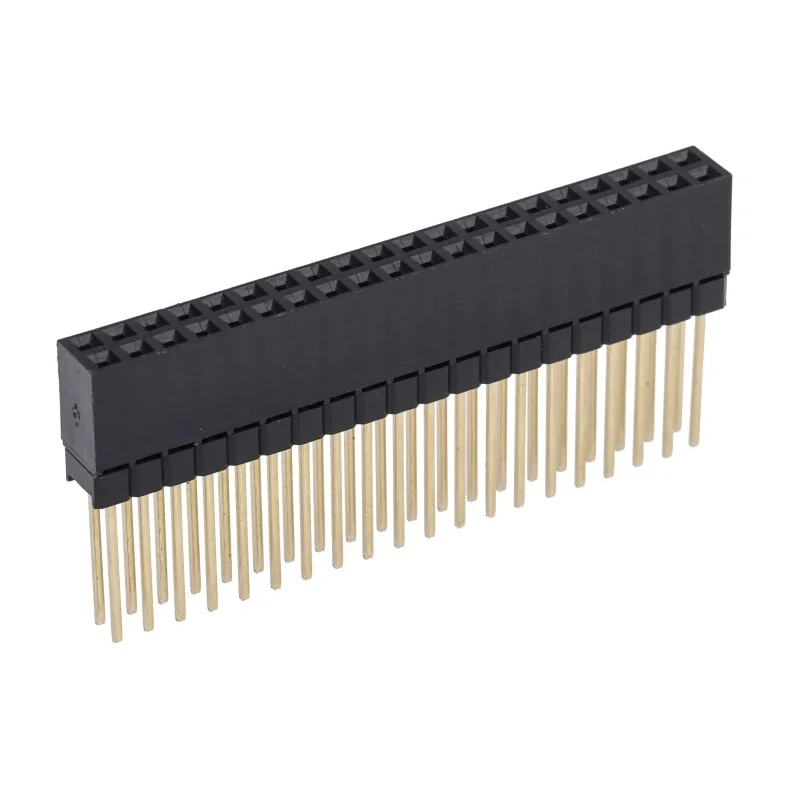

HARWIN M20 Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder M20-6102045
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-6102045 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a straight orientation with through hole mount type.
- Constructed with a nylon housing material for durability.
- Contacts are female, made of bronze with gold plating for enhanced conductivity.
- It supports a maximum current of 12A and operates between -55°C and 105°C.
- Complies with RoHS standards ensuring environmental compliance.
- The M20 series is ideal for PC/104 stackthrough connectors in industrial and electronic component assembly.
Product Description
HARWIN M20-6102045 is a high-quality PCB Socket designed for straight through-hole applications with 40 contacts arranged in 2 rows. Featuring a 2.54 mm pitch and solder termination, this socket is built for reliable board-to-board connections in various electronics manufacturing sectors.
The housing is fabricated from durable nylon, providing mechanical strength and insulation. The contacts are female, manufactured from bronze and plated with gold to ensure superior conductivity and corrosion resistance. This connector supports a current rating of 12A, making it suitable for medium-power electronics.
Operating temperature ranges from -55°C to 105°C, allowing usage in demanding industrial and commercial environments. The product complies with RoHS directives, ensuring it meets environmental safety standards.
The M20 series sockets are commonly used in PC/104 stackthrough connector applications, facilitating modular and compact electronic assemblies. The socket offers a straight orientation for through-hole mounting. Composed of nylon housing with bronze gold-plated contacts.
Supports a maximum current rating of 12A for power efficiency. Temperature performance from -55°C to 105°C to suit harsh environments. Fully compliant with RoHS regulations for environmental safety. Designed for board-to-board connector systems in electronics manufacturing.
This connector is ideal for industrial manufacturing, electronics assembly, telecommunications, and other commercial applications where reliable PCB connections are required. Explore more solutions in the PCB Socket category on EnvMart for specialized electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 12A, making it suitable for medium-power electronics applications.
It operates effectively within a temperature range of -55°C to 105°C, suitable for demanding industrial environments.
The housing is made of nylon, while the contacts are female, constructed from bronze and plated with gold for enhanced conductivity.
This socket features 40 contacts arranged in 2 rows, designed for reliable board-to-board connections.
It employs solder termination, which is standard for securing connections on printed circuit boards.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The pitch size is 2.54 mm, which is a common specification for PCB connectors.
It features a straight orientation with a through-hole mount type, suitable for easy installation on PCBs.
This socket is ideal for PC/104 stackthrough connectors in industrial and electronic component assembly.
The contacts are female, designed to connect with male counterparts in board-to-board systems.
The country of origin for this product is India.
It is designed for board-to-board connector systems, facilitating modular and compact electronic assemblies.
