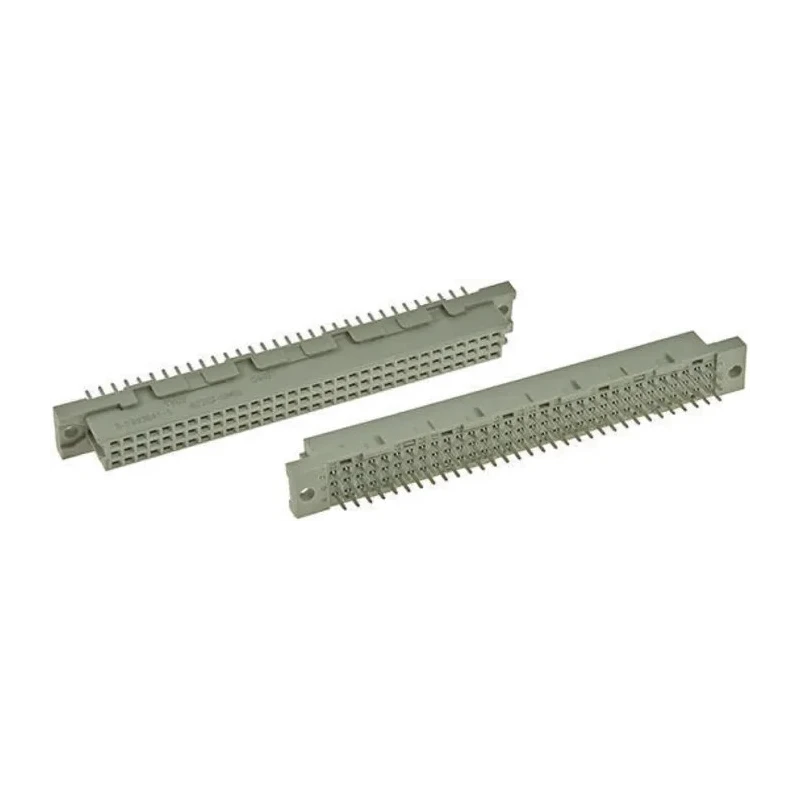

TE Connectivity Eurocard DIN 41612 Connector 64 Way 2.54 mm Pitch Through Hole 2 Row Female Type C/2 Class C2 9-1393640-3
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C |
Key Features
- Meets DIN 41612 and IEC 60603-2 industry standards.
- Features 64 contacts arranged in 2 rows for reliable signal transmission.
- Designed with a 2.54 mm pitch for precise mating.
- Through hole mount type ensures secure PCB attachment.
- Constructed with copper alloy contacts and thermoplastic housing for durability.
- Operates efficiently at currents up to 1.5A and voltages of 250V AC.
- Class C2 solder termination type for robust soldering performance.
- Wide operating temperature range from -55°C to 125°C.
Product Description
TE Connectivity 9-1393640-3 Eurocard DIN 41612 Connector 64 Way 2.54 mm Pitch is engineered to offer exceptional signal integrity and reliability for complex electronic systems. This female connector features dual rows with 64 contacts, providing high-density connectivity suitable for backplane and rack connections. The 2.54 mm pitch complies with DIN 41612 and IEC 60603-2 standards ensuring compatibility with a wide range of electronic assemblies.
The housing is manufactured from high-grade thermoplastic material that is flame retardant and includes polarizing features to prevent incorrect mating. Its through-hole mounting type facilitates durable and secure attachment to printed circuit boards. The connector carries a maximum current rating of 1.5A and supports voltages up to 250V AC, suitable for many industrial electronics and telecommunications applications.
This model employs a Class C2 solder termination for reliable electrical connections and features copper alloy contacts with a maximum contact resistance of 15 mΩ. It functions flawlessly across an operating temperature range from -55°C to 125°C, making it ideal for use in harsh and varied environments including industrial automation, futurebus systems, storage arrays, and modular rack frameworks.
Applications include integration in high-speed trains, data centers, industrial control DCS systems, telecommunications equipment, and various modular rack and backplane systems. The polarizing design and selective contact loading enhance ease of use and system performance. The connector is manufactured in Poland to meet stringent quality standards.
Meets DIN 41612 and IEC 60603-2 industry standards. Reliable two-piece design with high signal integrity. Flame retardant thermoplastic housing with polarization features. Selective contact loading and range of solder post lengths available.
Compatible with common bus systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, and VME 64X. Ideal for industrial, telecommunications, data center, and backplane interface applications. Explore the extensive selection of DIN 41612 Connectors on EnvMart for high-quality electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a maximum current rating of 1.5A.
It supports voltages up to 250V AC.
The contacts are arranged with a pitch of 2.54 mm.
This model features 64 contacts arranged in 2 rows.
It employs a Class C2 solder termination type for robust soldering performance.
The housing is made from thermoplastic, and the contacts are constructed from copper alloy.
It operates efficiently within a temperature range from -55°C to 125°C.
This connector features a through-hole mount type for secure PCB attachment.
It meets the DIN 41612 and IEC 60603-2 industry standards, as well as RoHS compliance.
It is suitable for various applications including industrial automation, telecommunications equipment, and data centers.
The maximum contact resistance is 15 mΩ.
This model is manufactured in Poland to meet stringent quality standards.
