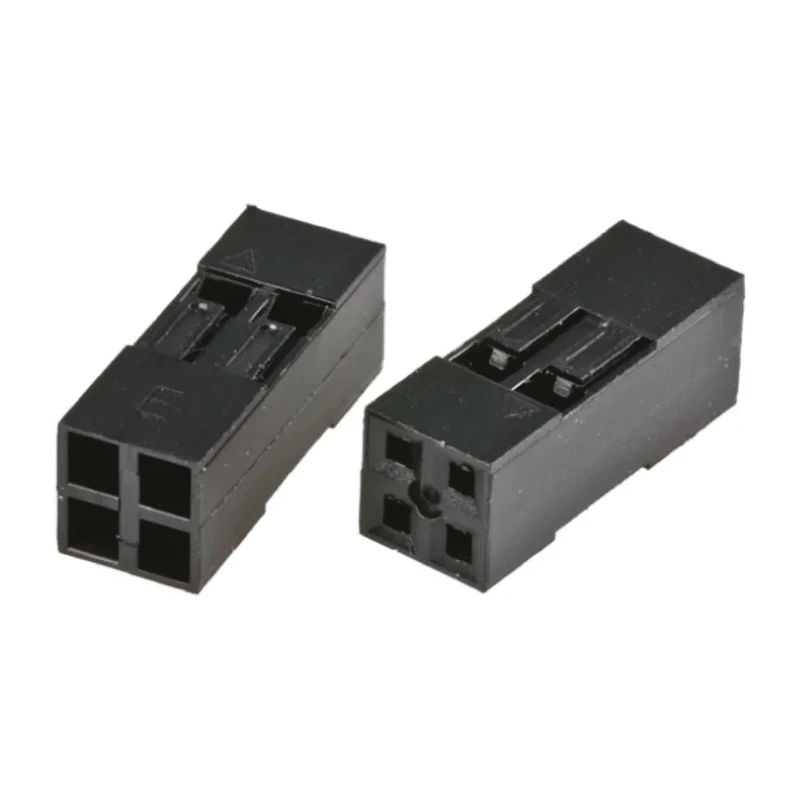

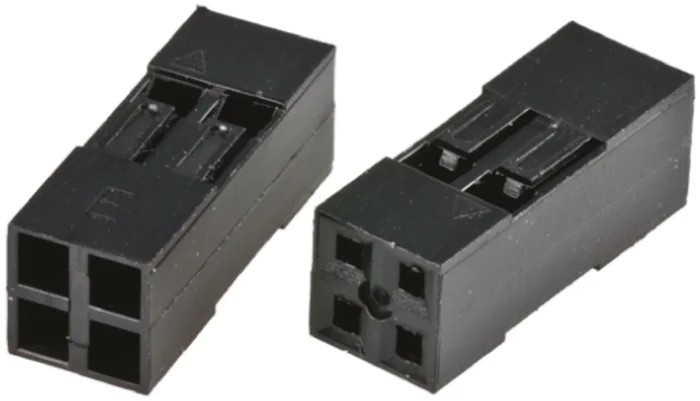

HARWIN Connector Housing Female 4 Contacts 2 Rows 2.54 mm Pitch 5.28x5.08 mm M20-1070200
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Length | 5.28mm |
| Model | M20-1070200 |
| Width | 5.08mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | M20-10 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | M20 Series Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- The housing is specifically designed for M20 series connectors for efficient cable mounting.
- Constructed using durable polyphenylene oxide for reliable electrical insulation.
- Compact size with length 5.28 mm and width 5.08 mm optimizes PCB real estate.
- Straight orientation enables easy cable assembly and integration.
- Suitable for use in electronics and electrical equipment requiring wire housing connectors.
- Meets industrial standards, although no specific approvals are indicated.
- Provides secure female contact accommodation in connector assemblies.
- Designed for tailoring reliable crimp housings with matching M20-118 contacts.
Product Description
HARWIN M20-1070200 is a high-quality female connector housing engineered for precision electronic component assembly. Featuring 4 contact positions arranged in 2 rows at a 2.54 mm pitch, this housing delivers reliable performance for cable mounting applications. Manufactured from polyphenylene oxide, it offers excellent mechanical strength and electrical insulation suitable for various industrial uses.
This connector housing measures 5.28 mm in length and 5.08 mm in width, providing a compact footprint to maximize PCB layout efficiency. The straight orientation facilitates seamless wire harness integration and assembly. It is designed to work compatibly with M20 series connectors, especially the M20-118 contact points, creating a complete modular connector system.
Ideal for applications in electronic equipment, power connections, and industrial automation, this female housing supports secure connection and durability in demanding environments. Although no formal standard approvals are specified, the robust design assures dependable operation.
The housing forms a part of versatile crimp housings used in wire-to-wire and wire-to-board connector systems. Its polyphenylene oxide material ensures resistance to heat and electrical stress in industrial usage. Compact dimensions make it suitable for dense PCB assemblies in instrumentation and control gear.
The 4 contact, 2-row configuration suits designs requiring multiple signal or power paths. The connector facilitates easy insertion and extraction within cable assemblies, optimizing maintenance and system upgrades.
Choose HARWIN Connector Housings for precision electronic component interfacing in construction, manufacturing, automation, and other industrial sectors. Browse EnvMart for a complete range of connector products to optimize your electrical and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this connector housing are arranged at a pitch of 2.54 mm.
It is constructed from polyphenylene oxide, which provides reliable electrical insulation and mechanical strength.
This housing accommodates 4 contacts arranged in 2 rows.
The connector housing measures 5.28 mm in length and 5.08 mm in width.
The orientation of this connector housing is straight, facilitating easy cable assembly.
This housing is designed for use with the M20 series connectors.
It supports cable mounting, allowing for efficient integration into wire harnesses.
No specific standard approvals or certifications are indicated for this connector housing.
It is suitable for applications in electronic equipment, power connections, and industrial automation.
The connector housing features 2 rows for contact arrangement.
Yes, it is part of versatile crimp housings used in wire-to-wire and wire-to-board connector systems.
The connector housing is manufactured in India.
