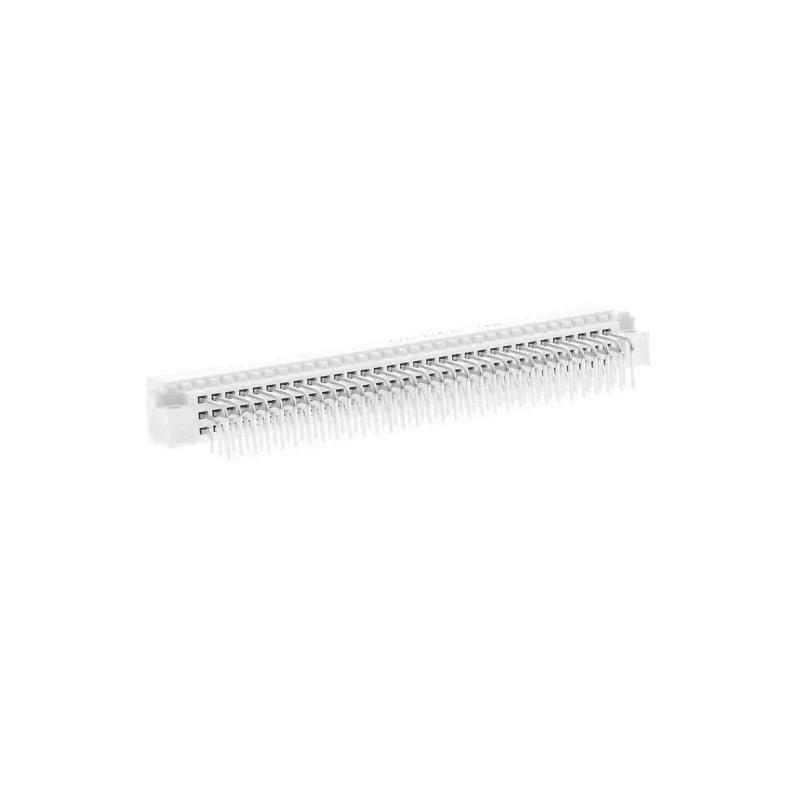

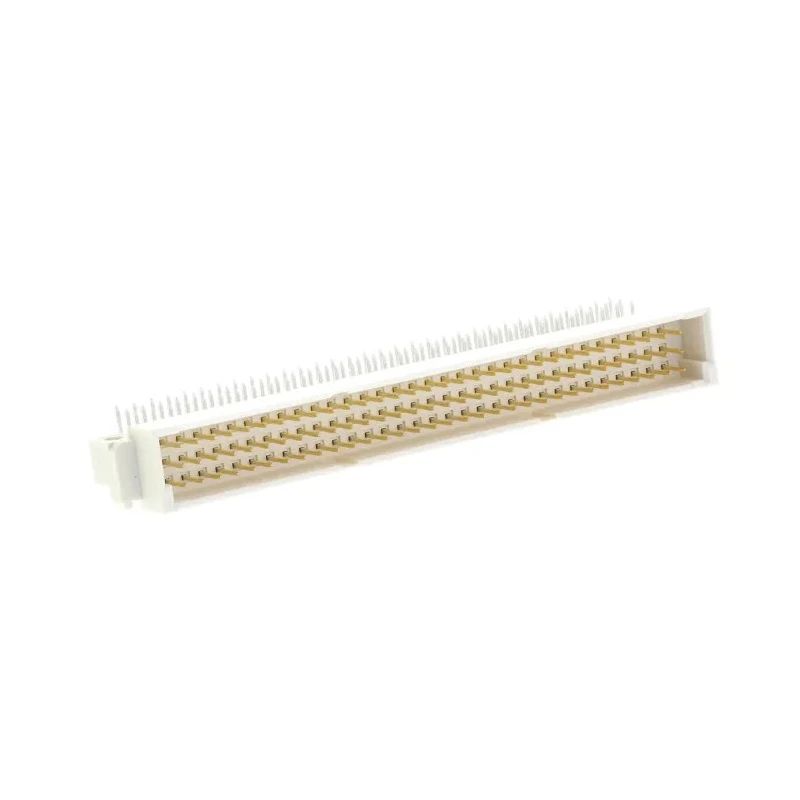

TE Connectivity Eurocard 96 Way 2.54 mm Pitch DIN 41612 Connector Male, Through Hole, Type C/2, Class C2, 3 Row 5650473-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Row Loading | A/B/C |
Key Features
- This connector features a 3 row design ensuring high contact density.
- Operates reliably at voltages up to 250V and currents up to 1.5A.
- Constructed with a copper alloy contact material plated with tin for durability and corrosion resistance.
- Housing is made from flame retardant polymer ensuring safety and longevity.
- Designed to meet DIN 41612 and IEC 60603-2 standards for performance and interoperability.
- Solder termination and class C2 solder post length ensure secure PCB attachment.
- Supports operating temperatures ranging from -55°C to 105°C for broad environmental compatibility.
- Features polarization and optional boardlocks to prevent mis-mating and ensure secure retention.
Product Description
TE Connectivity 5650473-5 Eurocard DIN 41612 Connector is a 96 way, 3 row, male type connector with a 2.54 mm pitch suitable for electronic and industrial applications requiring high signal integrity and reliable connections.
It features a through hole mount with Class C2 solder posts designed for stable PCB soldering. The contact material is made of copper alloy and plated with tin to ensure excellent electrical conductivity and corrosion resistance. The housing is constructed from a flame retardant polymer material, enhancing safety and durability in demanding environments.
Designed to meet DIN 41612 and IEC 60603-2 international standards, this connector supports operating voltages up to 250V and currents of 1.5A, withstanding operating temperatures from -55°C to 105°C. Its right-angle orientation and polarization features help prevent mis-mating, making it suitable for complex backplane and rack connector systems.
The Eurocard connector series is commonly used in industrial control systems, telecommunications equipment, data centers, storage systems, servers, and switch assemblies. Applications include use in STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, NUBUS, VXi Bus, and VME 64X systems.
This connector offers high-quality design and reliable two-piece construction for excellent signal integrity. Selective contact loading options and various solder post lengths provide flexibility for circuit designs. Flame retardant housings ensure regulatory compliance and safety in industrial environments.
Polarizing features and boardlock options secure the connector to the PCB, preventing accidental disconnection. Connector termination by solder makes it suitable for robust and permanent installations.
Overall, the TE Connectivity 5650473-5 DIN 41612 Eurocard connector is a trusted component for demanding electronic applications requiring dense contact arrangements with secure mechanical and electrical characteristics.
Explore more DIN 41612 Connectors and related electronic components at EnvMart for industrial and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates reliably at voltages up to 250V and currents up to 1.5A.
The connector features a pitch of 2.54 mm.
It supports operating temperatures ranging from -55°C to 105°C.
This model uses solder termination for secure PCB attachment.
It has a total of 96 contacts.
The contact material is copper alloy plated with tin, and the housing is made from flame retardant polymer.
Yes, it is designed to meet DIN 41612 and IEC 60603-2 standards, and is RoHS compliant.
The connector is designed with a right-angle orientation.
Yes, it includes polarization features and optional boardlocks to prevent mis-mating and ensure secure retention.
It is commonly used in industrial control systems, telecommunications equipment, data centers, and various bus systems such as STE Bus and VME 64X.
This model features a 3 row design, enhancing contact density.
The connector is manufactured in India.
