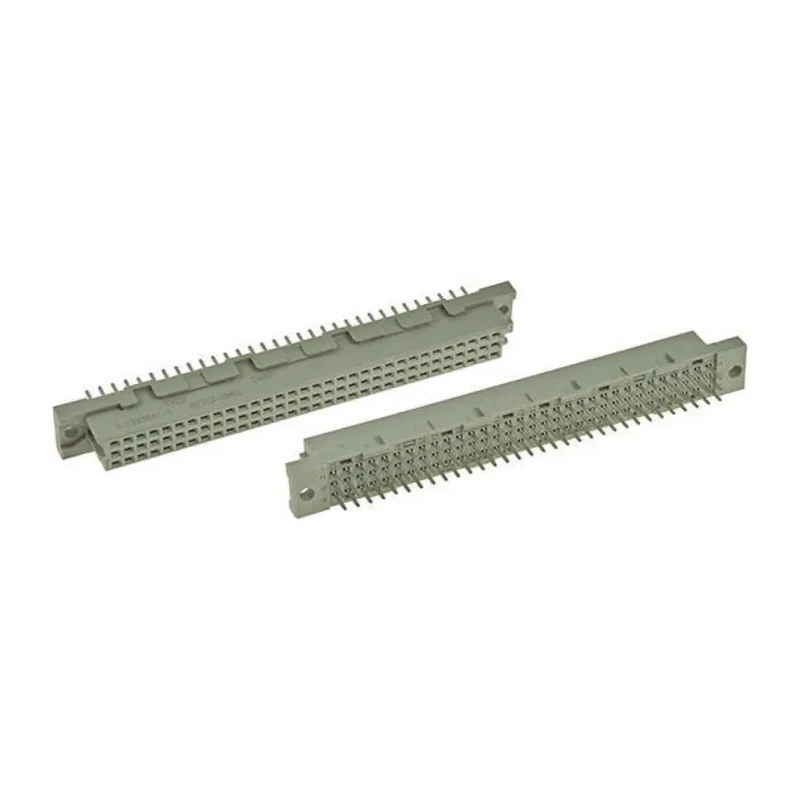

TE Connectivity Eurocard 48 Way DIN 41612 Connector 2.54 mm Pitch Through Hole Male 3 Row Type C/2 Solder Class C2 5650479-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Row Loading | A/B/C |
Key Features
- This connector features a 2.54 mm pitch and through hole mounting for secure PCB attachment.
- Constructed with a polymer housing and copper alloy contacts plated with tin for reliable connectivity.
- Class C2 solder type ensures robust termination with flame retardant housings for safety.
- Operates reliably in temperatures from -55°C to 105°C for diverse industrial environments.
- Meets DIN 41612 and IEC 60603-2 standards for quality and performance.
- Compatible with common bus systems like STE Bus, FUTUREBUS, VME and others in industrial and communications equipment.
- Polarizing features prevent mis-mating, enhancing connection reliability.
- Available with various solder post lengths and contact tail styles suited to application requirements.
Product Description
TE Connectivity model 5650479-5 is a Eurocard 48 way DIN 41612 male connector designed for industrial and electronic assemblies. It features a 2.54 mm pitch and a 3-row arrangement with type C/2 solder termination in a Class C2 solder class.
The connector is built with a robust polymer housing that is flame retardant and copper alloy contacts plated with tin to ensure durable, high integrity electrical connections. It operates at a voltage rating of 250V and current rating of 1.5A, making it suitable for a variety of industrial and communication system applications.
This connector meets DIN 41612 and IEC 60603-2 standards, guaranteeing compatibility and quality. It is commonly used in backplane and rack connectors for systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, NUBUS, VXi Bus, and VME 64X, making it ideal for high-speed trains, industrial control systems, data centers, telecommunication equipment, and modular racks.
The housing includes polarizing features to avoid mis-mating and versions can include boardlocks for secure PCB retention. The solder posts come in different lengths, and contact tails include ACTION PIN and eye of needle styles, providing flexibility for assembly needs.
This connector features a 2.54 mm pitch and through hole mounting for secure PCB attachment. Constructed with a polymer housing and copper alloy contacts plated with tin for reliable connectivity. Class C2 solder type ensures robust termination with flame retardant housings for safety.
Operates reliably in temperatures from -55°C to 105°C for diverse industrial environments. Meets DIN 41612 and IEC 60603-2 standards for quality and performance. Compatible with common bus systems like STE Bus, FUTUREBUS, VME and others in industrial and communications equipment.
Polarizing features prevent mis-mating, enhancing connection reliability. Available with various solder post lengths and contact tail styles suited to application requirements. This product is an essential component for industrial, telecommunications, manufacturing, and data center rack systems, ensuring secure and reliable backplane connections.
Explore the extensive range of DIN 41612 Connectors at EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 250V and a current rating of 1.5A, making it suitable for various industrial applications.
This connector features a 2.54 mm pitch and includes 48 contacts arranged in 3 rows.
The housing is made of polymer, while the contacts are constructed from copper alloy and plated with tin.
It operates reliably within a temperature range of -55°C to 105°C, suitable for diverse industrial environments.
This model uses a C/2 solder termination type, ensuring robust connections.
It meets DIN 41612 and IEC 60603-2 standards, ensuring compatibility and quality for various applications.
The connector includes polarizing features designed to avoid mis-mating, enhancing connection reliability.
Yes, it is commonly used in telecommunications equipment, as well as in industrial control systems and data centers.
This connector is designed for through hole mounting, which allows for secure PCB attachment.
Yes, it offers various contact tail styles, including ACTION PIN and eye of needle styles, to suit different assembly needs.
The connector is manufactured in India, ensuring compliance with relevant standards.
It is typically used in backplane and rack connectors for systems like STE Bus, FUTUREBUS, and VME, among others.
