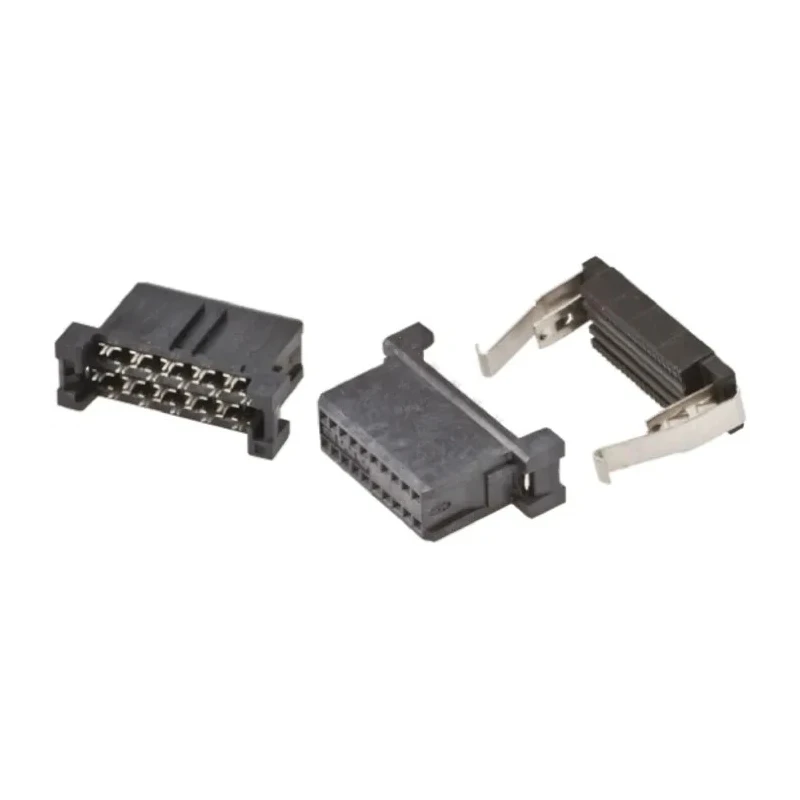

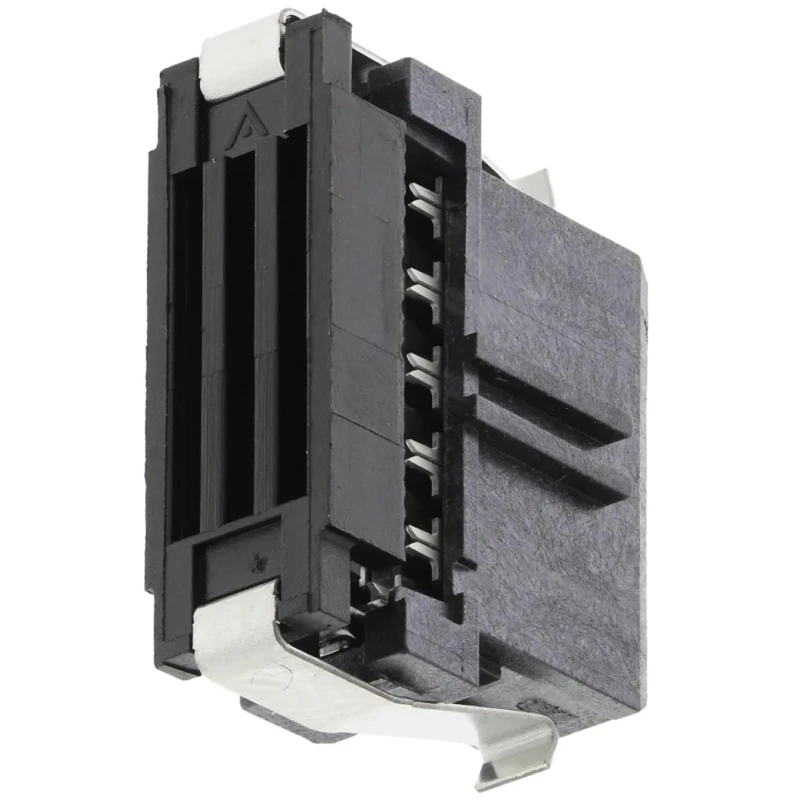

TE Connectivity 20-Way IDC Connector Female for Cable 2 Row 30V AC 500mA AMP-LATCH System 50 1-111196-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | AMP-LATCH System 50 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- This connector has 20 contacts arranged in 2 rows with 1.27mm pitch.
- It supports a current rating of 500mA and voltage up to 30V AC.
- Gold over nickel plating ensures high electrical performance and corrosion resistance.
- The connector is shrouded with an integral positive locking latch for secure mating.
- It is designed for straight orientation and cable mount type with IDC termination.
- The operating temperature range is from -65°C to 105°C, suitable for demanding environments.
- Housing is made of durable liquid crystal polymer for mechanical strength.
- Ideal for factory automation, telecommunications, medical equipment, servers, and automotive controls.
Product Description
TE Connectivity 1-111196-8 IDC Connector Female 20-Way 2 Row is designed for robust, compact, and high-density ribbon cable termination applications. This AMP-LATCH System 50 connector system provides reliable connections for 0.05 mm² solid or stranded and 0.03 mm² stranded ribbon cables, featuring a 1.27mm pitch and 20 contacts arranged in 2 rows.
The connector includes gold-plated copper contacts over nickel to ensure superior electrical conductivity and resistance to corrosion. The housing, molded from liquid crystal polymer, delivers high mechanical durability and thermal stability. Its operating range spans from -65°C minimum to 105°C maximum operating temperature, making it suitable for harsh industrial and commercial environments.
This female IDC Connector has an integral positive locking latch, which reduces PCB space requirements and enhances connection security. The polarization bars on the housing prevent mismating, ensuring installation accuracy. Its straight orientation and cable mount make it compatible with multiple applications.
These connectors are widely used in factory automation, telecommunications equipment, medical instrumentation, servers, test and measurement devices, storage systems, automotive control units, and gaming equipment, where compact, reliable interconnect solutions are necessary.
This connector features a compact and high-density design. Preassembled housing and cover support quick and secure termination. IDC termination enables tool-free one-step cable assembly. Integral positive locking latches provide secure connections.
Polarization bars prevent incorrect mating. Gold plated contacts ensure high electrical performance and reliability. Designed for use with 1.27mm pitch ribbon cables. Operating temperature range from -65°C to +105°C guarantees durability.
Discover a broad range of TE Connectivity products and similar high-quality connectors at EnvMart to meet your electronics and industrial interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 500mA.
It can handle a voltage of up to 30V AC.
The housing is made of liquid crystal polymer, and the contacts are made of copper with gold over nickel plating.
The operating temperature range is from -65°C to 105°C.
This IDC connector has 20 contacts arranged in 2 rows.
It employs IDC (Insulation Displacement Connector) termination, allowing for tool-free one-step cable assembly.
The pitch of the contacts is 1.27mm.
Yes, it is designed for straight orientation.
It is suitable for factory automation, telecommunications, medical equipment, servers, and automotive controls.
Yes, it includes an integral positive locking latch for secure mating.
This connector is a female connector.
The country of origin for this connector is India.
