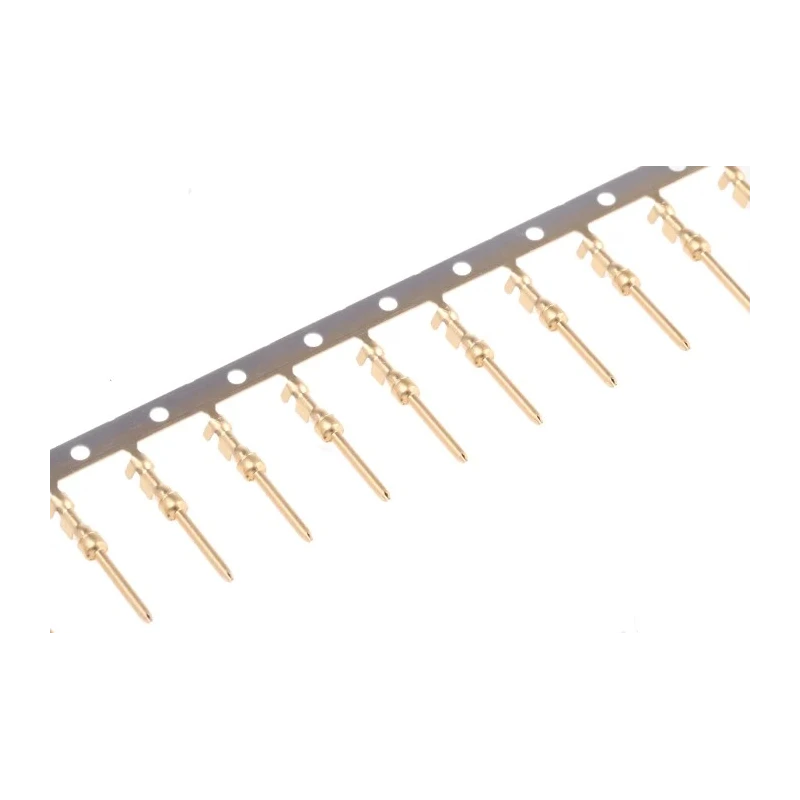

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 24 AWG 66506-3

TE Connectivity 66506-3 AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact is engineered for demanding industrial and electronic environments requiring reliable signal connections. This contact type is tailored for the AMPLIMITE HDP-20 series D-Sub connectors, widely used in power connectors, electronic control systems, instrumentation, and telecommunications.

The size 20DF contacts feature a 1.02 mm gold over nickel plated brass pin, providing robust corrosion resistance and excellent electrical conductivity. The contacts accommodate stranded wires from 24 AWG with cross-sectional areas ranging from 0.2 to 0.6 mm².

Rated for currents up to 2 amperes, the contact ensures stable low-resistance signal pathways with a maximum contact resistance of 15 milliohms. The 14.61 mm length and precise pin diameter support secure insertion and stable mechanical retention within the HDP-20 connector shells.

Termination of wires is achieved via crimping, guaranteeing reliable electrical and mechanical connections. For ease of installation and maintenance, TE Connectivity offers compatible tools including crimp tools (part number 446-816) and insertion/extraction tools (part number 446-822).

This product is ideal for use in industrial automation, manufacturing, electronic instrumentation, and telecommunications where dependable D-Sub connectivity is critical. Standard compliance and robust material construction ensure dependable performance even in harsh environments.

The contact size is 20DF, suitable for AMPLIMITE D-Sub connectors. Gold over nickel plating for corrosion resistance and conductivity. Brass construction for durability and electrical performance. Supports wire sizes 24 AWG (0.2 to 0.6 mm²) with 2A current rating.

Length: 14.61 mm; pin diameter: 1.02 mm. Crimp termination type for strong wire retention. Maximum contact resistance of 15 milliohms. Compatible with TE Connectivity crimp and extraction tools.
