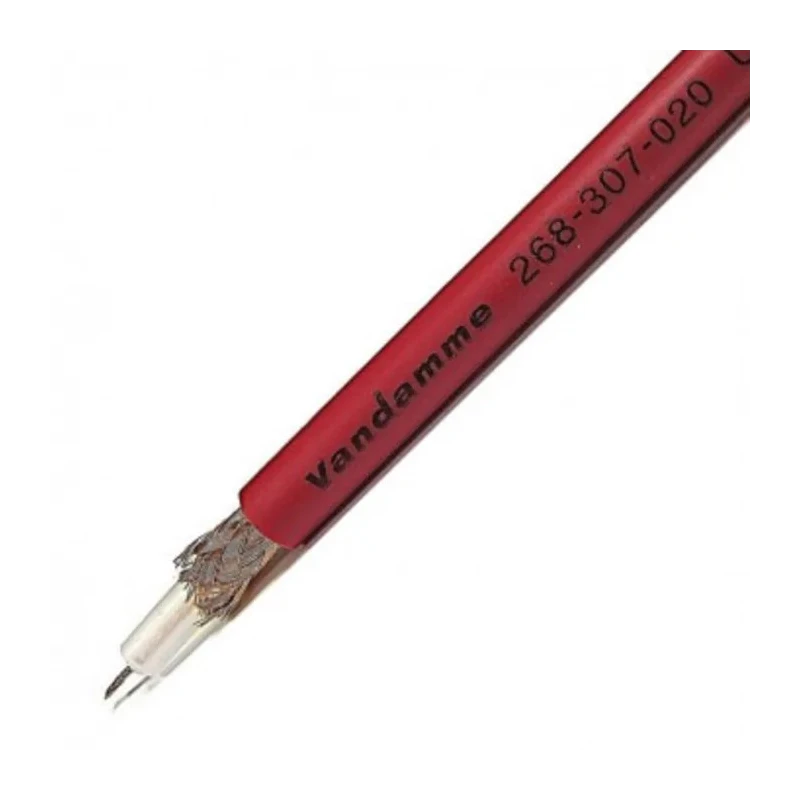

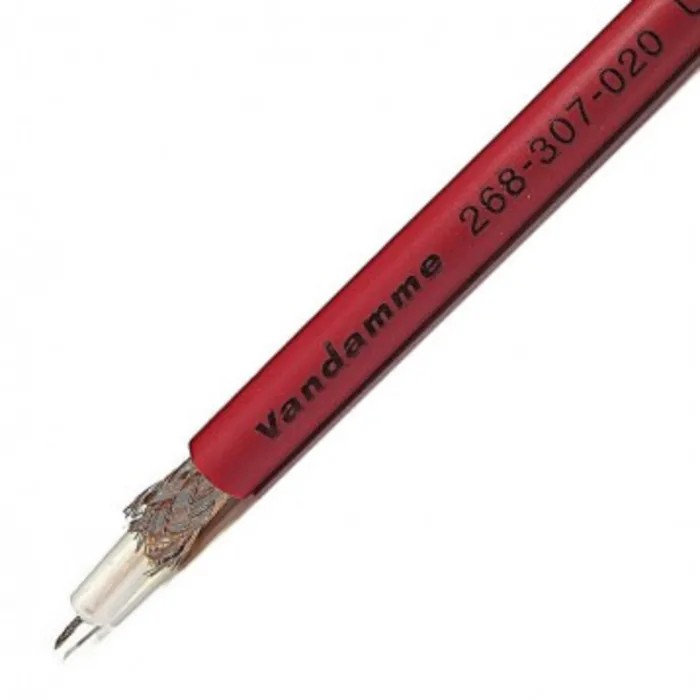

Van Damme Standard 75 Series RG59 Coaxial SDI Cable 500 m, 75 Ω, 7000 V, Unterminated, Polyvinyl Chloride Jacket RG59

Free Delivery in India | Lowest Global Shipping Charges

Van Damme Standard 75 Series RG59 Coaxial SDI Cable 500 m, 75 Ω, 7000 V, Unterminated, Polyvinyl Chloride Jacket RG59

Name: Van Damme Standard 75 Series RG59 Coaxial SDI Cable 500 m, 75 Ω, 7000 V, Unterminated, Polyvinyl Chloride Jacket RG59
Brand: Van Damme
SKU: 172980
Price: 376.77 USD
Availability: InStock



Category Coaxial Cable Brand Van Damme Condition New

Specifications

Country of Origin	Italy
Voltage	7000V
Brand	Van Damme
Model	RG59
Cable Length	500m
Series	Standard 75
Outside diameter	6.15mm
Maximum Operating Temperature	70°C
Conductor Material	Bare Copper
Minimum Operating Temperature	-25°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	SMPTE 259
Characteristic Impedance	75Ω
Fire Behaviour	Heat Shock Test 150°C x 1 hour, No cracks
American Wire Gauge	7AWG
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.2mm
Size of Strands	0.2mm
Terminated/Unterminated	Unterminated
Coaxial Type	RG59

Key Features

Highly flexible yet rugged cable construction ideal for serial digital video transmission.
Unterminated 500-meter cable length suitable for extended setups.
Characteristic impedance of 75 Ω ensuring optimal signal quality.
Outer diameter of 6.15 mm with a durable Polyvinyl Chloride jacket.
Conductor made of stranded bare copper with 7 strands of 0.2 mm size for enhanced conductivity.
Operating temperature range from -25°C to 70°C to withstand varying environments.
Fire behavior tested for heat shock at 150°C for 1 hour with no cracks.

Product Description

Van Damme RG59 Coaxial SDI Cable 500 m, model RG59, is part of the Standard 75 Series, crafted to meet the demanding standards of professional audio recording and broadcasting industries. This unterminated coaxial cable offers a characteristic impedance of 75 Ω and a high voltage rating of 7000 V, ensuring reliable signal transmission over extended distances.

The cable is designed with a stranded bare copper conductor composed of 7 strands of 0.2 mm diameter each, providing excellent conductivity and flexibility. The outer jacket is made of Polyvinyl Chloride (PVC), delivering robust protection while maintaining flexibility even under sub-zero temperatures down to -25°C, and withstanding maximum operating temperatures up to 70°C.

Van Damme's commitment to quality is evident as this cable undergoes rigorous heat shock testing at 150°C for one hour with no cracks, assuring durability and fire safety compliance. It complies with SMPTE 259 standards suitable for serial digital interface (SDI) applications.

This cable is ideal for industrial, broadcasting, audio-visual, and professional video production environments requiring highly flexible yet resilient coaxial cables for signal integrity.

Highly flexible yet rugged cable construction ideal for serial digital video transmission. Unterminated 500-meter cable length suitable for extended setups. Characteristic impedance of 75 Ω ensuring optimal signal quality.

Voltage rating up to 7000 V for reliable electrical performance. Outer diameter of 6.15 mm with a durable Polyvinyl Chloride jacket. Conductor made of stranded bare copper with 7 strands of 0.2 mm size for enhanced conductivity.

Operating temperature range from -25°C to 70°C to withstand varying environments. Fire behavior tested for heat shock at 150°C for 1 hour with no cracks.

Choose Van Damme Standard 75 Series RG59 Coaxial Cable for professional and industrial-grade quality and reliability in signal transmission. Browse more cables and wires categories at EnvMart for related products.
