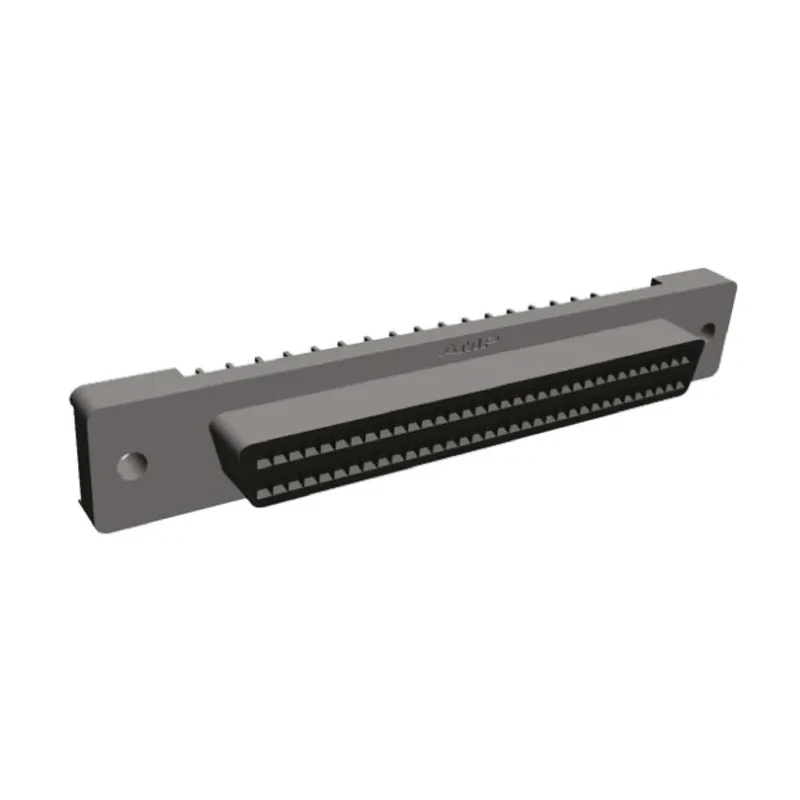

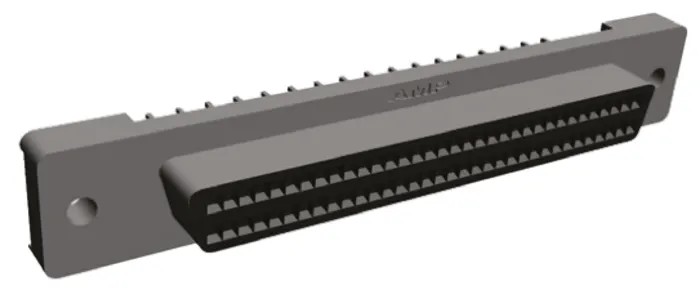

TE Connectivity AMPLIMITE .050 III 68 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector Female 5749070-7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE .050 III |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 68 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- This AMPLIMITE .050 III series connector features a compact, high-density design with 68 contacts.
- It provides full shielding for excellent EMI and RFI protection.
- The thermoplastic housing is suitable for high-temperature reflow soldering processes.
- Constructed with phosphor bronze contacts plated with gold over nickel for durability and conductivity.
- Designed for reliable solder termination and female connector gender.
- Operates within a voltage rating of 30V and current rating of 1A.
- Suitable for demanding applications in telecommunications, industrial, military, medical, and consumer electronics.
- Operating temperature range from -55°C to 105°C ensures robust performance in various environments.
Product Description
TE Connectivity 5749070-7 AMPLIMITE .050 III 68 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector Female is a high-density, compact connector designed for reliable PCB mounting and signal integrity.
The connector features a straight orientation and a through hole mounting type that ensures secure assembly on circuit boards. Its housing is made of high-temperature thermoplastic material compatible with surface mount reflow solder processes, making it ideal for automated manufacturing.
Phosphor bronze contacts plated with gold over nickel provide excellent conductivity and corrosion resistance. The connector supports a current of 1A and voltage rating of 30V, making it suitable for low power applications requiring high reliability.
This full-shielded receptacle offers superior EMI/RFI protection, enhancing signal integrity in challenging electrical environments. The connector does not carry specific industry approvals but meets high-quality engineering standards consistent with TE Connectivity's AMPLIMITE series.
Its applications span consumer electronics, telecommunications equipment, local area network hardware, industrial machinery, medical instrumentation, and military electronics. The robust design and operating temperature range from -55° to 105°C allow it to perform in harsh environments.
This AMPLIMITE .050 III series connector features a compact, high-density design with 68 contacts. Provides full shielding for excellent EMI and RFI protection. Thermoplastic housing supports high-temperature reflow solder process.
Phosphor bronze contacts plated with gold over nickel ensure durability and conductivity. Solder termination and female connector gender suited for PCB mounting. Voltage rating of 30V and current rating of 1A for low power applications.
Operating temperature range from -55°C to 105°C for reliable performance. Ideal for telecommunications, industrial, military, medical, and consumer electronics. Explore more TE Connectivity connectors and AMPLIMITE series components at EnvMart for your industrial, manufacturing, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 30V and a current rating of 1A, making it suitable for low power applications.
The operating temperature range for this connector is from -55°C to 105°C, allowing it to perform reliably in various environments.
It features 68 contacts, providing a high-density connection for various applications.
The housing is made of thermoplastic, while the contacts are constructed from phosphor bronze and plated with gold over nickel for enhanced conductivity and corrosion resistance.
This unit uses solder termination, which is suitable for reliable PCB mounting.
The pitch size of the contacts is 2.54 mm, which is standard for many electronic applications.
It supports through hole mounting, ensuring secure assembly on circuit boards.
Yes, it features full shielding that provides excellent EMI and RFI protection, enhancing signal integrity in challenging environments.
This connector is suitable for a variety of applications including telecommunications, industrial machinery, military electronics, medical instrumentation, and consumer electronics.
The connector has a straight orientation, which is designed for reliable PCB mounting.
The country of origin for this connector is India.
This model features a female connector gender, suitable for various applications requiring female connections.
