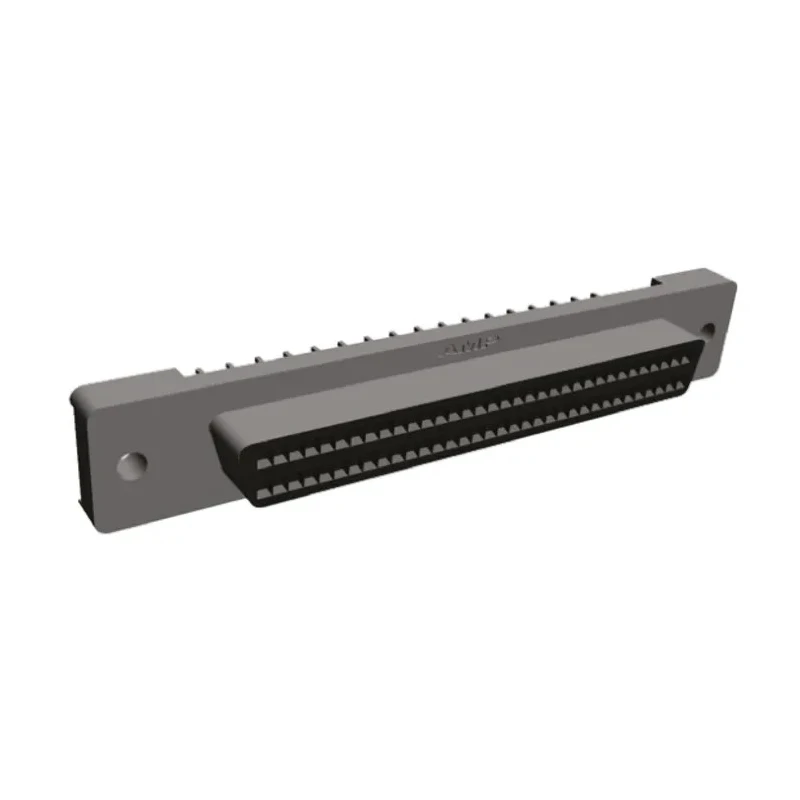

TE Connectivity AMPLIMITE .050 III 68 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector Female 5749070-7

TE Connectivity 5749070-7 AMPLIMITE .050 III 68 Way Straight 2.54 mm Pitch Through Hole D-Sub Connector Female is a high-density PCB mount connector designed for reliable signal transmission in complex electronics systems.

This D-Sub connector features 68 contacts with a compact .050 inch Series III AMPLIMITE design, optimized for space-saving and durability. The connector’s thermoplastic housing withstands high temperatures, enabling compatibility with surface mount reflow soldering processes.

The contacts are made from phosphor bronze and plated with gold over nickel, enhancing corrosion resistance and ensuring consistent electrical performance under harsh conditions.

The straight, through hole mount type provides secure attachment to printed circuit boards, reinforced by integral board locks that also provide grounding to reduce signal noise and improve system integrity.

Full shielding offers excellent protection against electromagnetic and radio frequency interference, making this connector suitable for demanding applications in consumer electronics, telecommunications networks, local area networks, military equipment, industrial instrumentation, and medical devices.

Designed with 68 contacts and a 2.54 mm pitch for high density connections. Features a straight orientation and through hole mount type ensuring secure PCB installation. Gold over nickel plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.

Thermoplastic housing material supports high temperature reflow solder processes. Supports a voltage rating of 30V and a current rating of 1A suitable for low power signal applications. Operates reliably over a temperature range from -55°C to 105°C.

Includes integral board locks for secure mechanical connection and grounding. Offers full shielding to minimize EMI/RFI interference in sensitive applications. Compatible with consumer electronics, telecommunications, industrial, and medical equipment applications.

These connectors adhere to AMPLIMITE .050 Series III standards and are often specified where robust, shielded, and space-saving PCB board connectors are required. Their design is also compliant with SCSI-2, SCSI-3, EIA RS-232 protocols and other industrial standards.
