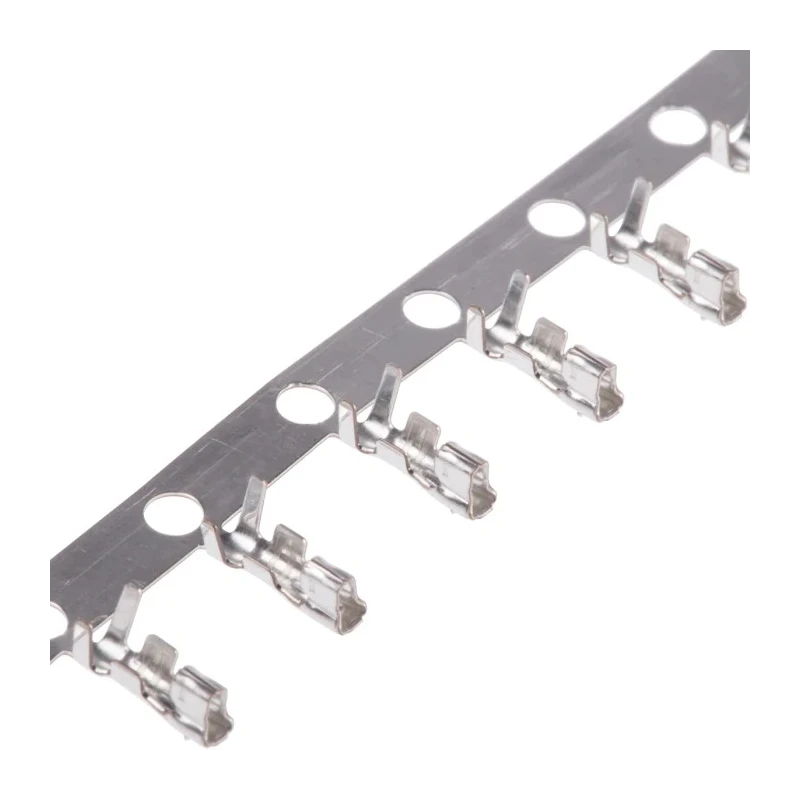

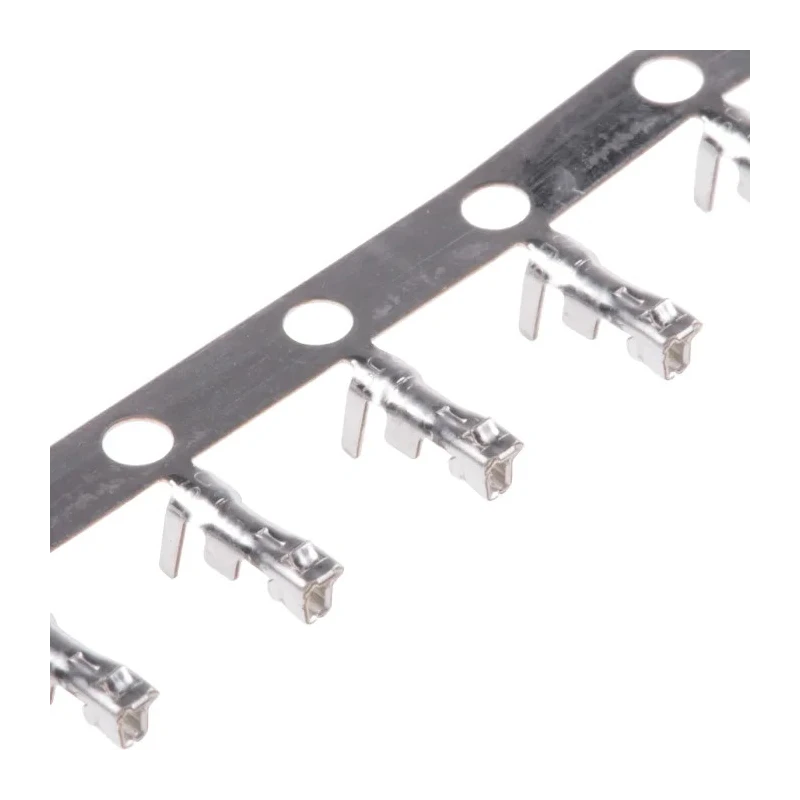

JST EH Series Female Crimp Terminal 3A Current 30 AWG Min Crimp 22 AWG Max SEH-001T-P0.6

JST SEH-001T-P0.6 Female Crimp Terminal is a precision-engineered crimp contact designed specifically for JST EH series 2.5 mm pitch connectors. Rated for a current of 3 amperes, this female terminal accommodates wire sizes from a minimum of 30 AWG (0.05 mm²) up to a maximum of 22 AWG (0.3 mm²). The contact is made from tin-plated phosphor bronze material, delivering excellent conductivity and corrosion resistance suitable for industrial and electronic assembly applications.

Featuring a compact and slim form factor, when mounted in the connector housing, the contact measures only 8.1 mm in height and 3.8 mm in width. Its crimp termination ensures a robust and vibration-resistant connection, ideal for environments experiencing movement or mechanical stress.

The terminal maintains a low contact resistance with an initial maximum of 10 milliohms and provides a high insulation resistance of at least 1,000 megaohms, ensuring reliable electrical performance. It operates effectively across a temperature range from -25°C to 85°C, making it suitable for diverse industrial and electronic use cases.

Designed for use with PCB thicknesses ranging from 0.8 mm to 1.6 mm, this crimp terminal supports efficient and reliable PCB connector assemblies. It is widely used in electronic manufacturing, automotive wiring harnesses, telecommunications, and other industrial automation applications requiring durable and compact contacts.

Compatible with JST EH series 2.5mm pitch connectors for precise PCB interfacing. Tin-plated phosphor bronze contact material ensures conductivity and durability. Vibration-resistant crimp termination supports reliable electrical connections.

Wide operational temperature range from -25°C to 85°C suits industrial environments. Low contact resistance and high insulation resistance enhance signal integrity. Accommodates wire sizes from 30 AWG to 22 AWG for flexible wiring options.

Designed for PCBs with thickness between 0.8 mm and 1.6 mm.

This JST EH Series Female Crimp Terminal SEH-001T-P0.6 is a critical component in precision electronic assemblies and industrial automation systems. For further selection of connectors and accessories compatible with this terminal, explore EnvMart’s extensive catalog of JST connector components and related industrial electronics.
