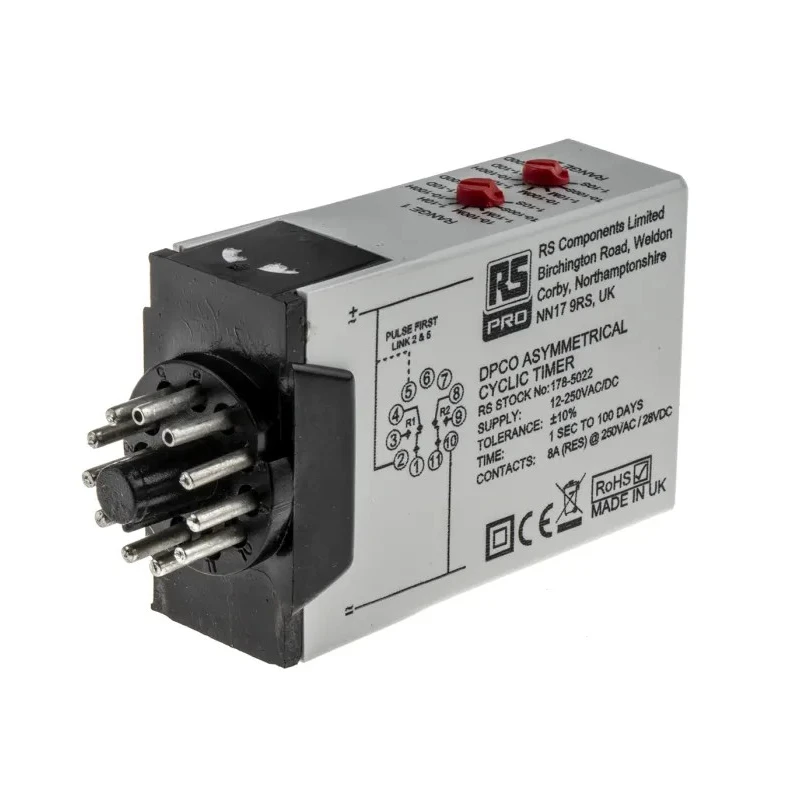

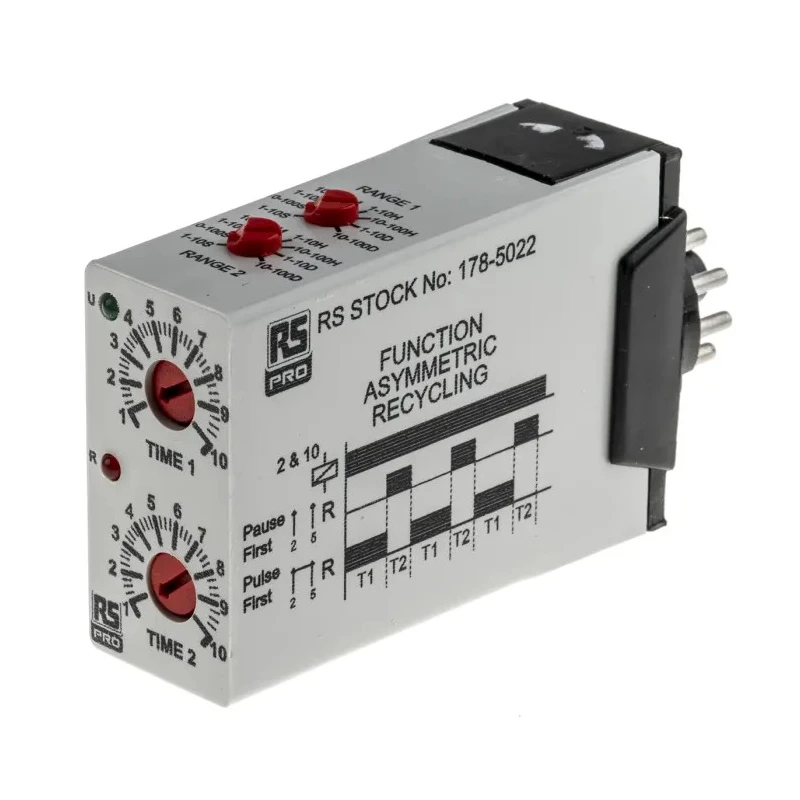

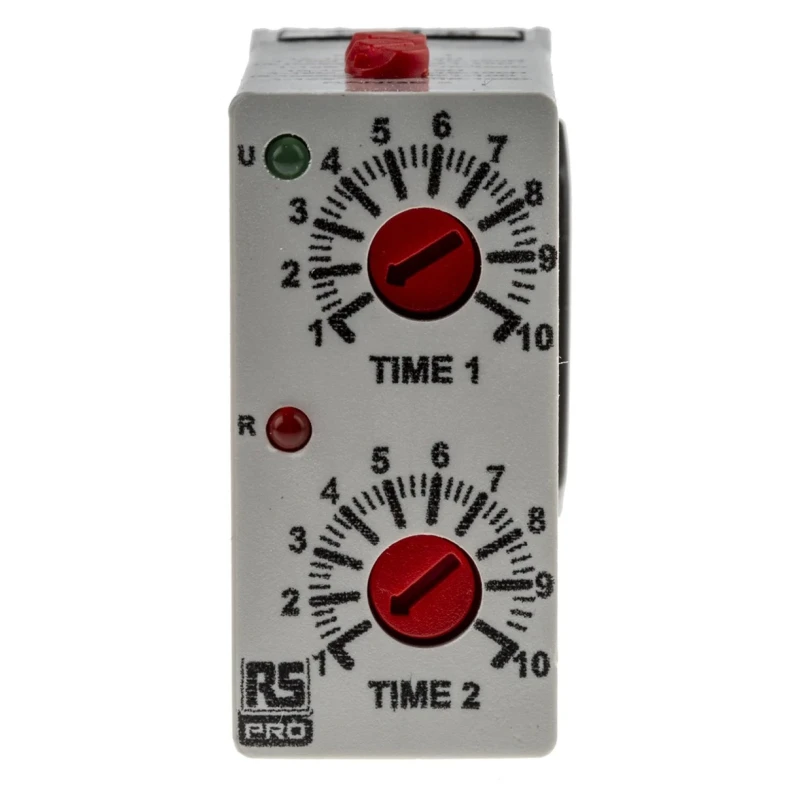

RS PRO UNI Series Multi-voltage Timer Relay, 11-Contact, DPDT Switch, 12 to 250 V dc, 12V/240 V ac, 0.1 s to 100 178-5022

RS PRO 178-5022 UNI Series Multi-voltage Timer Relay combines precision timing with robust electrical control for various industrial and automation applications. Designed with a plug-in 11-pin configuration, this multifunction timer relay offers two independent timing functions with adjustable time ranges from 0.1 seconds up to 100 days, suitable for extensive time delay needs.

The device supports a wide supply voltage range of 12 to 250 V dc and 12V or 240 V ac, accommodating versatile power environments. Its DPDT (Double Pole Double Throw) contact configuration allows it to handle switching voltages up to 250 V and contact current of 8 A, making it ideal for controlling high demand circuits safely.

Constructed with a UL94 V-0 rated polycarbonate housing, the timer relay is both durable and flame retardant. The design includes clear pin markings and functional details on the housing sides to ensure easy wiring and operational understanding. An LED indicator provides real-time status of the output, enhancing monitoring capabilities in industrial setups.

This timer relay supports asymmetrical cyclic timing with both Pause and Pulse modes, adaptable to different control scenarios in automation and machinery. Its compliance with RoHS and EN standards such as EN61010-1, EN61000-6-2, EN61000-6-4, and CE ensures reliability and safety in industrial and manufacturing uses.

Typical applications include control systems in electrical automation, timers for process control, and cyclic operations in manufacturing lines. The robust build alongside its multifunction timing capabilities makes it suitable for use in industrial, laboratory, and HVAC systems.

Features an 11-pin DPCO asymmetrical cyclic timer configuration. Supports two independent timer functions with selectable time ranges from 0.1 seconds to 100 days. Operates on multi-voltage supply from 12 to 250 V dc and 12V or 240 V ac.

Includes DPDT contact configuration with 8 amp contact current capacity. Constructed with UL94 V-0 rated polycarbonate housing for durability and flame retardance. Incorporates LED indication for output status monitoring.

Compatible with pause and pulse timing functions for flexible control. Meets RoHS and multiple EN standards ensuring quality and safety. Pin details and functions are clearly marked for ease of installation and operation.
