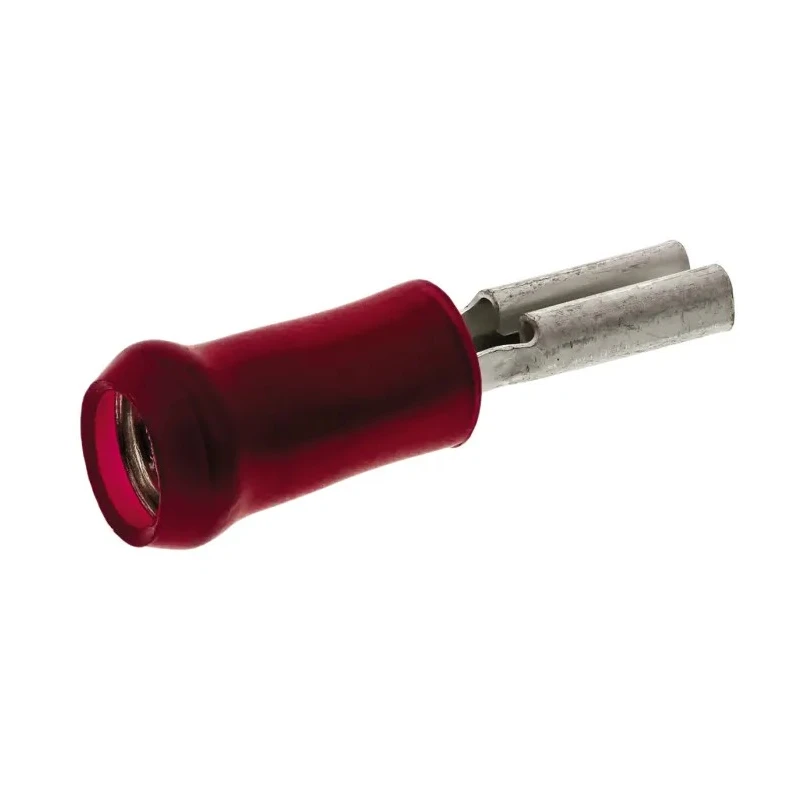

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.41 mm Tab Size 22 AWG to 15 AWG 165564-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Model | 165564-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19.8mm |
| Contact Material | Brass |
| Series | PIDG FASTON .110 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 15AWG |
| Tab Width | 2.79mm |
| Tab Thickness | 0.41mm |
| Tab Size | 2.79 x 0.41 mm |
Key Features
- Made with brass contact material plated with tin for excellent conductivity and corrosion resistance.
- Features a nylon insulated sleeve colored red for clear identification.
- Designed for straight orientation ensuring reliable connection.
- Suitable for wire sizes from 0.3 mm² (22 AWG) up to 1.5 mm² (15 AWG).
- Overall length is 19.8 mm making it compact for various assemblies.
- PIDG FASTON .110 series provides a precision formed metal wire barrel for maximum contact and tensile strength after crimping.
- Compatible with a range of mating area interfaces for flexible use.
- Ideal for electronics, industrial automation, automotive, and electrical wiring applications.
Product Description
TE Connectivity 165564-1 PIDG FASTON .110 Red Insulated Female Spade Connector is a crimp-style wire terminal engineered for electrical connections requiring reliable and durable terminations. It supports wire sizes from 22 AWG to 15 AWG (0.3 to 1.5 mm²), with tab dimensions of 2.79 x 0.41 mm. The contact is made of brass with tin plating to ensure excellent conductivity and corrosion resistance, while the nylon insulation sleeve is color-coded red to denote wire size compatibility.
This Spade Connector is designed with a straight orientation to fit standard quick disconnect terminals and comes from the PIDG FASTON .110 series known for precise metal wire barrels with serrations that provide maximum contact and tensile strength after crimping. The overall length is 19.8 mm making it suitable for a variety of industrial applications.
The insulated sleeve provides mechanical protection and helps to secure the wire after crimping. These connectors are widely used in electronics manufacturing, power distribution equipment, industrial automation systems, HVAC controls, automotive wiring harnesses, and general electrical wiring applications.
The product guarantees high performance in demanding environments, facilitating quick disconnects and reliable electrical connections across multiple industries. Brass contact material plated with tin improves conductivity and corrosion resistance.
Nylon red insulation provides clear wire gauge identification and mechanical protection. Supports wire sizes 0.3 mm² to 1.5 mm² (22 AWG to 15 AWG). Overall length of 19.8 mm for compact installations. Straight male tab orientation fits standard faston terminals efficiently.
Part of the PIDG FASTON .110 series with precision wire barrels for maximum contact strength. Reliable crimp termination ensures secure, durable electrical connections. Commonly used in industrial, automotive, and electronic assembly applications.
Explore the complete range of high-quality wire terminals and splices available from leading brands like TE Connectivity on EnvMart for your professional electrical project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 0.3 mm² (22 AWG) to 1.5 mm² (15 AWG).
The tab size measures 2.79 x 0.41 mm, with a width of 2.79 mm and a thickness of 0.41 mm.
The overall length of this unit is 19.8 mm, making it compact for various assemblies.
The contact is made of brass and is plated with tin to ensure excellent conductivity and corrosion resistance.
It features a nylon insulated sleeve that is colored red for clear identification of wire gauge compatibility.
This model is designed with a straight orientation for compatibility with standard quick disconnect terminals.
It is part of the PIDG FASTON .110 series, known for its precision formed metal wire barrels.
This connector uses a crimp termination type for secure and durable electrical connections.
It is suitable for use in electronics manufacturing, industrial automation, automotive wiring, and general electrical wiring applications.
This model is a female spade connector.
The country of origin for this spade connector is India.
The precision formed metal wire barrel and serrations provide maximum contact and tensile strength after crimping, ensuring reliable connections.
