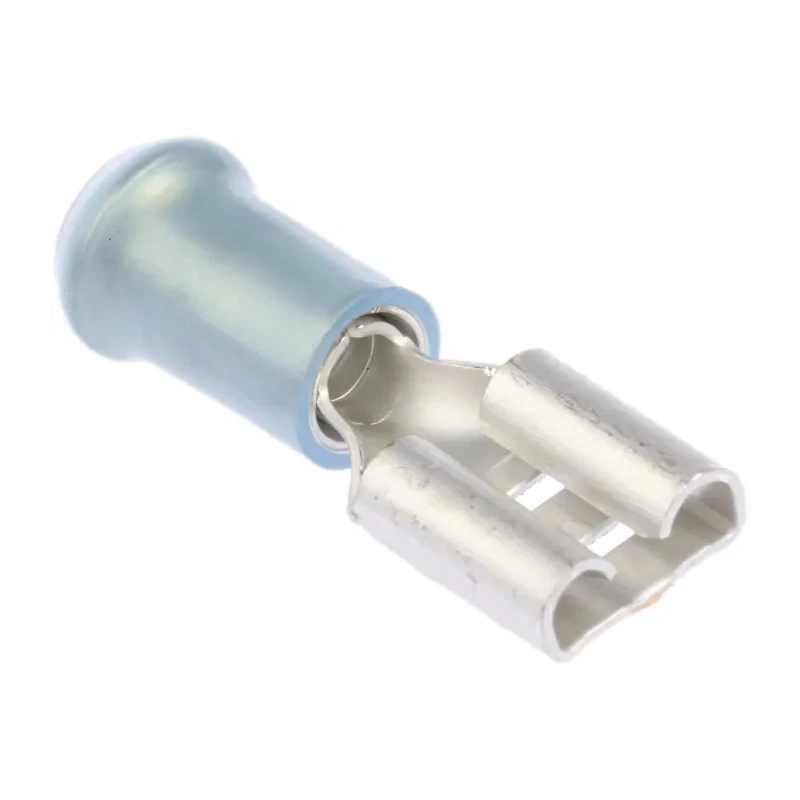

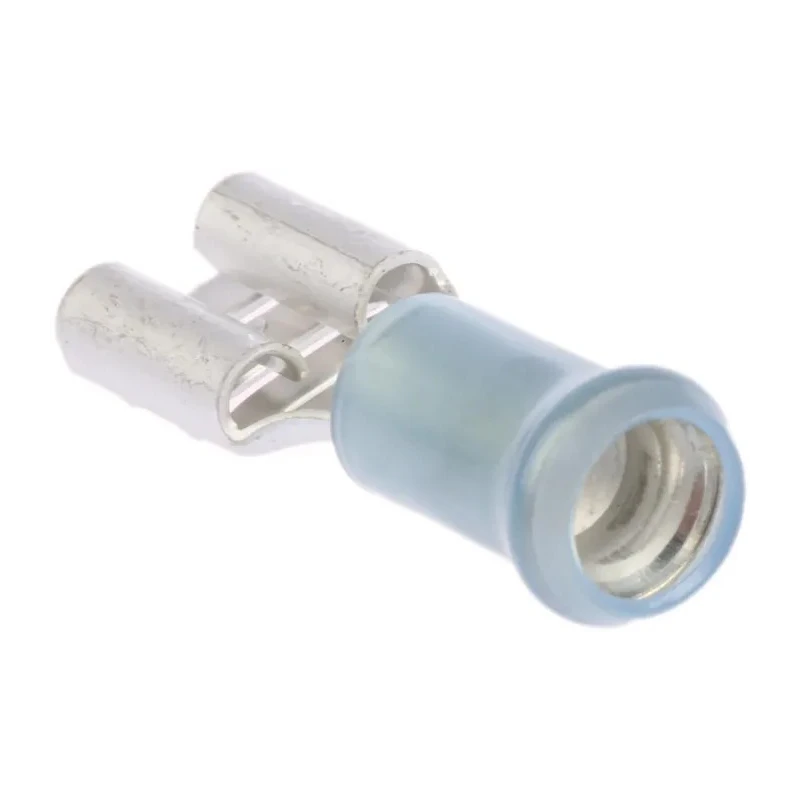

TE Connectivity PIDG FASTON .250 Blue Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 17 AWG to 13 9-160313-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 23.2mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 13AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Constructed with high conductivity phosphor bronze contact material.
- Features a tin plating for enhanced corrosion resistance.
- Insulated with nylon for color-coded wire identification.
- Straight orientation facilitates easy wiring and crimping.
- Overall length of 23.2 mm ensures optimal connectivity in electrical assemblies.
- Color blue indicates compatibility with wire sizes ranging from 1 mm² to 2.5 mm².
- Utilizes PIDG FASTON .250 series design for dependable mechanical and electrical performance.
Product Description
TE Connectivity 9-160313-5 PIDG FASTON .250 Blue Insulated Female Spade Connector is designed for high-integrity electrical termination using crimp-style connections on wire sizes from 17 AWG to 13 AWG. The connector features a 6.35 x 0.81 mm tab size suitable for industrial and electronic applications requiring reliable and uniform electrical performance.
Constructed with a precision-formed phosphor bronze contact, the connector offers excellent conductivity with a tin plating to enhance corrosion resistance and durability in various environments. The nylon insulation sleeve is color-coded blue to identify wire size easily and provides enhanced insulation and protection during and after crimping.
This PIDG (Pre-Insulated Diamond Grip) FASTON receptacle terminal integrates a copper sleeve around the barrel for improved support to wire insulation, reducing conductor fatigue from bending or vibration. Serrations inside the wire barrel maximize electrical contact and tensile retention once crimped, ensuring robust connection integrity.
The connector's straight orientation and funnelled wire entry allow for consistently uniform crimps and faster wire insertion, supporting efficient assembly lines and maintenance operations. It is engineered to meet or exceed demanding MIL-T-7928, Type II, Class 1 and 2 requirements in industries such as aerospace, automotive, instrumentation, panel boxes, and power supplies.
High conductivity phosphor bronze contact for optimal electrical performance. Tin plating for enhanced resistance to corrosion and wear. Blue nylon insulation provides excellent electrical insulation and wire size identification.
Copper sleeve supports insulation to prevent wire damage during bending. Serrated wire barrel ensures strong crimp tensile strength and contact. Funnelled wire entry for easy and fast wire insertion during assembly. Complies with rigorous industry standards for reliability and safety.
This TE Connectivity PIDG FASTON .250 terminal is an ideal choice for demanding applications in industrial automation, electronic manufacturing, aerospace, and transportation sectors. To explore other reliable electrical components and connectors, browse the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 1 mm² to 2.5 mm², or 17 AWG to 13 AWG.
The tab size is 6.35 x 0.81 mm, which is suitable for various industrial and electronic applications.
The contact is constructed from high conductivity phosphor bronze, providing optimal electrical performance.
It features nylon insulation, which provides excellent electrical insulation and color-coded wire identification.
The overall length of this connector is 23.2 mm, ensuring optimal connectivity in electrical assemblies.
This model has a straight orientation, which facilitates easy wiring and crimping.
The connector utilizes a crimp termination type for secure connections.
The contact is tin-plated, which enhances corrosion resistance and durability.
Yes, it is engineered to meet or exceed MIL-T-7928, Type II, Class 1 and 2 requirements.
It is suitable for applications in aerospace, automotive, instrumentation, panel boxes, and power supplies.
The connector integrates a copper sleeve around the barrel, which supports insulation and reduces conductor fatigue from bending or vibration.
The funnelled wire entry allows for consistently uniform crimps and faster wire insertion during assembly.
