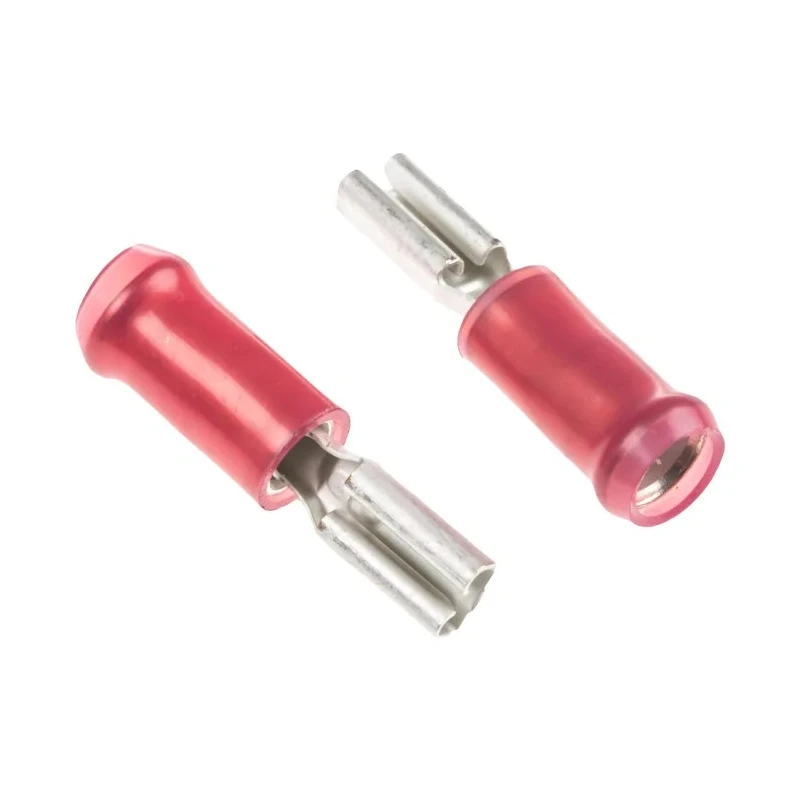

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector, Crimp Termination, 2.79 x 0.79 mm Tab Size 165566-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector, Crimp Termination, 2.79 x 0.79 mm Tab Size 165566-2

Name: TE Connectivity PIDG FASTON .110 Red Insulated Female Spade Connector, Crimp Termination, 2.79 x 0.79 mm Tab Size 165566-2
Brand: TE Connectivity
SKU: 210049
Price: 1.01 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Model	165566-2
Gender	Female
Insulation	Insulated
Overall Length	19.8mm
Contact Material	Phosphor Bronze
Series	PIDG FASTON .110
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	2.79mm
Tab Thickness	0.79mm
Tab Size	2.79 x 0.79 mm

Key Features

Red nylon insulation sleeve ensures excellent electrical insulation.
Precision-formed phosphor bronze contact with tin plating for optimal conductivity.
Crimp termination type offers secure and robust wire connection.
Compatible tab size of 2.79 x 0.79 mm fits standard Faston .110 terminals.
Straight orientation design facilitates easy wire installation.
Wire size range covers 0.3 to 1.5 mm² (22 AWG to 16 AWG).
Overall length of 19.8 mm offers compact form factor.
Suitable for industrial, electronic, and electrical wiring applications.

Product Description

TE Connectivity 165566-2 PIDG FASTON .110 Red Insulated Female Spade Connector is designed for high-quality crimp connections in wire terminal applications. Featuring a precision-formed phosphor bronze female contact with tin plating, this connector offers excellent electrical conductivity and corrosion resistance. A robust nylon insulation sleeve in red color provides reliable insulation and easy color coding for wire size identification.

The connector's tab size of 2.79 x 0.79 mm is compatible with the standard Faston .110 terminal size, suitable for wire sizes ranging from 22 AWG to 16 AWG (0.3 to 1.5 mm²). It features a crimp termination type and a straight orientation which simplifies installation in various wiring assemblies.

With an overall length of 19.8 mm, the connector balances compact dimensions with ample mechanical strength. It is widely used in industrial electronics, power distribution, telecommunications, and automotive electrical systems.

The PIDG FASTON series from TE Connectivity are known for their consistent quality, durability, and ease of use in crimp terminal applications. These connectors ensure secure mechanical and electrical connection, enhancing the reliability of electrical circuits.

Red nylon insulation sleeve ensures electrical insulation and color coding. Phosphor bronze contact material with tin plating for superior conductivity and corrosion resistance. Crimp termination ensures strong wire retention and electrical contact.

Compatible with 2.79 x 0.79 mm Faston .110 tab size terminals. Straight orientation facilitates easy connection in wiring harnesses. Fits wire sizes from 22 AWG to 16 AWG (0.3 to 1.5 mm²). Compact overall length of 19.8 mm for space-saving installations.

Suitable for industrial, telecommunications, automotive, and electronic applications. Manufactured to provide consistent and reliable performance in wire termination. Explore the full range of wire terminals and splices at EnvMart for comprehensive solutions to your electronic component requirements.
