TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170361-1

Free Delivery in India | Lowest Global Shipping Charges

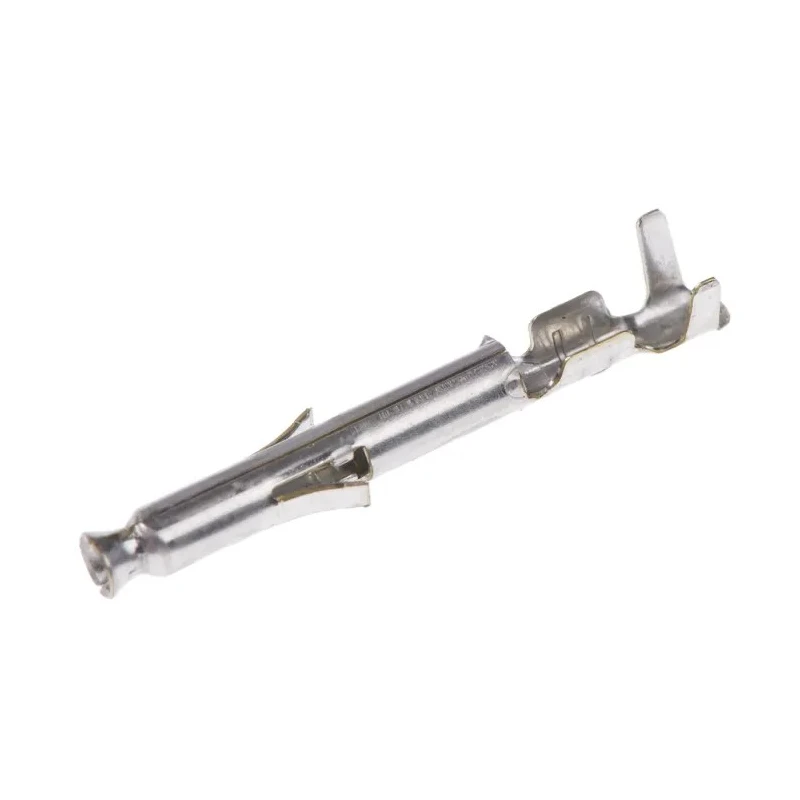

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170361-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG 170361-1
Brand: TE Connectivity
SKU: 209917
Price: 0.13 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	7A
Model	170361-1
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Constructed from brass material with tin plating for reliable conductivity.
Designed for crimp termination, ensuring secure electrical connections.
Operates in a wide temperature range from -20°C up to 105°C.
Compatible with Mini-Universal MATE-N-LOK connector housings.
Minimal contact resistance of 10 mΩ for optimal signal integrity.
Suitable for wire sizes between 0.1 mm² (26 AWG) and 0.35 mm² (22 AWG).
Female gender connector type for wire-to-wire interfaces.

Product Description

TE Connectivity 170361-1 Mini-Universal MATE-N-LOK series female crimp terminal is a high-quality electrical connector component designed for secure wire-to-wire connections in electronic and electrical assemblies. This crimp terminal is engineered for Mini-Universal MATE-N-LOK connector housings, providing a reliable interface for signal and power transmission up to 7 amperes of current.

Crafted from brass material and plated with tin, this terminal ensures excellent conductivity and corrosion resistance, delivering consistent performance in industrial and commercial applications. Its design facilitates crimp termination, simplifying assembly processes and enhancing connection durability.

The product operates reliably over a temperature range from -20 degrees Celsius to 105 degrees Celsius, making it suitable for various environments including industrial electronics, automotive wiring harnesses, manufacturing, and automation systems.

This female crimp terminal supports wire sizes ranging from 0.1 mm² (26 AWG) to 0.35 mm² (22 AWG), allowing versatile usage across multiple wiring requirements. The contact resistance is maintained below 10 milliohms, ensuring minimal signal loss and efficient electrical performance.

Brass material with tin plating for superior conductivity and corrosion resistance. Crimp termination type enables fast and secure wire attachment. Compatible with Mini-Universal MATE-N-LOK connector housing systems. Wide operating temperature range (-20°C to 105°C) for diverse application environments.

Supports wire sizes between 0.1 mm² and 0.35 mm² (26 to 22 AWG). Maximum current handling capacity of 7 amperes for reliable power transmission. Low maximum contact resistance of 10 milliohms ensures efficient connections.

This terminal is primarily used for electronic component assembly, power and signal wiring in equipment manufacturing, automation systems, electronic test equipment, and various industrial control applications. It offers reliable performance needed in environments requiring secure crimp connections coupled with resistance to mechanical and thermal stress.
