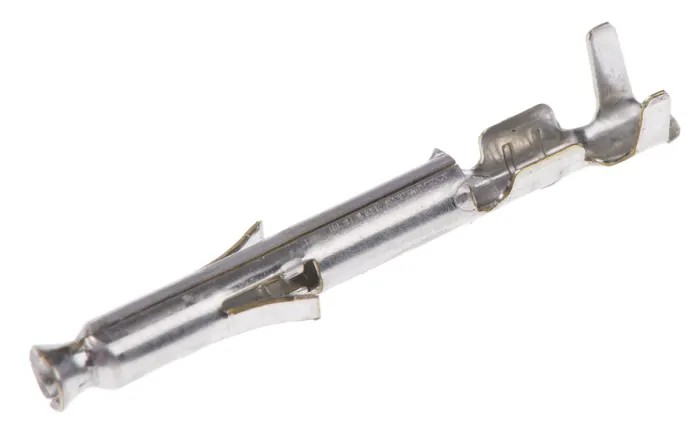

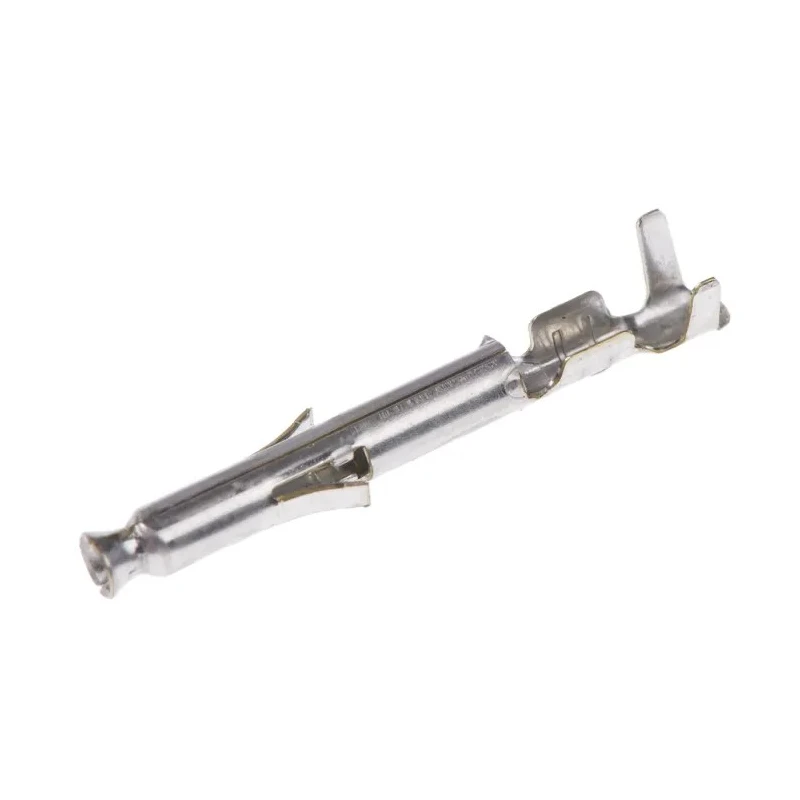

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Wire Size 170361-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Wire Size 170361-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 26-22 AWG Wire Size 170361-1
Brand: TE Connectivity
SKU: 209903
Price: 0.15 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Current	7A
Model	170361-1
Gender	Female
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Compatible with Mini-Universal MATE-N-LOK connector housing.
Constructed with brass contact material for durability.
Tin plating reduces corrosion and enhances conductivity.
Crimp termination type ensures secure electrical connections.
Operates safely between -20°C and 105°C temperature range.
Maximum contact resistance of 10 milliohms ensures minimal power loss.
Supports wire sizes from 0.1 mm² (26 AWG) to 0.35 mm² (22 AWG).
Designed for female gender contact applications.

Product Description

TE Connectivity 170361-1 Mini-Universal MATE-N-LOK Series female crimp terminal is a high-quality connector component designed for electronic and electrical applications requiring secure wire connections.

This crimp terminal supports current up to 7A and is suitable for use with Mini-Universal MATE-N-LOK connector housings, providing reliable female contact connection.

Constructed from brass with tin plating, this terminal resists corrosion while ensuring effective conductivity. The crimp termination method offers robust mechanical and electrical connection, suitable for wires ranging from 26 AWG (0.1 mm²) to 22 AWG (0.35 mm²).

Operating temperature ranges from -20°C to 105°C, providing versatility in various industrial, commercial, and manufacturing environments. The maximum contact resistance is 10 milliohms, minimizing power loss and ensuring signal integrity.

This connector is ideal for applications in electronic manufacturing, PCB wiring assemblies, and power distribution requiring compact, reliable female crimp terminals. Compatible with Mini-Universal MATE-N-LOK connector housing.

Made with corrosion-resistant brass and tin plating. Crimp termination for secure electrical connections. Supports wire sizes from 26 AWG to 22 AWG. Rated for 7A current and wide operating temperature range. Low contact resistance for efficient conductivity.

Suitable for various electronic and industrial applications. Explore more connectors and components from TE Connectivity to enhance your electronic designs and manufacturing processes on EnvMart for reliable sourcing and expertise.
