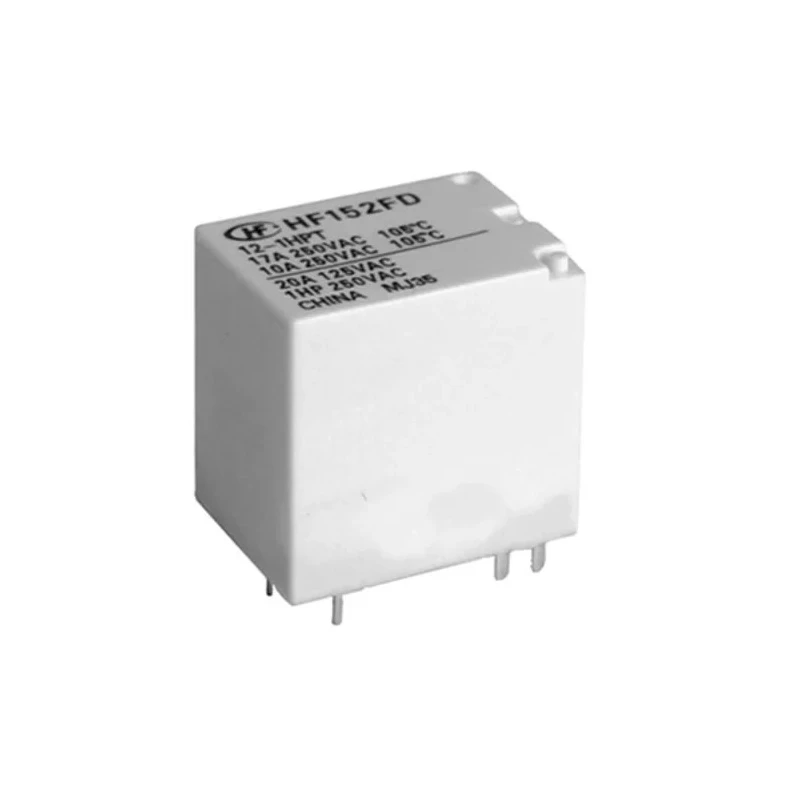

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 17A Switching Current SPDT HF152FD/12-1ZTF(335)

Hongfa Europe GMBH HF152FD/12-1ZTF(335) PCB Power Relay is a high-quality, 1-pole, single-pole double-throw (SPDT) non-latching relay designed for PCB mounting with a 12V DC coil. It supports up to 17 amps of DC/AC switching current, making it suitable for controlling high power circuits efficiently.

This relay features silver alloy contacts for excellent electrical endurance and low contact resistance of 100mΩ, enhancing signal quality and reliability. It operates reliably over a wide temperature range from -40°C to 105°C, making it suitable for diverse industrial environments.

With a coil resistance of 400Ω and a coil power consumption of just 360mW, the relay supports energy-efficient operation. The device can switch alternating currents up to 400 VAC and switching power ratings up to 4.7 kVA, making it fit for robust industrial and automotive applications.

The relay’s compact dimensions (length 21.2 mm, height 20.6 mm, width 16 mm) offer excellent board space saving. It features isolation voltage of 2.5 kV between coil and contacts to ensure operational safety and durability.

This product complies with RoHS environmental standards, ensuring it is environmentally friendly and safe to use. Its mechanical endurance rating of 10 million cycles guarantees long service life even under high vibration and abrasion conditions.

Typical applications include control devices for automotive industry systems, household appliances, industrial machinery controls, and telecommunications equipment. The relay’s robust design and electrical characteristics make it an ideal choice for demanding industrial environments.

Hongfa Europe GMBH products are known for their quality and reliability, providing confidence in industrial and commercial electrical applications. This power relay supports engineers in achieving efficient control and switching in PCB-mounted designs.

This relay is designed for PCB mounting and offers high electrical endurance with silver alloy contacts. It operates reliably within a temperature range from -40°C up to 105°C. The coil resistance is 400Ω and coil power consumption is 360mW for efficient performance.

It supports switching power up to 4.7kVA and switching AC voltage up to 400V AC. The relay is a subminiature, non-latching type suitable for various industrial applications. It complies with RoHS standards, ensuring environmental friendliness.

The device has a compact size with dimensions approximately 21.2mm in length, 20.6mm height, and 16mm width. It features a coil isolation voltage of 2.5kV between coil and contacts for safety. High mechanical endurance rated for 10 million cycles supports durability in industrial use.

Common applications include automotive systems, household appliances, telecommunications, and industrial machinery. Explore more quality Power Relay solutions at EnvMart to find suitable components for your specific electrical and automation requirements.
