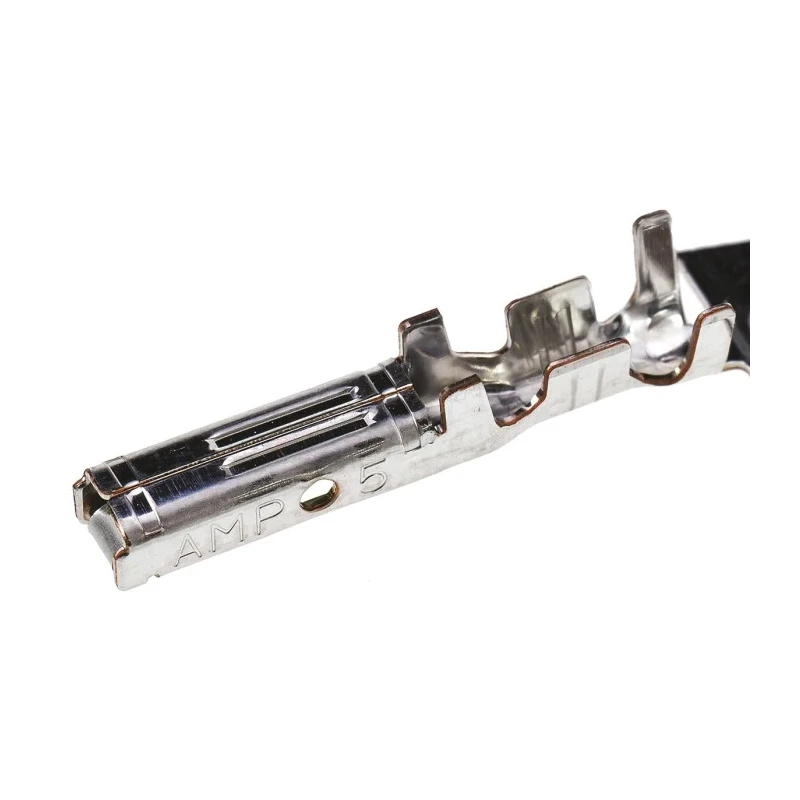

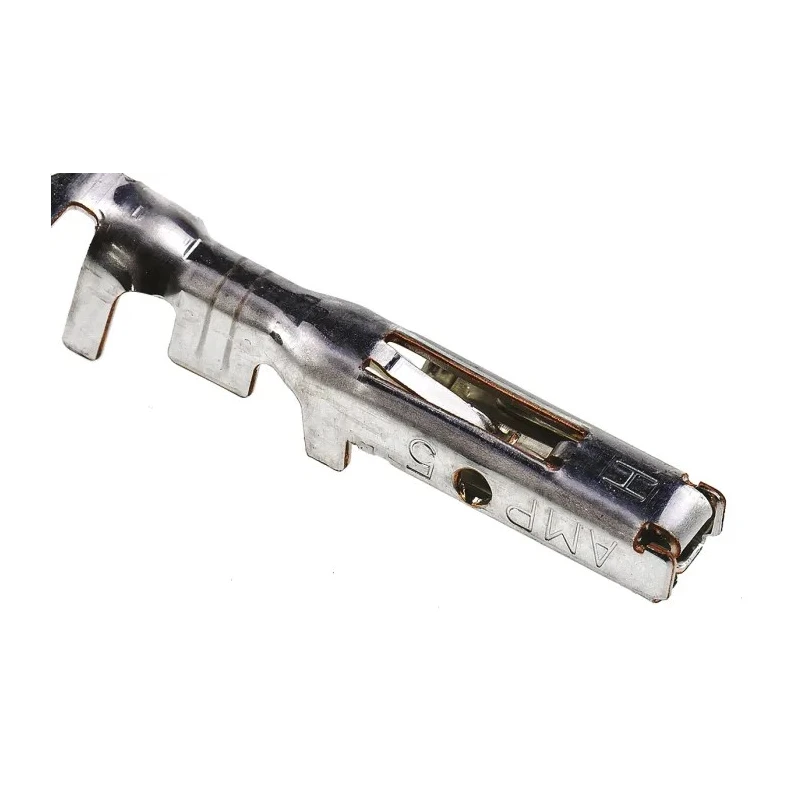

TE Connectivity Dynamic 3000 Series Female Crimp Terminal 15A Current 20 AWG Min Crimp, 16 AWG Max 1-175196-5

TE Connectivity 1-175196-5 Dynamic 3000 Series Female Crimp Terminal is a high-performance electrical contact designed for use in Dynamic 3000 connector housings. Rated for a current of 15A, this female Crimp Terminal accepts wire sizes from 20 AWG minimum to 16 AWG maximum, ensuring flexibility for varied wiring applications.

Constructed from quality copper alloy, the contact is plated with bright tin to provide excellent corrosion resistance and durability in demanding environments. The terminal features a twist-resistant box-type receptacle design with three points of contact, contributing to enhanced electrical reliability and secure connections.

Its compact length of 17.8mm facilitates compatibility within industrial machinery and electronic equipment connectors. The crimp termination method ensures a secure, reliable electrical and mechanical connection, while the contact is secured inside the housing by a lance mechanism that produces an audible click upon correct insertion.

Operating temperature ranges from -55°C to 105°C, supporting use in various industrial and manufacturing environments. The Dynamic 3000 series contacts are designed for high insertion/extraction cycles, with options for standard and high pressure contact springs to suit environments with lesser or higher vibration demands.

This product is ideal for industrial machinery combined signal and power applications where reliable, robust connector performance is essential. It ensures consistent current conduction and mechanical stability during operation.

Constructed from copper alloy with bright tin plating for corrosion resistance. Supports 15A current capacity suitable for power and signal transmission. Crimp termination compatible with Dynamic 3000 connector housings.

Wire size range from 20 AWG (0.5mm²) to 16 AWG (1.25mm²). Durable in operating temperatures between -55°C and 105°C. Box type twist-resistant receptacle with 3 point contact design for reliability. Standard and high pressure contact versions for varying vibration environments.

Secures with audible click inside connector housing for confirmed fitting. Length: 17.8mm, compact for industrial electronic applications.
