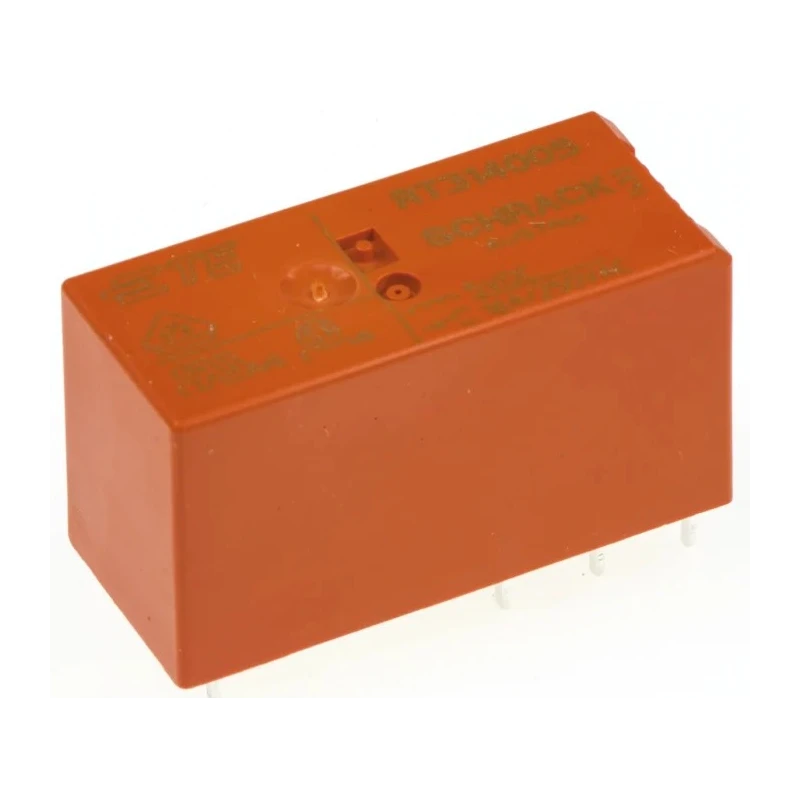

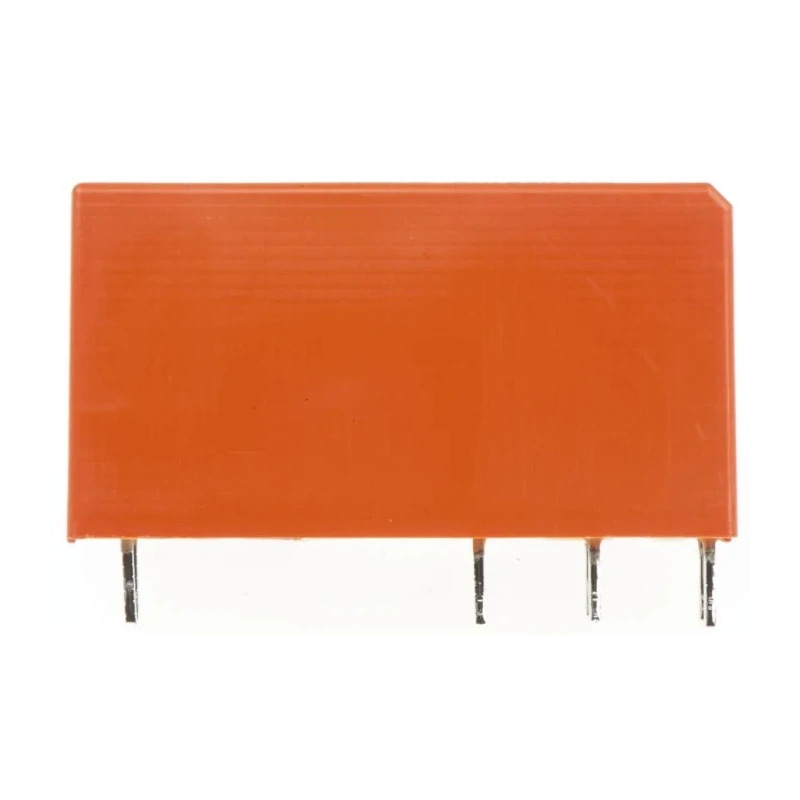

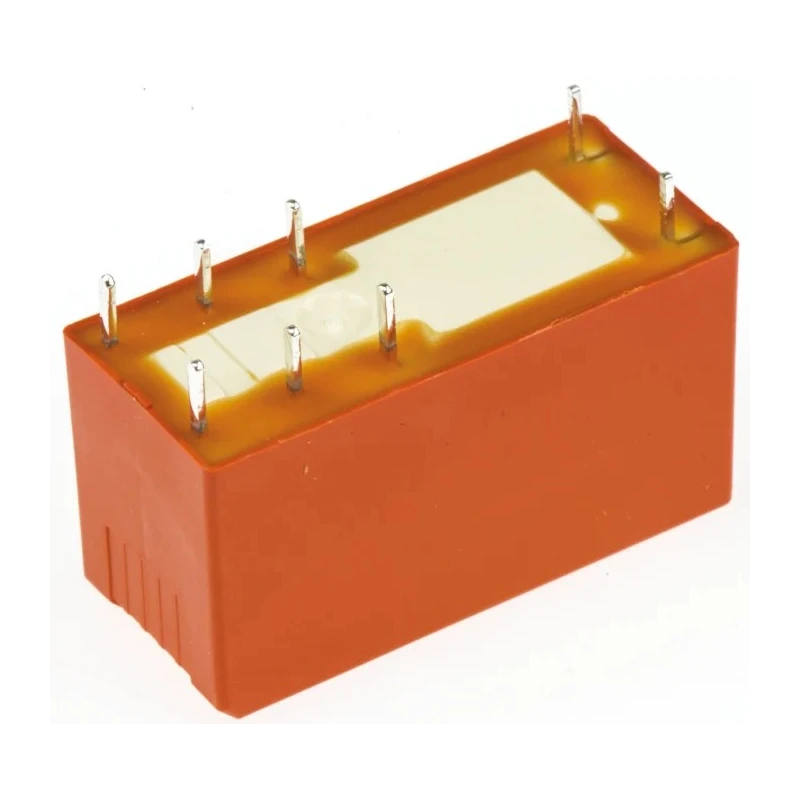

TE Connectivity PCB Power Relay 5V dc Coil 16A Switching Current SPDT RT314005
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314005 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- This relay is designed for PCB mount with solder terminal type for easy installation.
- It operates within a temperature range of -40°C to 85°C ensuring reliability in diverse environments.
- Silver nickel alloy contacts deliver excellent conductivity and durability.
- The relay switches up to 400V AC, rated at 4kVA switching power for robust performance.
- Coil resistance is 62 ohms with a coil power consumption of 250mW for energy-efficient operation.
- Complies with VDE, RoHS, and IEC 60335-1 standards including UL and CSA approvals.
Product Description
TE Connectivity RT314005 is a high-quality PCB Power Relay designed for industrial, automation, and domestic application use. It features a 5V dc coil voltage and a 16A switching current with single-pole double-throw (SPDT) contact configuration. Its solder terminal type and PCB mounting enable easy integration into printed circuit boards.
This relay operates reliably in extreme temperatures ranging from -40°C to 85°C, making it suitable for demanding environments such as security systems, heating controls, and lighting automation. The silver nickel alloy contact material ensures high conductivity and long service life.
The relay handles switching power up to 4kVA at 400V AC, making it appropriate for high power switching tasks. The coil resistance of 62 ohms and coil power of 250mW provide energy-efficient operation to minimize power consumption in control circuitry.
Physical dimensions are compact, with 29mm length, 12.7mm width, and 15.7mm height, fitting neatly into space-constrained PCB layouts. The RT314005 model complies with recognized safety and quality standards, including VDE, RoHS, IEC 60335-1, UL, and CSA certifications.
Applications span interface relays for automation, domestic appliances, security lighting, heating systems controls, and other industrial usages requiring reliable power relay switching function.
This relay is ideal for electrical and automation projects requiring a robust, industry-standard power relay solution. TE Connectivity’s RT series relays offer various coil voltages and pinning options to meet diverse design needs.
Package contains one piece of the RT314005 Power Relay, supplied ready for PCB insertion. Explore EnvMart’s extensive catalogue of relays and electrical components for related products and technical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current of 16A.
This model operates with a coil voltage of 5V dc.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It features a single-pole double-throw (SPDT) contact configuration.
The relay can switch up to 400V AC.
The coil resistance is 62 ohms.
It operates within a temperature range of -40°C to 85°C.
This relay is designed for PCB mounting with solder terminals.
The contacts are made from silver nickel alloy, ensuring good conductivity.
It complies with VDE, RoHS, IEC 60335-1 standards, and has UL and CSA approvals.
The coil power consumption is 250mW.
This relay is suitable for industrial, automation, and domestic applications, including security systems and heating controls.
