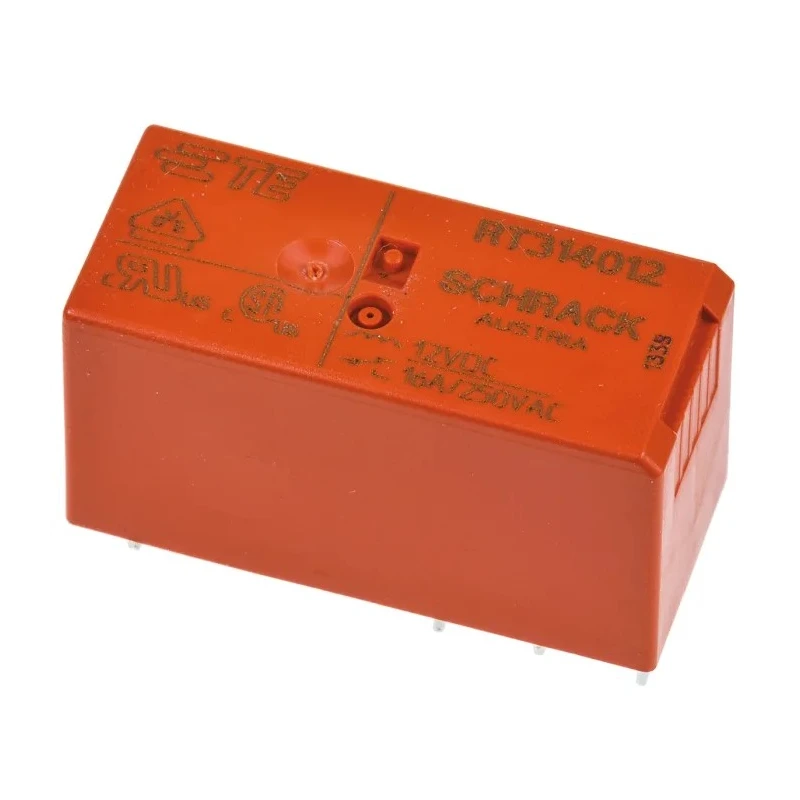

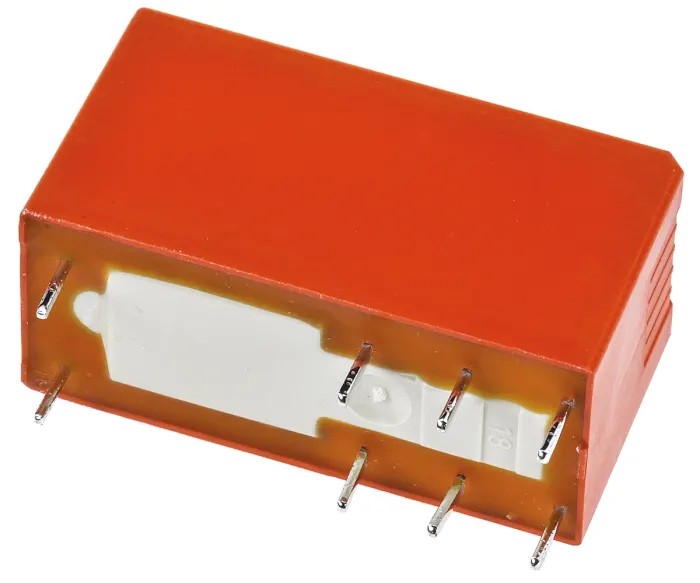

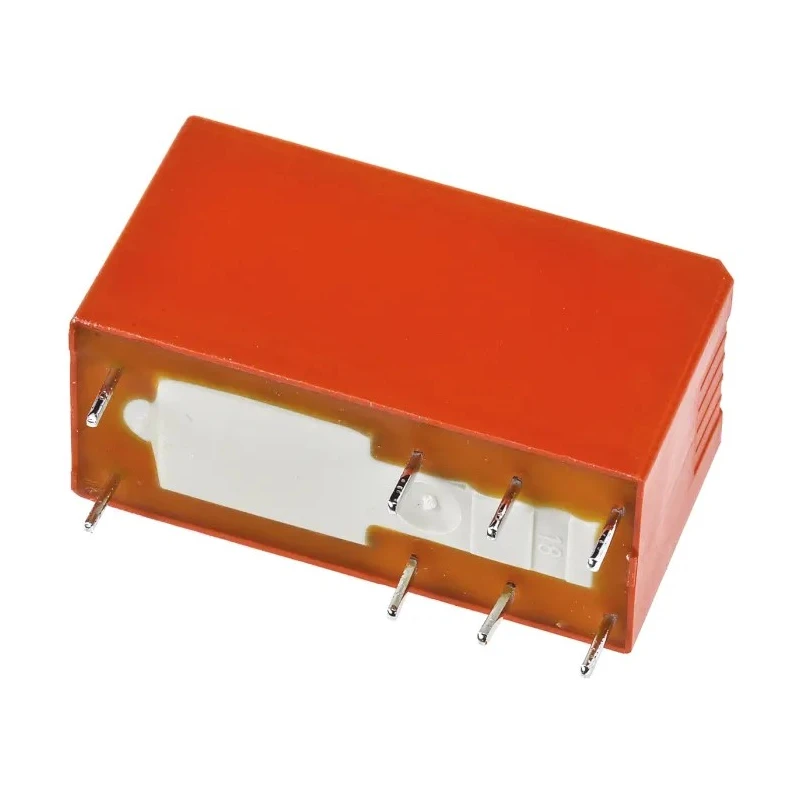

TE Connectivity PCB Power Relay 12V dc Coil 16A Switching Current SPDT RT314012 9-1393239-5
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314012 9-1393239-5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminal type ensuring robust connection.
- Operates within a temperature range of -40°C to 85°C for diverse environments.
- Coil resistance of 360 ohms and coil power consumption of 250mW for efficient operation.
- Switching AC voltage capability up to 400V AC and switching power of 4kVA.
- Constructed with silver nickel alloy contacts for durability and conductivity.
- Conforms to IEC 60335-1, RoHS, and VDE standards ensuring quality and compliance.
Product Description
TE Connectivity RT314012 9-1393239-5 PCB Power Relay features a 12V DC coil and supports a switching current of 16A with a single pole double throw (SPDT) contact configuration. This RT1 series relay is mounted on PCB and uses solder terminals, making it ideal for industrial, automation, domestic applications, security lighting, and heating systems.
The relay operates efficiently with a coil resistance of 360Ω and coil power of 250mW, which contributes to low power consumption. It can handle switching AC voltages up to 400V AC and supports switching power of up to 4kVA, making it suitable for a wide range of electrical loads.
Its operating temperature range from -40°C to 85°C allows it to function reliably in harsh environments. The contact material is made of silver nickel alloy, providing excellent conductivity and durability. The relay dimensions are compact, with length 29mm, width 12.7mm, and height 15.7mm, allowing convenient PCB integration.
This product complies with IEC 60335-1, RoHS directives, and VDE standards, ensuring safety and environmental conformity. Manufactured in Austria, it maintains high European quality standards.
PCB mount power relay with 12V DC coil voltage and SPDT contacts. 16A switching current suitable for various industrial control applications. Low coil power consumption of 250mW for energy efficiency. Wide temperature operating range from -40°C to 85°C for versatile use.
Silver nickel alloy contact material for high reliability and conductivity. Compact size for easy PCB integration in electronic equipment. Meets IEC 60335-1, RoHS, and VDE standards for quality compliance.
Ideal for industrial automation, interface circuits, heating systems, and security lighting installations. This relay is designed to improve production efficiency through its reliable switching capability.
For more electronic components like relays and Power Relays, explore EnvMart's comprehensive catalog to find solutions tailored to advanced electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
It can handle a maximum switching current of 16A.
The dimensions are 29mm in length, 12.7mm in width, and 15.7mm in height.
The relay operates within a temperature range of -40°C to 85°C.
This model features a single pole double throw (SPDT) contact configuration.
The coil resistance is 360 ohms.
It can switch AC voltages up to 400V AC.
The coil power consumption is 250mW.
The contacts are made from silver nickel alloy, ensuring good conductivity.
It complies with IEC 60335-1, RoHS, and VDE standards.
This relay uses solder terminals for PCB mounting.
This product is manufactured in Austria.
