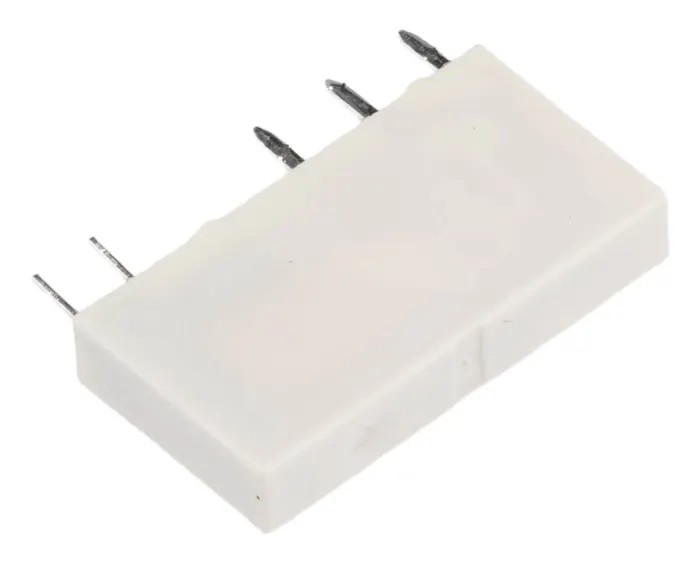

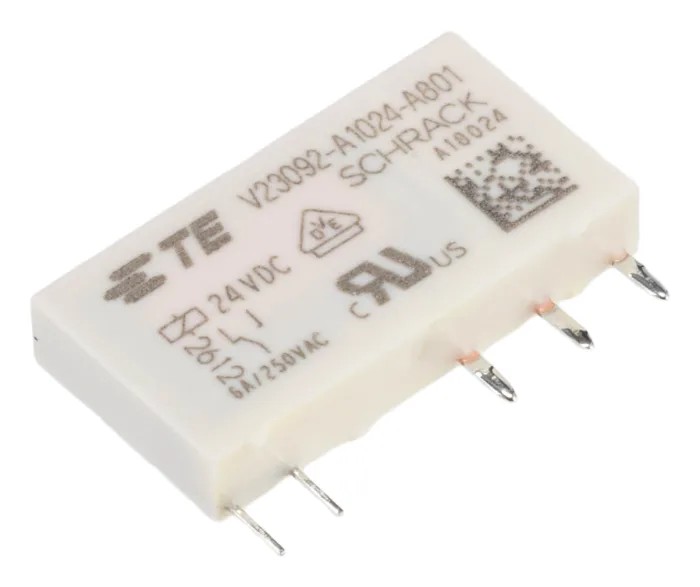

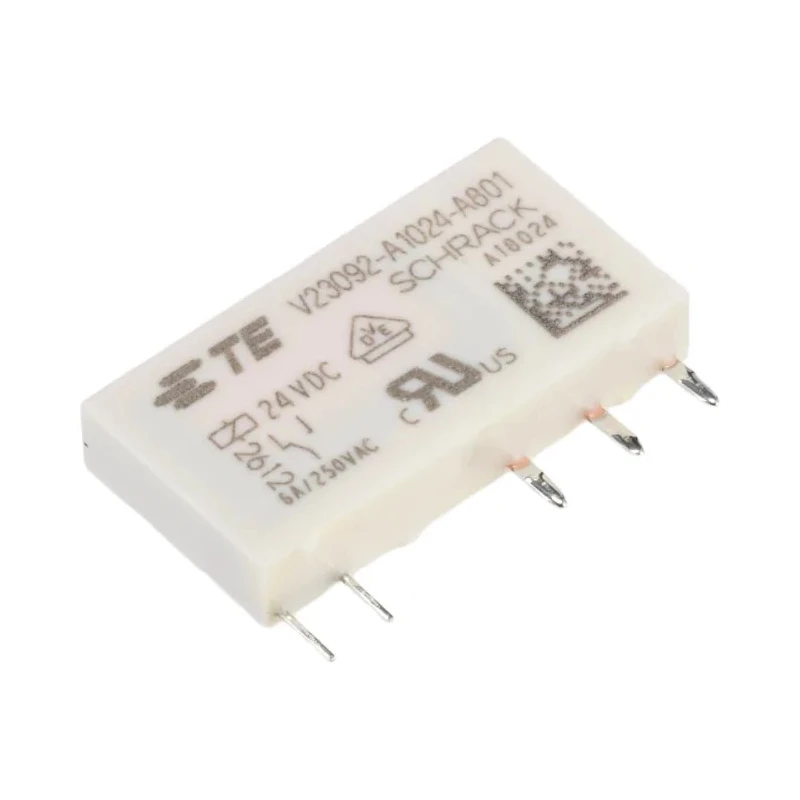

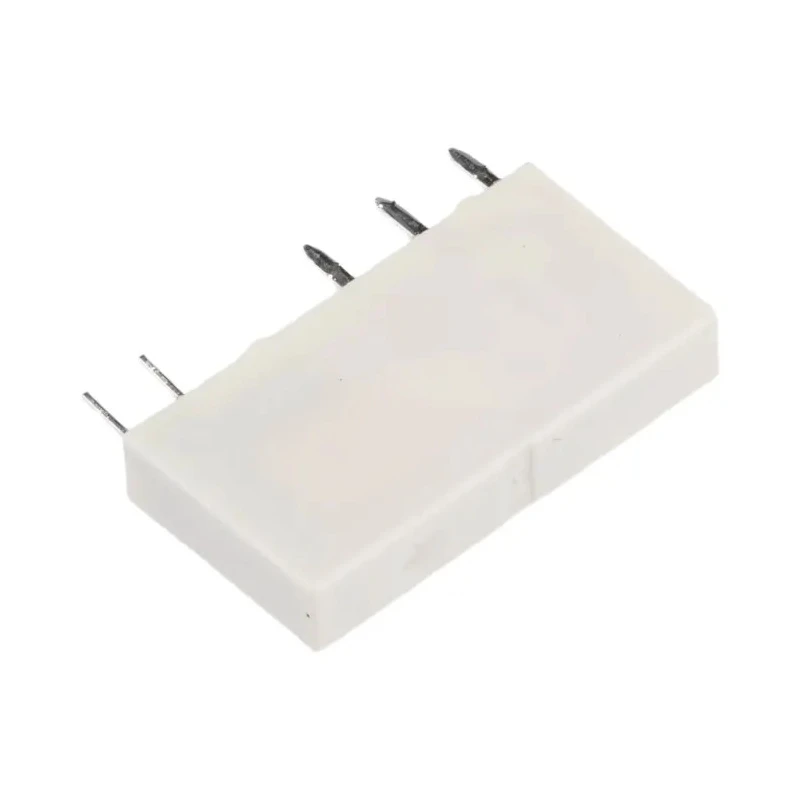

TE Connectivity PCB Power Relay 24V dc Coil 6A Switching Current SPDT V23092-A1024-A801

TE Connectivity V23092-A1024-A801 PCB Power Relay is a high-quality relay designed for electronic and electrical applications requiring reliable switching performance. Featuring a 24V dc coil and a switching current of 6A, this relay is engineered to provide optimal control in compact spaces with its slim 5mm thickness. The relay's SPDT contact configuration enables versatile switching capabilities suited for power management and signal conditioning.

The relay's coil power consumption is low at 170 mW, allowing for efficient energy use, while the coil resistance is 3.4kΩ to maintain consistent operation. Its operating temperature range of -40°C to 85°C makes it suitable for harsh environments, ensuring durability and stability across varying conditions.

Constructed with Silver Nickel Alloy contacts, it offers robust conductivity and resistance to wear, sustaining switching AC voltages up to 400V ac and a maximum switching power of 1.5 kVA. The isolation voltage between coil and contact is 4000 Vac, providing high electrical safety and reliability. Compliance with international standards such as EN60730-1, IEC 61810-1, UL 508, and VDE ensures this relay meets rigorous quality and safety requirements.

This relay's solder-type terminals are ideal for mounting on printed circuit boards (PCB), facilitating easy integration into electronic assemblies. Its compact length (28mm), height (15mm), and width (5mm) make it suitable for high-density applications in industrial automation, commercial electronics manufacturing, and power control systems.

Overall, the TE Connectivity V23092-A1024-A801 is an exceptional smart relay solution optimized for demanding electrical switching tasks. It supports a multitude of industrial and laboratory applications including automation control, machinery interface, HVAC systems, and power supply circuits.

Compact slim layout for space-constrained PCB applications. High coil sensitivity minimizes power consumption. Wide operating temperature range supports extreme conditions. Premium contact material ensures long service life.

Meets multiple international certifications for safety and quality. Single Pole Double Throw configuration enhances switching versatility. Robust isolation voltage protects connected circuits. Solder terminals simplify PCB mounting and maintenance.
