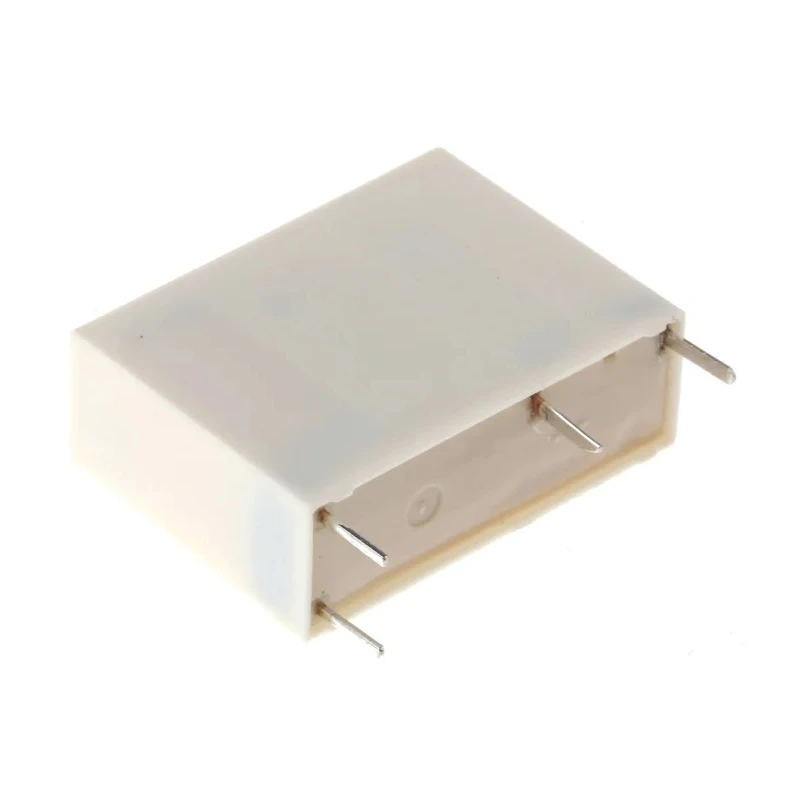

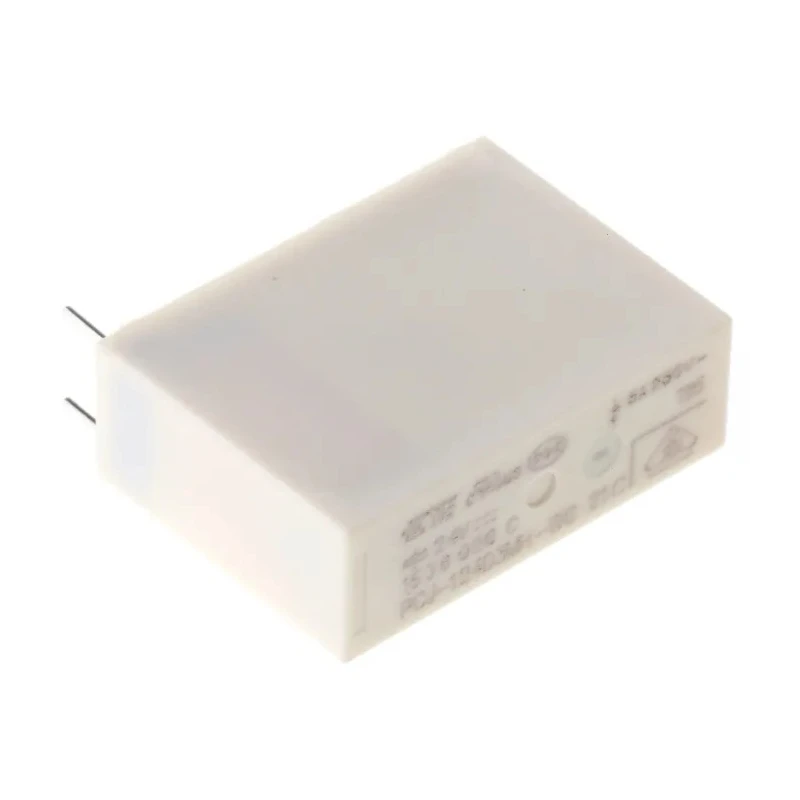

TE Connectivity DIN Rail Power Relay, 24V DC Coil, 5A Switching Current, SPST PCJ-124D3MH-WG,000M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20.4mm |
| Model | PCJ-124D3MH-WG,000M |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PCJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V |
| Coil Power | 200mW |
Key Features
- Designed for DIN rail mounting providing easy installation in electrical control panels.
- Equipped with a sensitive 200 mW coil for efficient operation.
- Silver alloy contact material ensures reliable switching and durability.
- Wide operating temperature range from -40°C to 85°C suitable for various industrial environments.
- Supports switching voltages up to 400V AC and 30V DC for versatile applications.
- Compact dimensions with 20.4mm length, 14mm width, and 15mm height for space-saving designs.
- Through-hole terminal type facilitates secure and stable PCB mounting.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
Product Description
TE Connectivity PCJ-124D3MH-WG,000M DIN Rail Power Relay is a high-quality miniature power relay designed for efficient electrical switching in industrial and domestic appliance applications.
This model features a 24V DC coil delivering a sensitive 200 mW power consumption, providing reliable operation with minimal energy usage. It supports a single-pole single-throw (SPST) contact configuration with a switching current rated at 5A, suitable for controlling moderate power loads.
The relay is designed for DIN rail mounting, facilitating convenient panel integration. Its compact form factor, measuring 20.4mm in length, 14mm in width, and 15mm in height, allows for space-saving assembly in control cabinets and electronic devices.
The silver alloy contact material ensures consistent electrical conductivity and longevity, while the coil resistance of 2.9kΩ enhances operational stability. This relay operates reliably across a broad temperature range from -40°C to 85°C, making it ideal for demanding industrial, electrical, automation, and HVAC environments.
Supporting up to 400V AC and 30V DC switching voltages, this relay is versatile for multiple switching applications. It is RoHS compliant, meeting environmental regulations for safe usage.
Designed for DIN rail mounting providing easy installation in electrical control panels. Equipped with a sensitive 200 mW coil for efficient operation. Silver alloy contact material ensures reliable switching and durability.
Wide operating temperature range from -40°C to 85°C suitable for various industrial environments. Supports switching voltages up to 400V AC and 30V DC for versatile applications. Compact dimensions with 20.4mm length, 14mm width, and 15mm height for space-saving designs.
Through-hole terminal type facilitates secure and stable PCB mounting. RoHS compliant ensuring environmentally friendly manufacturing standards.
This TE Connectivity PCJ series Power Relay is well suited for industrial control systems, automation machinery, HVAC control, and domestic appliances where reliable, compact, and efficient switching is essential. Its DIN rail mounting and standard compliance make it easy to incorporate into manufacturing and electrical installations.
Explore our wide range of electronic components and relays at EnvMart for all your industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 24V DC.
It has a switching current rated at 5A.
This relay features a single-pole single-throw (SPST) contact configuration.
The relay measures 20.4mm in length, 14mm in width, and 15mm in height.
It supports switching voltages up to 400V AC and 30V DC.
The operating temperature range is from -40°C to 85°C.
This model is designed for DIN rail mounting, facilitating easy installation.
The contacts are made of silver alloy, ensuring reliable switching.
It features a through-hole terminal type for secure and stable PCB mounting.
The coil power consumption is 200 mW.
Yes, it is RoHS compliant, meeting environmental regulations for safe usage.
This relay is suitable for industrial control systems, automation machinery, HVAC control, and domestic appliances.
