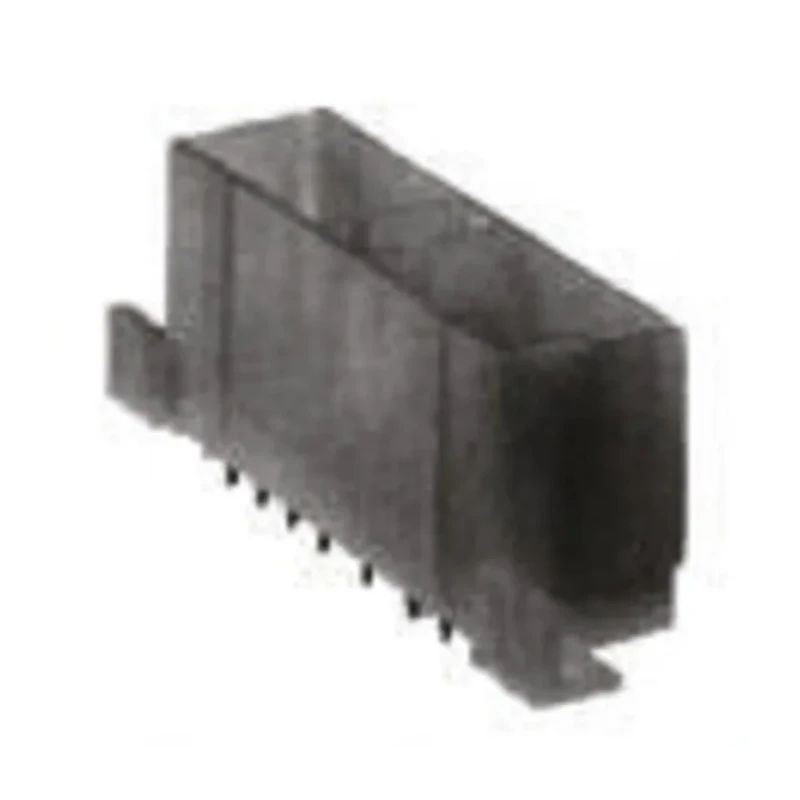

TE Connectivity Multi-Interlock Series Straight Through Hole PCB Socket, 13-Contact, 2 Row, 1.27 mm Pitch, 12A 171362-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | 171362-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Multi-Interlock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 13 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of 12 amperes and voltage rating up to 350 volts.
- Constructed with thermoplastic housing for durability and insulation.
- Features brass female contacts plated with tin for reliable conductivity.
- Designed for through hole mounting with straight orientation for PCB installation.
- Operates reliably in temperatures ranging from -55°C to 105°C.
- Offers a multi-interlock series for secure connections in electronic assemblies.
- Ideal for industrial, laboratory, and commercial electronic equipment assembly.
- Provides compatibility with wire-to-board connector systems requiring 2-row contact arrangement.
Product Description
TE Connectivity 171362-1 Multi-Interlock Series Straight Through Hole PCB Socket is a high-quality electronic component designed to facilitate secure wire-to-board connections. It features 13 female contacts arranged in 2 rows with a fine 1.27 mm pitch, allowing for precise and compact PCB connections.
The socket supports electrical currents up to 12A and voltages up to 350V, making it suitable for various industrial and commercial electronic applications. The thermoplastic housing ensures excellent insulation and mechanical stability, while the brass contacts with tin plating provide reliable electrical conductivity and corrosion resistance.
With a mounting type of through hole and a straight orientation, this connector is designed for robust and permanent installation on printed circuit boards. Its temperature operating range from -55°C to 105°C allows for use in diverse environmental conditions, assuring performance in challenging applications.
This Multi-Interlock Series connector is ideal for users requiring efficient and secure wire-to-board connectivity, commonly used in industrial controls, laboratory instruments, and machinery requiring durable interlock connections.
Supports 12A current rating and 350V voltage rating. Thermoplastic housing provides insulation and durability. Brass female contacts with tin plating ensure reliable conduction. Through hole and straight orientation for secure PCB mounting.
Wide temperature range from -55°C to 105°C for versatile usage. Multi-Interlock Series connector for secure industrial applications. Suitable for electronic, industrial, laboratory, and commercial uses. Two-row, 13-contact design with 1.27 mm pitch.
Explore the Electronics Components category at EnvMart for more high-quality PCB Sockets and connectors designed for various industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12 amperes and a voltage rating of up to 350 volts.
It features a thermoplastic housing for insulation and durability, with brass female contacts plated with tin for reliable conductivity.
The connector has a fine pitch of 1.27 mm and features 13 female contacts arranged in 2 rows.
It operates reliably in temperatures ranging from -55°C to 105°C, making it suitable for diverse environmental conditions.
This unit is designed for through hole mounting with a straight orientation, ensuring secure installation on printed circuit boards.
The termination type for this socket is solder, which facilitates secure connections to the PCB.
It is ideal for industrial, laboratory, and commercial electronic equipment assembly, particularly for wire-to-board connections.
This model is designed as a wire-to-board connector system, facilitating efficient connectivity.
The country of origin for this PCB socket is India.
This model features a total of 13 contacts, all of which are female.
It belongs to the Multi-Interlock Series, designed for secure connections in electronic assemblies.
The tin plating on the brass contacts ensures reliable electrical conductivity and provides corrosion resistance.
