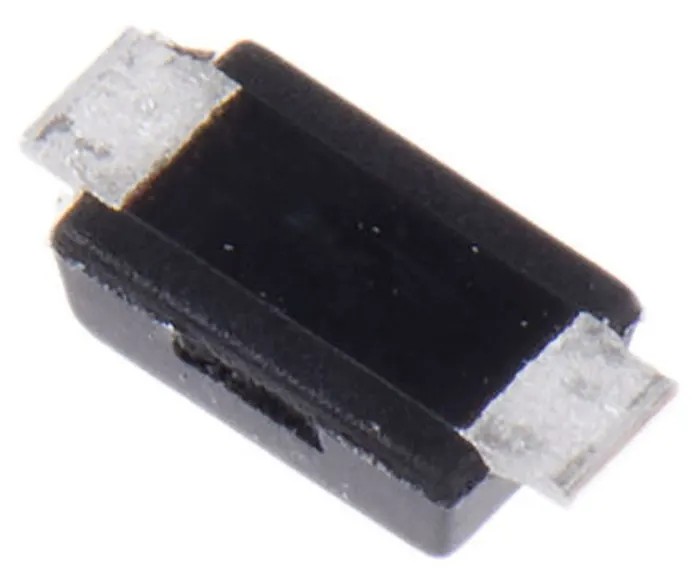

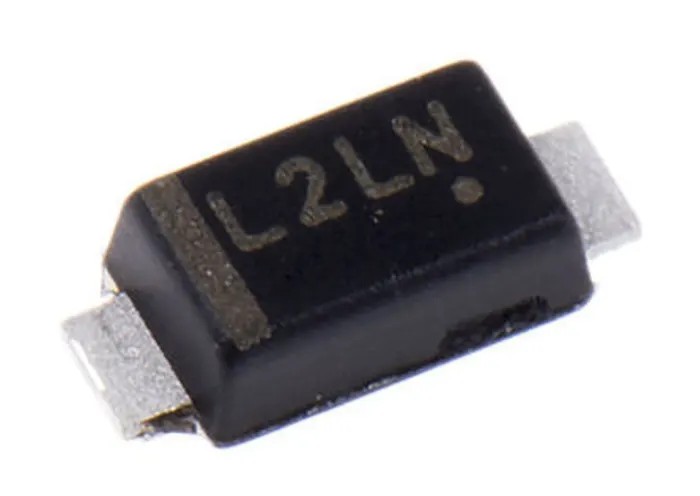

ROHM Zener Diode 36 V 1 W Surface Mount 2-Pin SOD-123FL KDZVTR36B
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 3.62mm |
| Model | KDZVTR36B |
| Mount Type | Surface |
| Series | KDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | Voltage Regulator |
Key Features
- This diode features a single diode configuration ideal for voltage regulation applications.
- Designed for surface mount with a compact form factor of 3.62mm length and 0.9mm height.
- Test current for the diode is 1 mA ensuring reliable performance.
- Maximum reverse leakage current is limited to 10 μA enhancing efficiency and stability.
- It operates reliably up to a maximum temperature of 150 °C supporting harsh industrial environments.
- Widely applicable in electronic circuits requiring stable voltage regulation.
- The diode is part of the KDZV series by ROHM Semiconductor, known for durability and precision.
Product Description
ROHM KDZVTR36B Zener Diode is a high-quality 36 V nominal voltage diode capable of dissipating up to 1 watt of power. It is packaged in a surface-mount 2-pin SOD-123FL configuration, making it ideal for compact and modern PCB designs.
This diode provides reliable voltage regulation with its single diode configuration and low leakage current of 10 μA, ensuring minimal power losses. It is tested at a 1 mA test current for stable operation over a wide operating temperature range up to 150 °C.
Measuring 3.62 mm in length and 0.9 mm in height, the component is suited for industrial, electronic, and communication manufacturing applications that demand precision voltage regulation within compact electronics.
The KDZVTR36B belongs to ROHM’s KDZV series known for robust performance and long-term reliability. This diode is appropriate for power supplies, voltage regulators, and protective circuits in various electronic devices.
This diode features a single diode configuration ideal for voltage regulation applications. Designed for surface mount with a compact form factor of 3.62mm length and 0.9mm height. Test current for the diode is 1 mA ensuring reliable performance.
Maximum reverse leakage current is limited to 10 μA enhancing efficiency and stability. It operates reliably up to a maximum temperature of 150 °C supporting harsh industrial environments. Widely applicable in electronic circuits requiring stable voltage regulation.
The diode is part of the KDZV series by ROHM Semiconductor, known for durability and precision.
This ROHM Zener Diode is an essential component for industrial, electronic manufacturing, telecommunications, and power management applications. For a broad range of voltage regulation needs, explore similar ROHM Semiconductor products and Zener Diode solutions within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 36 V.
This model can dissipate up to 1 watt of power.
It operates reliably up to a maximum temperature of 150 °C.
The diode is packaged in a surface-mount SOD-123FL configuration.
This diode measures 0.9 mm in height and 3.62 mm in length.
The test current for the diode is 1 mA.
The maximum reverse leakage current is limited to 10 μA.
It features a single diode configuration, making it suitable for voltage regulation applications.
It is widely applicable in electronic circuits requiring stable voltage regulation, such as power supplies and voltage regulators.
This diode has 2 pins.
This diode belongs to ROHM's KDZV series.
It is suitable for applications in telecommunications and power management, among others, due to its reliable voltage regulation.
