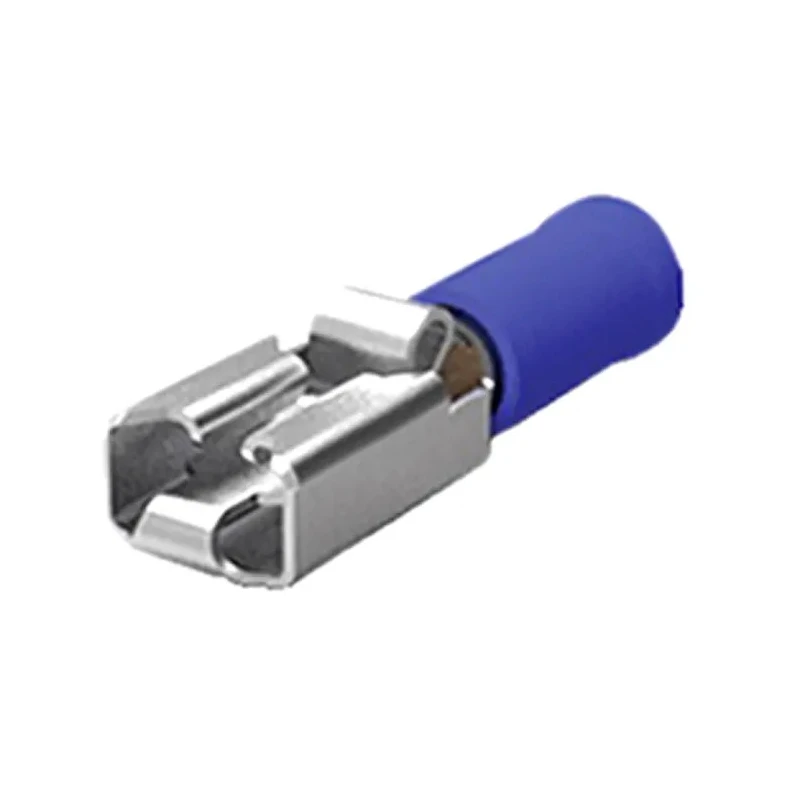

TE Connectivity PIDG Positive Lock .250 EX Blue Insulated Female Spade Connector 6.35 x 0.81 mm Tab Size 165536-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Straight |
| Model | 165536-1 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 24.3mm |
| Contact Material | Brass |
| Series | PIDG Positive Lock .250 EX |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 15.5AWG |
| Maximum Wire Size AWG | 13.5AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Features positive locking system for enhanced connection security.
- Copper sleeve improves wire insulation support after crimping.
- Funnelled wire entry design enables fast and easy wire insertion.
- Serrations in crimp barrel ensure maximum contact and tensile strength.
- Nylon insulation resists hydrocarbons like greases and oils and provides high dielectric strength.
- Suitable for electrical components, industrial, instrumentation, HVAC, appliances, power supplies, lighting, and automotive uses.
- Constructed with tin plated brass contacts and nylon insulated body for durability.
Product Description
TE Connectivity 165536-1 PIDG Positive Lock .250 EX Blue Insulated Female Spade Connector is a high-quality crimp receptacle terminal designed for secure and reliable electrical connections. It features a 6.35 x 0.81 mm tab size and is insulated with blue nylon for easy identification and insulation integrity.
The positive locking mechanism includes a spring that engages with the connector housing ramp to prevent disconnection under mechanical strain or vibration. A locking latch further secures insertion into a mating tab terminal, making it ideal for demanding circuit environments in industrial, HVAC, automotive, and appliance applications.
Constructed of precision-formed tin-plated brass contacts combined with a copper sleeve and nylon insulation, this connector provides excellent conductivity and mechanical strength. The crimp barrel has serrations to maximize contact and tensile strength while the funnelled wire entry allows quick wire insertion. Nylon insulation provides resistance to hydrocarbons such as greases and oils and offers high dielectric strength.
Positive locking system ensures a secure connection. Copper sleeve enhances wire support post-crimp. Funnelled wire entry aids fast wire insertion. Serrated crimp barrel for maximum contact and strength. Durable nylon insulation resists oils and greases.
Designed for industrial, instrumentation, HVAC, automotive, and power supply applications. Tin-plated brass contacts provide corrosion resistance and conductivity.
This robust PIDG FASTON .250 EX terminal is ideal where reliable mechanical and electrical connection is critical. It is well suited for use in environments exposed to vibration and mechanical loads, ensuring consistent performance over time. Suitable industries include electrical component manufacturing, industrial instrumentation, HVAC systems, appliance manufacturing, power supplies, lighting, and automotive wiring.
Explore more high-quality wire terminals and connectors in the Electronics & Electricals category on EnvMart for your specialized wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 6.35 x 0.81 mm.
This model can accommodate a maximum wire size of 2.5 mm² or 13.5 AWG.
It features nylon insulation, which provides resistance to hydrocarbons like greases and oils and offers high dielectric strength.
The overall length of this female spade connector is 24.3 mm.
The connector is constructed with tin-plated brass contacts and a nylon insulated body.
The positive locking mechanism prevents disconnection under mechanical strain or vibration, ensuring a secure connection.
The minimum wire size for this connector is 1.5 mm² or 15.5 AWG.
This connector is suitable for applications in industrial, instrumentation, HVAC, automotive, appliances, power supplies, and lighting.
The funnelled wire entry design allows for fast and easy wire insertion, simplifying the installation process.
The termination type of this connector is crimp, which ensures a secure electrical connection.
The contact plating material is tin, which provides corrosion resistance and enhances conductivity.
The orientation of this model is straight, allowing for straightforward installation in various applications.
