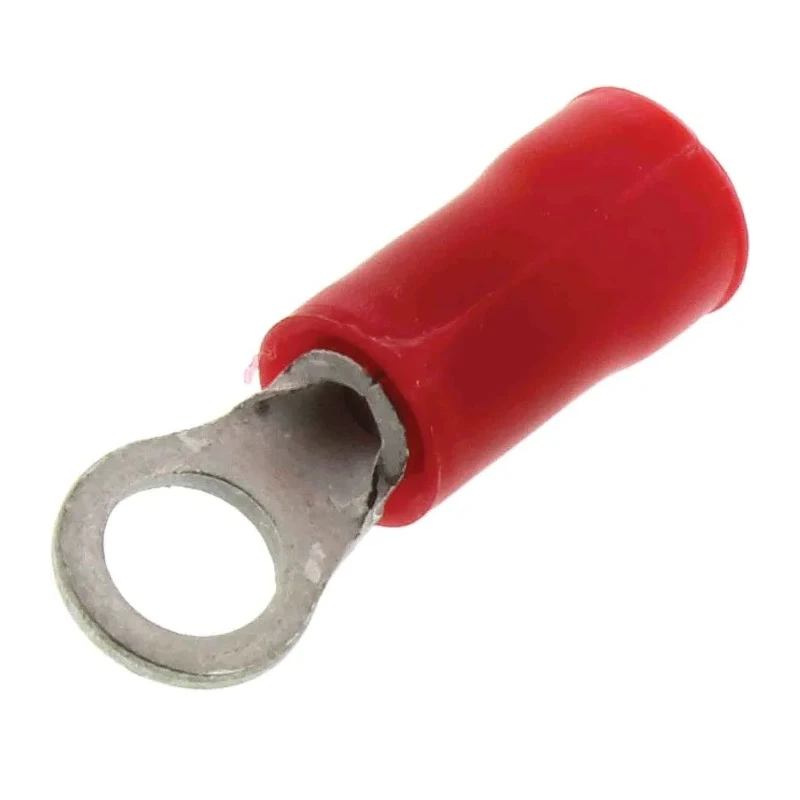

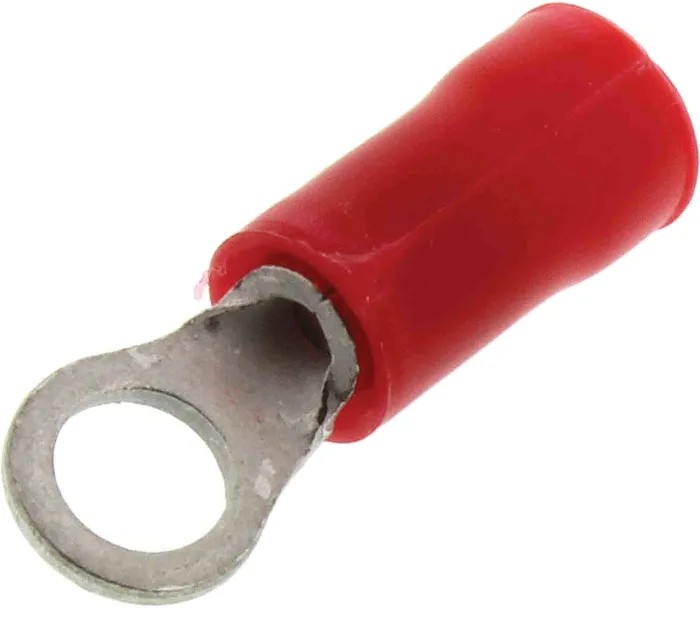

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire, Red 342104-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 342104-1 |
| Insulation | Insulated |
| Overall Length | 21.87mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 90°C |
| Insulation Material | Vinyl |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.6mm |
| Inner Ring Diameter | 2.5mm |
| Stud Size | M5 |
Key Features
- High conductivity tin-plated copper contact ensuring reliable electrical performance.
- Vinyl insulation sleeve with 94V-0 rating for excellent dielectric strength.
- Overall length of 21.87 mm and ring contact dimensions suited for M5 studs.
- Serrated inner barrel provides maximum electrical contact and tensile strength after crimping.
- Suitable for wire sizes from 0.3 mm² to 1.3 mm² with maximum operating temperature of 90°C.
- Contact plating is tin to prevent corrosion and enhance durability.
- Available in red color to indicate wire gauge and application standardization.
Product Description
TE Connectivity 342104-1 PLASTI-GRIP insulated ring terminal offers a robust and reliable solution for professional electrical wire termination requiring M5 stud size compatibility and wire sizes ranging from 22 AWG to 16 AWG. This red insulated ring terminal features a high conductivity copper core with tin plating for optimal electrical and mechanical performance.
The vinyl insulation sleeve is rated 94V-0 providing excellent dielectric strength and protection against electrical faults. The overall length of 21.87 mm with precise outer (5.6 mm) and inner ring diameters (2.5 mm) makes it an ideal fit for M5 studs in various electrical and industrial applications.
The serrated inner barrel of the ring tongue connector promotes maximum electrical contact and tensile strength post crimping, securing wire reliability even in vibration-prone industrial environments. The funnel entry design facilitates easy insertion of stripped wire, improving installation speed and precision.
Designed to operate safely up to 90°C, the terminal is suitable for a wide range of electrical equipment, including power connectors used in industrial automation, automotive, and electrical control panels. The terminal supports wire cross sections from 0.3 mm² to 1.3 mm², conforming to common wiring standards.
These terminals comply with RoHS directives, ensuring environmental and safety compliance. The tin-plated copper construction and vinyl insulation offer durability and long-term performance in demanding applications.
High conductivity copper contact with tin plating for corrosion resistance. Vinyl insulation meets 94V-0 standard for electrical protection. M5 stud size ring terminal with precise diameter measurements. Suitable for wire sizes 22 AWG (0.3 mm²) to 16 AWG (1.3 mm²).
Overall length designed at 21.87 mm for efficient connections. Maximum operating temperature of 90°C for safe use in electrical assemblies. Serrated barrel design enhances mechanical retention and electrical contact.
Ideal for use in electronics, industrial automation, manufacturing, and power distribution applications, this terminal provides dependable connectivity for wire terminations requiring insulated Ring Terminals.
Explore more high-quality connector products in the Electronics & Electricals Power Connectors category at EnvMart to meet your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 90°C.
This model is suitable for wire sizes ranging from 22 AWG (0.3 mm²) to 16 AWG (1.3 mm²).
The outer ring diameter is 5.6 mm, and the inner ring diameter is 2.5 mm, making it compatible with M5 studs.
The contact material of this terminal is copper, which is tin-plated to enhance corrosion resistance.
The overall length of this insulated ring terminal is 21.87 mm.
The insulation material used in this terminal is vinyl, which meets the 94V-0 standard for dielectric strength.
The serrated inner barrel design promotes maximum electrical contact and tensile strength after crimping, ensuring reliable connections.
Yes, this terminal complies with RoHS directives, ensuring environmental and safety compliance.
This ring terminal is suitable for various applications including industrial automation, automotive, and electrical control panels.
The thickness of the insulation on this terminal is 0.79 mm.
This terminal belongs to the PLASTI-GRIP series by TE Connectivity.
This product is manufactured in India.
