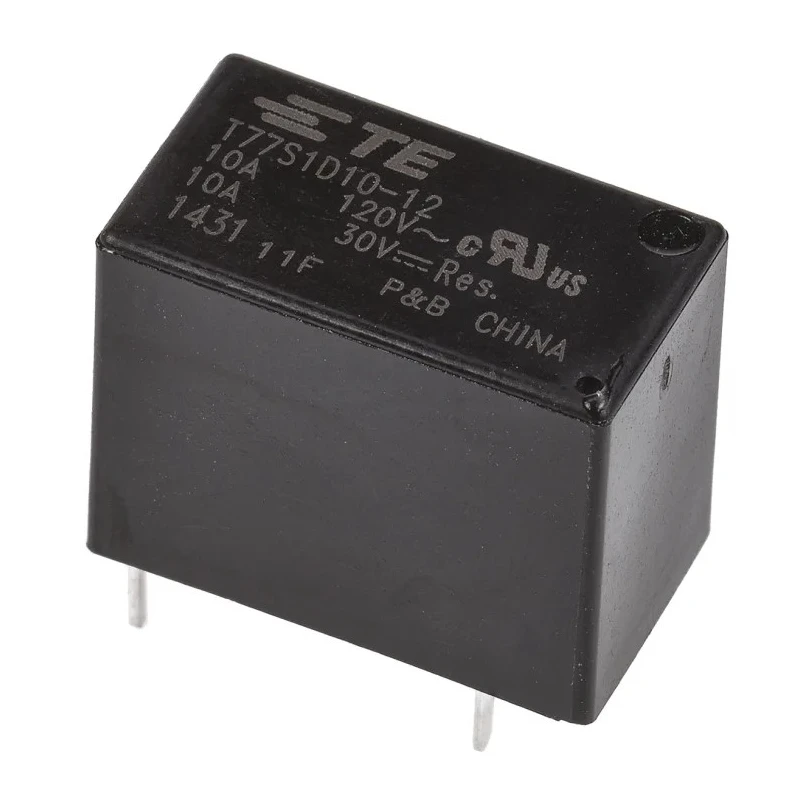

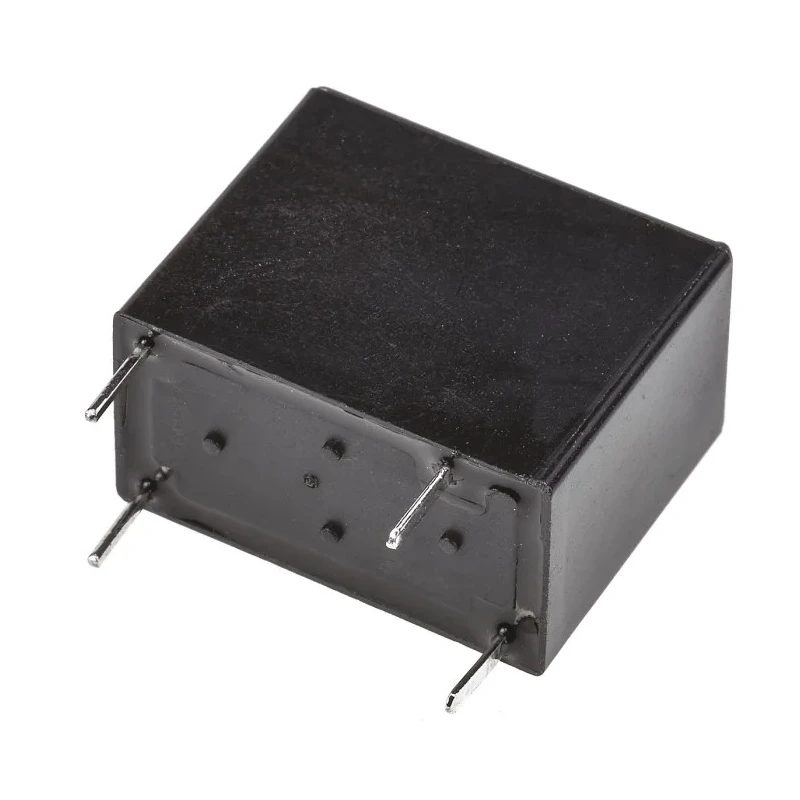

TE Connectivity T77 Series Power Relay 12V DC Coil 10A Switching Current SPST PCB Mount T77S1D10-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | T77S1D10-12 |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T77 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 12V dc |
Key Features
- Designed with a T77 series housing for durability and reliability.
- Uses silver alloy contact material to ensure superior conductivity.
- Operates efficiently within temperature ranges from -30°C to 85°C.
- Compact dimensions of 18.2mm length, 14.7mm height, and 10.2mm width enable easy PCB installation.
- Terminal type is solder for secure electrical connections.
- Coil resistance rated at 320Ω for optimal coil control.
- Immersion-cleanable case suitable for automated manufacturing environments.
- Compliance with RoHS standards ensures environmental safety.
Product Description
TE Connectivity T77S1D10-12 is a high-quality power relay designed for electronic and electrical applications requiring stable and reliable switching. With a coil voltage of 12V DC and a switching current capacity of 10A, this relay is suitable for controlling circuits within industrial automation, home appliances, and electronic equipment.
The relay features a single-pole, single-throw (SPST) contact configuration and is mounted directly onto PCBs, facilitating compact and efficient circuitry layouts. Its silver alloy contacts provide excellent electrical conductivity and durability over prolonged use, while the immersion-cleanable case supports high manufacturing standards.
Designed to operate between -30°C and 85°C, this relay withstands varying environmental conditions without performance loss. The T77 series relay's compact size with dimensions 18.2mm (L) x 14.7mm (H) x 10.2mm (W) optimizes space in circuit board designs. Solder terminal type ensures secure connection during assembly.
Its coil resistance of 320 ohms aids in regulating coil current, enhancing operational efficiency. The product is RoHS compliant, meeting environmental regulations for hazardous substances in electronic components.
Power relays like the T77S1D10-12 are essential in industrial automation, manufacturing equipment, and electronic control systems that require reliable switching of DC loads. This relay provides precise operation in low voltage DC circuits, making it ideal for control boards and diverse electrical applications.
Designed with a T77 series housing for durability and reliability. Uses silver alloy contact material to ensure superior conductivity. Operates efficiently within temperature ranges from -30°C to 85°C. Compact dimensions of 18.2mm length, 14.7mm height, and 10.2mm width enable easy PCB installation.
Terminal type is solder for secure electrical connections. Coil resistance rated at 320Ω for optimal coil control. Immersion-cleanable case suitable for automated manufacturing environments. Compliance with RoHS standards ensures environmental safety.
Explore more Power Relay options and trusted brands on EnvMart to support your industrial and electronic product needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It has a maximum switching current capacity of 10A.
The dimensions are 18.2mm in length, 14.7mm in height, and 10.2mm in width.
This relay features a single-pole, single-throw (SPST) contact configuration.
The coil resistance is rated at 320Ω.
It operates efficiently within a temperature range of -30°C to 85°C.
The relay uses solder terminals for secure electrical connections.
Yes, it complies with RoHS standards for environmental safety.
The contacts are made of silver alloy to ensure superior conductivity.
This model is designed for PCB mounting.
Yes, it features an immersion-cleanable case suitable for automated manufacturing.
It is suitable for controlling circuits in industrial automation, home appliances, and electronic equipment.
