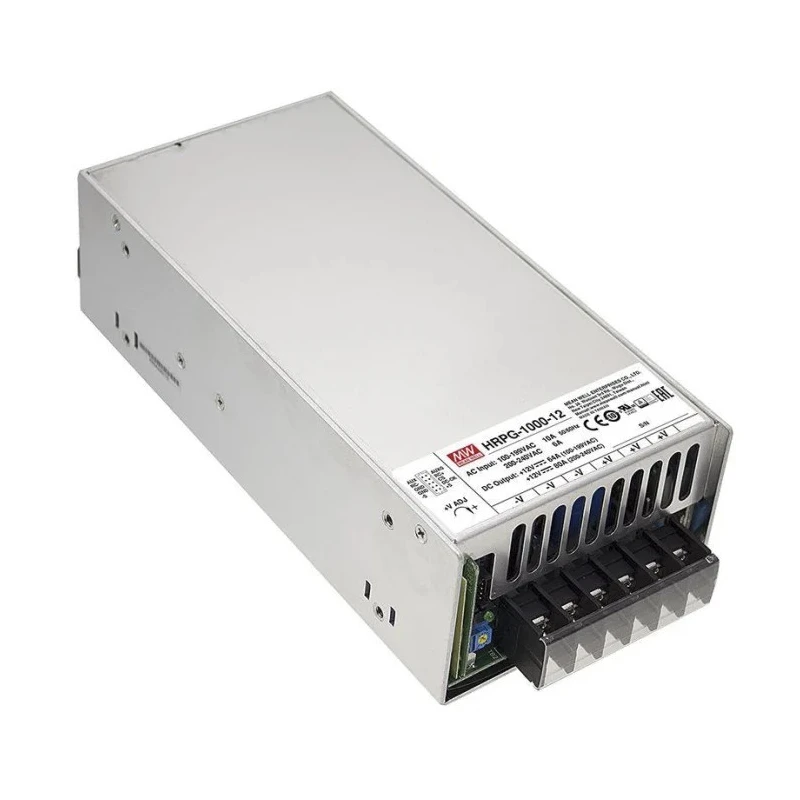

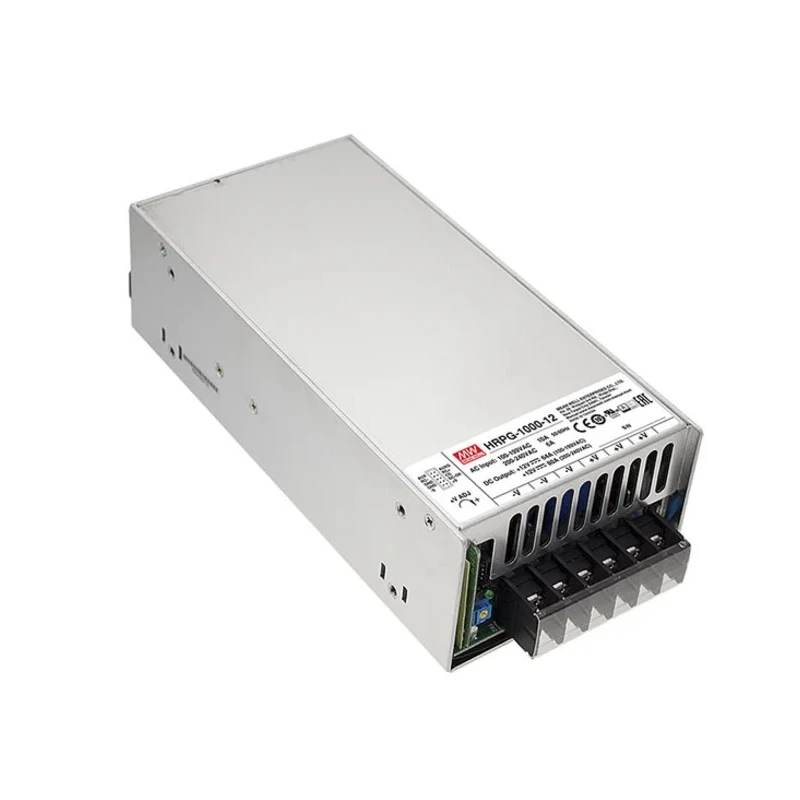

MEAN WELL 48V dc 1.008 kW Switching Power Supply HRPG-1000-48
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 1.008kW |
| Efficiency | 94% |
| Dimensions | 218 x 105 x 63.5mm |
| Length | 218mm |
| Model | HRPG-1000-48 |
| Depth | 63.5mm |
| Gross Weight | 1.5kg |
| Width | 105mm |
| Mount Type | Chassis |
| Series | HRPG-1000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Protections | short circuit, overload, over voltage, over temperature |
| Standards/Approvals | UL 6681, TUV BS ENEN 6681, EAC TP TC 004, ASNZS 668.1 |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 21A |
| Minimum Input Voltage | 90V ac |
| Remote control functions | remote ON/OFF, remote sense, DC OK signal |
Key Features
- Operates with a wide input voltage range from 90V ac to 370V dc.
- Compact chassis mount design measuring 218 x 105 x 63.5 mm for easy integration.
- High efficiency up to 94% with built-in active power factor correction.
- Equipped with remote control functions including ON/OFF, remote sense, and DC OK signal.
- Robust protections against short circuit, overload, over voltage, and over temperature.
- Stable operation in wide temperature range from -40°C to 70°C.
- Provides auxiliary 5V at 0.3A output for additional needs.
- Capable of current sharing for parallel connection up to 4000W total power.
Product Description
MEAN WELL HRPG-1000-48 is a high-performance switching power supply designed to deliver 48V dc at a power rating of 1.008 kW. This chassis-mounted unit features a compact footprint of 218mm length, 105mm width, and 63.5mm depth, making it suitable for various industrial applications.
It operates efficiently over a wide input voltage range of 90V ac to 370V dc and maintains high efficiency of up to 94% with built-in active power factor correction. The power supply supports a single output channel with an output current of 21A and auxiliary 5V @ 0.3A output for control or signaling purposes.
The HRPG-1000-48 comes with multiple remote control functions, including remote ON/OFF, remote sense, and DC OK signal, enhancing its usability in complex control systems. It ensures system protection against short circuit, overload, over voltage, and over temperature conditions, promoting system reliability and longevity.
Its wide operating temperature range from -40°C to 70°C allows deployment in harsh environments. Forced air cooling is provided by an internal DC fan to maintain optimal operating temperatures even under continuous high load.
This power supply series supports current sharing for parallel operation, allowing power scaling up to 4000W. Such versatility makes it ideal for industrial control systems, electric motors, communication systems, and network equipment.
Operates over a wide input voltage range of 90V ac to 370V dc. High efficiency of up to 94% with active PFC built-in. Remote control support including ON/OFF and DC OK signal. Robust protection features ensure system safety.
Compact chassis mount design with forced air cooling. Wide operating temperature range from -40°C to 70°C. Auxiliary 5V at 0.3A output available. Current sharing capability for up to 4000W parallel power.
With these features, the MEAN WELL HRPG-1000-48 switching power supply fits diverse industrial and communication applications necessitating reliable DC power sources. Browse the Electronics & Electricals Power Supply category at EnvMart for related power supply products and accessories.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HRPG-1000-48 has a power rating of 1.008 kW.
It operates with an efficiency of up to 94%.
The dimensions are 218 mm in length, 105 mm in width, and 63.5 mm in depth.
It operates over a wide input voltage range from 90V AC to 370V DC.
This model supports chassis mounting.
It includes remote ON/OFF, remote sense, and DC OK signal functions.
The maximum output voltage is 48V DC.
It features protections against short circuit, overload, over voltage, and over temperature.
The operating temperature range is from -40°C to 70°C.
The output current is 21A.
Yes, it provides an auxiliary 5V output at 0.3A.
It complies with UL 6681, TUV BS ENEN 6681, EAC TP TC 004, and ASNZS 668.1 standards.
