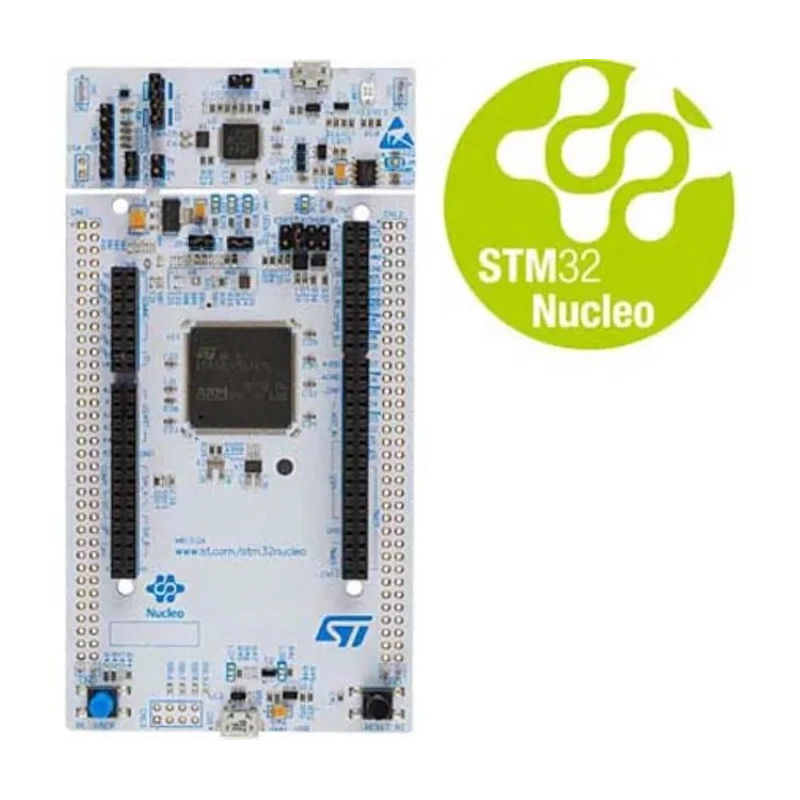

STMicroelectronics STM32 Nucleo-144 MCU Development Board with STM32L496ZGT6P ARM Cortex M4F Microcontroller NUCLEO-L496ZG-P

STMicroelectronics NUCLEO-L496ZG-P MCU Development Board features the STM32L496ZGT6P 32-bit ARM Cortex-M4F microcontroller running at 80 MHz with 1MB Flash memory and 320KB SRAM, offering high performance and ultra-low power consumption suitable for embedded development.

This development board supports the ARM mbed ecosystem and includes an integrated ST-LINK/V2-1 debugger and programmer, facilitating efficient programming and debugging via the SWD interface. It is compatible with multiple Integrated Development Environments such as IAR, Keil, GCC-based tools, and ARM mbed online resources.

The board extends connectivity through Arduino Uno V3 compatible ST Zio connectors, enabling access to numerous peripherals and expansion shields. Additional connectivity is provided by ST morpho extension headers, granting full access to all microcontroller GPIO pins.

Featuring a versatile power supply with an external Switch Mode Power Supply Unit (SMPSU) and USB OTG 2.0 full-speed support via a micro-AB connector, the board supports multiple communication protocols including USART, I²C, SPI, CAN, USB, LIN, SDMMC, and more. It is also equipped with capacitive sensing channels for touchkey applications, an LCD driver compatible with 8x40 or 4x44 segment displays, and camera interface capabilities.

User interaction components include three LEDs (power, USB communication, user) and reset and user pushbuttons. An energy benchmark of 217 ULPBENCH™ score demonstrates its ultra-low-power efficiency.

The board is ideal for prototyping and development in embedded, industrial, consumer electronics, IoT, and educational applications, offering a flexible and cost-effective platform with extensive software and hardware resources.

Supports STM32 comprehensive HAL software and various IDEs for development. Integrated ST-LINK/V2-1 debugger/programmer with SWD interface. Arduino Uno V3 compatible ST Zio connectors and ST morpho headers for flexible expansion.

Ultra-low-power ARM Cortex-M4F microcontroller operating at 80 MHz. Includes USB OTG 2.0 micro-AB connector for communication and power. Wide range of serial interfaces including USART, SPI, I2C, CAN, USB, and more. Touch sensing, camera interface, and LCD driver capabilities.

Energy-efficient design with an external SMPSU power supply. Explore EnvMart for extensive electronics Development Boards and accessories by STMicroelectronics and other trusted brands.
