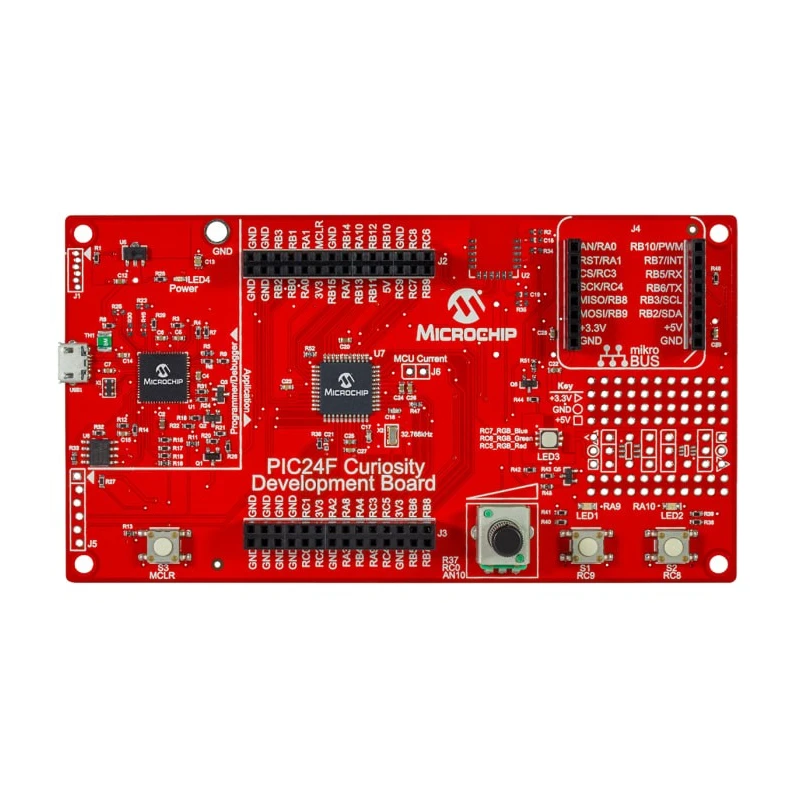

Microchip Curiosity PIC24F Development Board with 32MHz PIC24FJ128GA204 16-bit XLP Microcontroller DM240004

Microchip DM240004 Curiosity PIC24F Development Board is a comprehensive 16-bit rapid prototyping platform targeting first-time users and makers. It integrates the PIC24FJ128GA204 microcontroller featuring a 32MHz clock speed, 128KB Flash, and 8KB RAM, equipped with an on-chip cryptographic engine enabling secure data handling and authentication.

The development board includes an onboard PICkit programming and debugging circuit, ensuring convenient firmware development. It operates with a +3.3V MCP1703 voltage regulator and provides multiple user inputs and outputs such as two pushbuttons, two LEDs, an RGB LED, and a 10k potentiometer for analog input, enhancing interactive application development.

Accessible GPIO pins are available through headers, and a small prototyping area allows additional custom circuitry. It features a socket footprint for an optional BM71 Bluetooth Low Energy radio module, enabling wireless connectivity expansions. The mikroBUS socket further supports Click modules for enhanced functionality and rapid integration of external modules.

The board is powered via the microUSB connector on the PICkit On-Board circuit, facilitating easy connectivity and power supply from common USB sources. This development tool is fully compatible with Microchip's MPLAB Xpress and MPLAB X IDE environments, as well as the XC16 compiler and MPLAB Code Configurator, supporting seamless firmware development workflows.

Equipped with a 32MHz PIC24FJ128GA204 16-bit XLP microcontroller with 128KB Flash and 8KB RAM. On-chip hardware cryptographic engine for robust data security and authentication. Onboard PICkit programming/debugger and +3.3V voltage regulator.

Includes multiple user interfaces: pushbuttons, LEDs, RGB LED, and 10k potentiometer for analog input. Features GPIO headers and a small prototyping area for expanded development. Supports optional BM71 Bluetooth LE radio module and mikroBUS socket for Click module expansion.

Powered from microUSB via PICkit On-Board circuit. Fully compatible with MPLAB development tools and XC16 compiler.

This development board is ideal for industrial, educational, and hobbyist applications involving embedded system design, firmware development, cryptographic security implementations, and rapid prototyping. It fits well within environments requiring microcontroller development and testing, including laboratory research, product development, and educational training in electronics.
