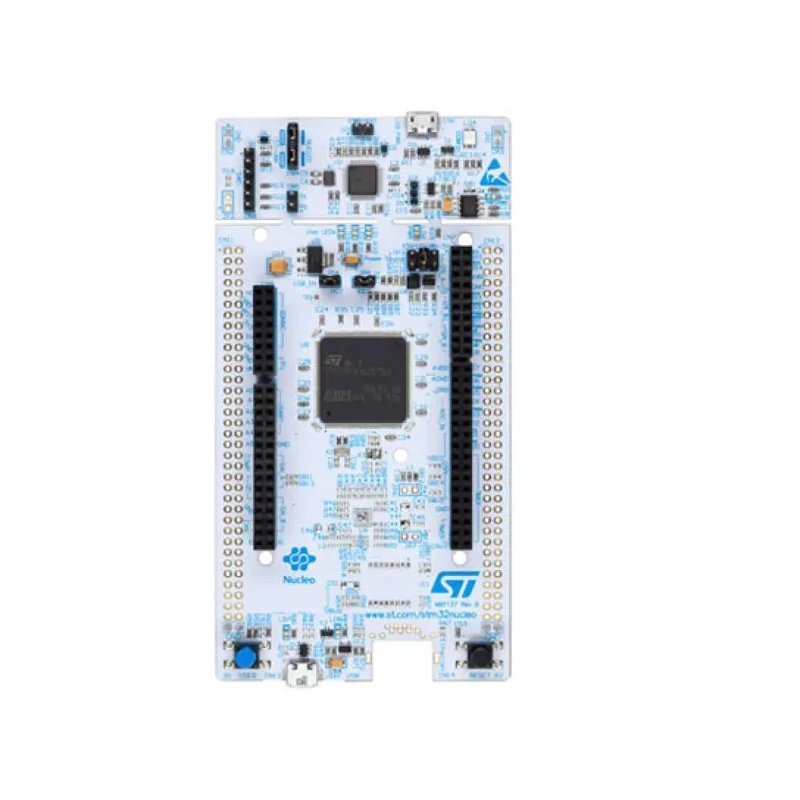

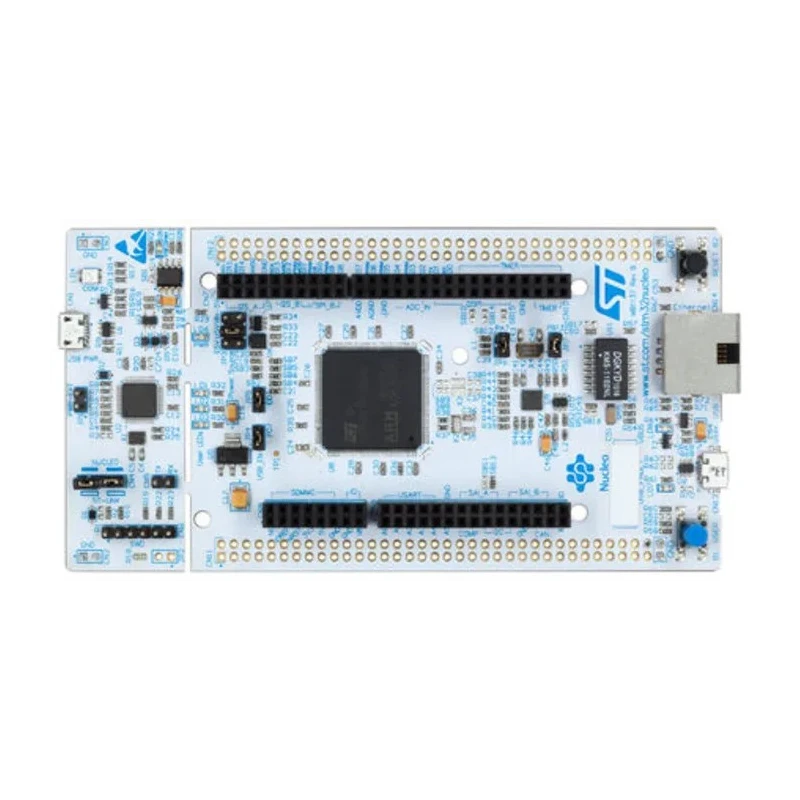

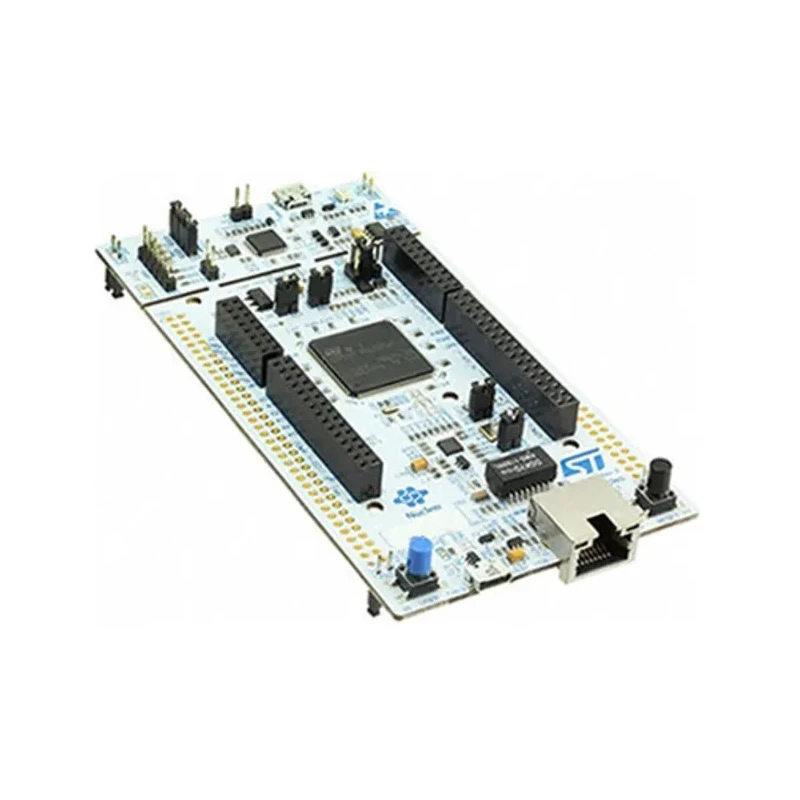

STMicroelectronics STM32 Nucleo-144 Microcontroller Development Board 100MHz ARM Cortex M4F MCU NUCLEO-F412ZG

STMicroelectronics NUCLEO-F412ZG microcontroller development board is a high-performance platform based on the STM32F412ZGT6 microcontroller.

This board integrates an ARM Cortex-M4F core operating at 100 MHz and comes with 1MB of flash memory and 256KB SRAM, ideal for embedded system prototyping and development across industrial, educational, and commercial applications.

The design includes a Zio connector extending Arduino Uno V3 compatibility, allowing seamless integration with a wide variety of shields and peripherals. Additionally, ST morpho headers grant full GPIO access to facilitate custom hardware extensions.

For development and debugging, the on-board ST-LINK/V2-1 debugger/programmer provides a user-friendly interface through an SWD connector and supports several software development environments including IAR, Keil, GCC-based toolchains, and the ARM mbed online platform.

Connectivity is robust, offering up to 17 serial communication interfaces such as USART, IrDA, I2C, SPI, LIN, CAN, USB, I2S, and SDIO interfaces, making it well-suited for diverse communication protocols.

Power supply options include USB OTG or FS device powered through a micro-AB connector, supporting flexible deployment scenarios.

The board features additional peripherals such as a true random number generator, CRC calculation unit for data integrity, real-time clock with subsecond resolution, 96-bit unique device ID, and three LEDs indicating power, USB communication, and user status. User and reset pushbuttons are also included.

This development board belongs to the STM32F4 Series of 32-bit ARM Cortex-M4 microcontrollers featuring DSP and FPU instructions, tailored for high-performance embedded computing needs.

The NUCLEO-F412ZG is ideal for a variety of industrial, laboratory, robotics, automation, and educational applications, providing extensive hardware and software resources for rapid development.

The board features an ARM Cortex-M4F core running at 100 MHz with 1MB flash memory and 256KB SRAM. It includes the Zio connector for Arduino Uno V3 compatibility and ST morpho headers providing extensive GPIO access. Integrated ST-LINK/V2-1 debugger and programmer simplifies development and debugging tasks.

The board supports up to 17 serial communication interfaces including USART, IrDA, I2C, SPI, LIN, CAN, USB, I2S, and SDIO. Flexible board power supply options include USB OTG or FS device via micro-AB connector. Additional features include a true random number generator, CRC calculation unit, RTC with subsecond accuracy, and a 96-bit unique ID.

Three LEDs for power, USB communication, and user feedback enhance usability. Comprehensive software support is provided including HAL libraries, software examples, and compatibility with multiple IDEs such as IAR, Keil, GCC, and ARM mbed.
