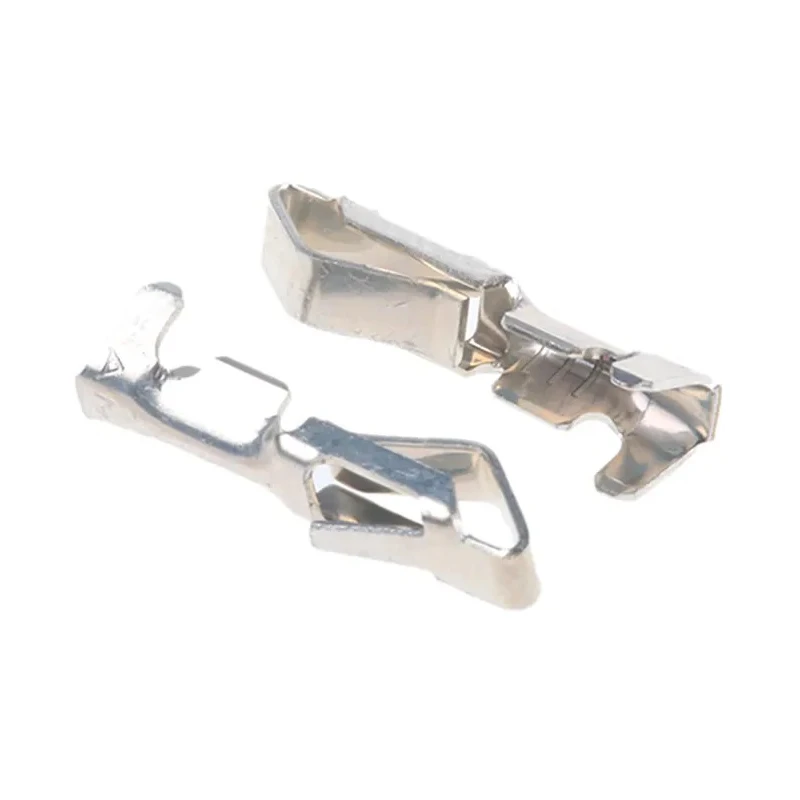

TE Connectivity SL-156 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Brass Contact, Bright Tin 3-640706-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 5.72mm |
| Gender | Female |
| Contact Material | Brass |
| Series | SL-156 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | SL-156 Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 3mΩ |
| TE Connectivity SL Series Female PCB Connector ContactBrand | TE Connectivity |
Key Features
- The terminal supports a maximum current of 5 amperes.
- Compatible with SL-156 connector housing series.
- Constructed from brass contact material with bright tin plating for corrosion resistance.
- Crimp termination type ensures secure wire connection.
- Operates reliably between -55°C to 105°C temperature range.
- Compact length of 5.72 mm allows for tight fit in PCB assemblies.
- Offers a maximum contact resistance of 3 milliohms.
- Suitable for industrial and electronic component assembly applications.
Product Description
TE Connectivity 3-640706-1 SL-156 Series Female Crimp Terminal is a precision-engineered female crimp contact designed for use with SL-156 connector housings. It features a brass contact construction plated with bright tin to provide excellent conductivity and corrosion resistance, making it suitable for demanding electronic and industrial environments.
Rated to carry a maximum current of 5 amperes, this crimp terminal accommodates wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.9 mm²) maximum, providing versatility for various wiring configurations. The crimp termination type ensures a secure and reliable mechanical and electrical connection, facilitating efficient assembly processes.
Designed for robust operation, this terminal can withstand temperatures from -55°C up to 105°C, suitable for diverse environmental conditions encountered in manufacturing, industrial machinery, automation, and electronics applications. The compact length of 5.72 mm enables it to fit snugly in SL-156 connector housings and associated PCB connectors.
The maximum contact resistance is maintained at 3 milliohms, ensuring high-quality signal and power transmission with minimal losses. This crimp terminal supports stringent quality and engineering standards, although no specific certifications are listed.
The terminal is compatible with SL-156 series connector housings for seamless integration. Material selection and plating assure durability and long-term performance. Operating temperature range supports wide application environments.
Crimp termination style allows for quick and reliable wire connections. Compact size makes it suitable for space-constrained PCB assemblies. Low contact resistance ensures efficient electrical performance. Ideal for industrial, electronics manufacturing, and automated assembly uses.
Explore more from TE Connectivity and related Crimp Contacts and connectors to support your industrial and electronic component requirements with confidence on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal supports a maximum current of 5 amperes.
It accommodates wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.9 mm²) maximum.
The terminal operates reliably between -55°C to 105°C.
The compact length of this model is 5.72 mm.
It features a crimp termination type, ensuring a secure wire connection.
The contact is constructed from brass and plated with bright tin for corrosion resistance.
Yes, it is compatible with SL-156 connector housings.
The maximum contact resistance is 3 milliohms.
It is suitable for industrial and electronic component assembly applications.
The terminal is manufactured in India.
This model is a female crimp terminal.
Key features include a maximum current rating of 5A, a temperature range of -55°C to 105°C, and compatibility with SL-156 connector housings.
