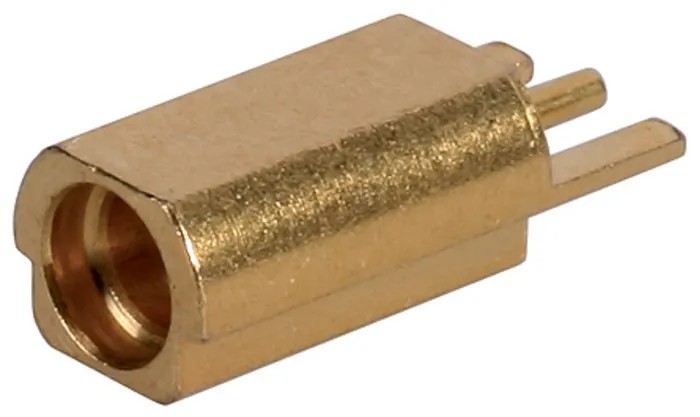

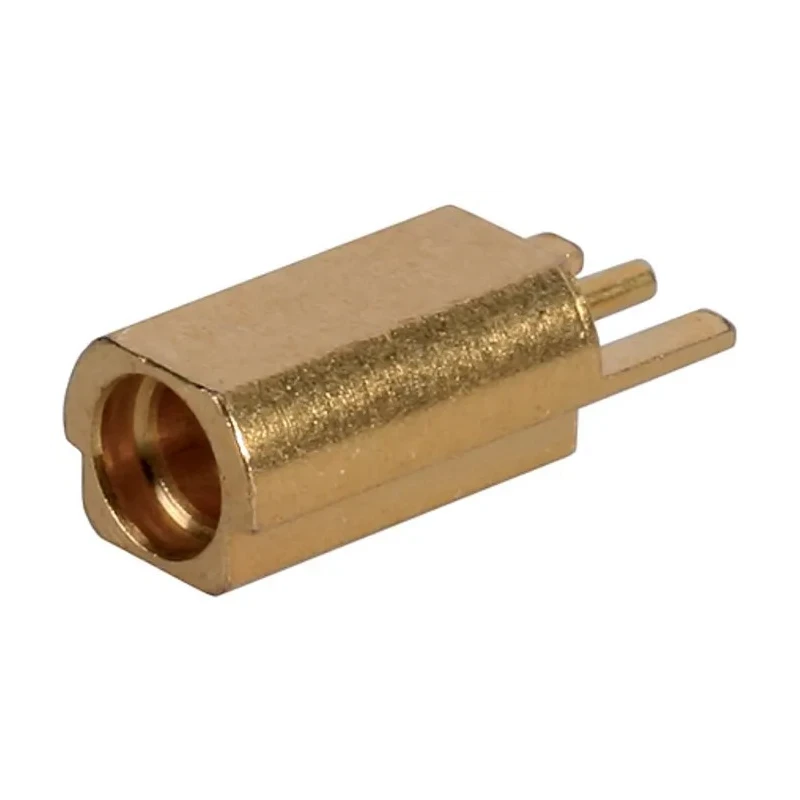

Huber+Suhner MMCX Series Coaxial Connector Surface Mount Female MCX, 50 Ω Impedance, Straight Body 82_MMCX-S50-0-2/111_KE
Specifications
| Country of Origin | Switzerland |
|---|---|
| Size | Standard |
| Brand | Huber+Suhner |
| Orientation | Straight |
| Model | 82_MMCX-S50-0-2/111_KE |
| Mount Type | Surface |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
| RS PRO Coaxial Connector PCB Female MCX, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- The connector features a straight body for easy PCB integration.
- Gold over nickel plating ensures excellent conductivity and corrosion resistance.
- Beryllium copper contacts are gold plated for durability and signal integrity.
- Surface mount type allows for SMT reflow soldering compatibility.
- Operates reliably in temperatures from -55°C to 155°C.
- Designed for low RF leakage and impedance matching in high-frequency applications.
- Ideal for use in electronic components, power & connectors assembly.
- Originates from Switzerland ensuring high-quality manufacturing standards.
Product Description
Huber+Suhner 82_MMCX-S50-0-2/111_KE MMCX Series Coaxial Connector is a surface mount female MCX coaxial connector designed for reliable RF connectivity with impedance of 50 Ω and a maximum operating frequency of 6 GHz. Its straight body design enables seamless mounting on SMT PCBs via solder termination, making it suitable for compact and high-frequency electronic assemblies.
The connector features a gold over nickel body plating and beryllium copper contacts plated with gold over nickel, which contribute to stable electrical performance, corrosion resistance, and durability over time. Its polarity is normal, and the standard size fits typical PCB layouts requiring MMCX connectors.
Engineered to operate efficiently under temperatures from -55°C to 155°C, it supports demanding industrial and commercial applications including telecommunications, instrumentation, and power connectors assemblies.
The MMCX series from Huber+Suhner provides a reliable snap-on coupling mechanism that ensures consistent electrical parameters and low RF leakage, suitable for applications from DC signals to 6 GHz frequency.
The connector offers a compact form factor suited for space-constrained assemblies. Body plating of gold over nickel enhances environmental resistance. Beryllium copper contact material ensures electrical reliability. Surface mount termination type compatible with standard SMT processes.
Supports operation in harsh temperature environments ranging between -55°C and 155°C. Designed specifically as a female connector with straight orientation. Offers impedance matching for signal integrity in RF applications.
Manufactured in Switzerland assuring premium quality standards.
This coaxial connector is ideal for use in electronics manufacturing, telecommunications equipment, laboratory instrumentation, and power distribution components where precise, high-frequency signal transmission is essential.
Explore our extensive selection of Coaxial Connectors and components at EnvMart to find the perfect fit for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 6 GHz, making it suitable for high-frequency applications.
This model has an impedance rating of 50 Ω, which is standard for many RF applications.
It can operate reliably in temperatures ranging from -55°C to 155°C, suitable for harsh environments.
The connector uses a solder termination type, allowing for surface mount technology (SMT) integration.
The contacts are made of beryllium copper and are plated with gold over nickel for improved conductivity and durability.
This model features a straight body orientation, facilitating easy PCB integration.
It originates from Switzerland, ensuring adherence to high-quality manufacturing standards.
The body is plated with gold over nickel, which enhances corrosion resistance and conductivity.
It is designed for use in telecommunications, instrumentation, and power connector assemblies, particularly where high-frequency signal transmission is required.
This model is a female connector, suitable for various RF connectivity needs.
The connector is designed to fit standard PCB layouts that require MMCX connectors.
Yes, the surface mount type allows for compatibility with SMT reflow soldering processes.
