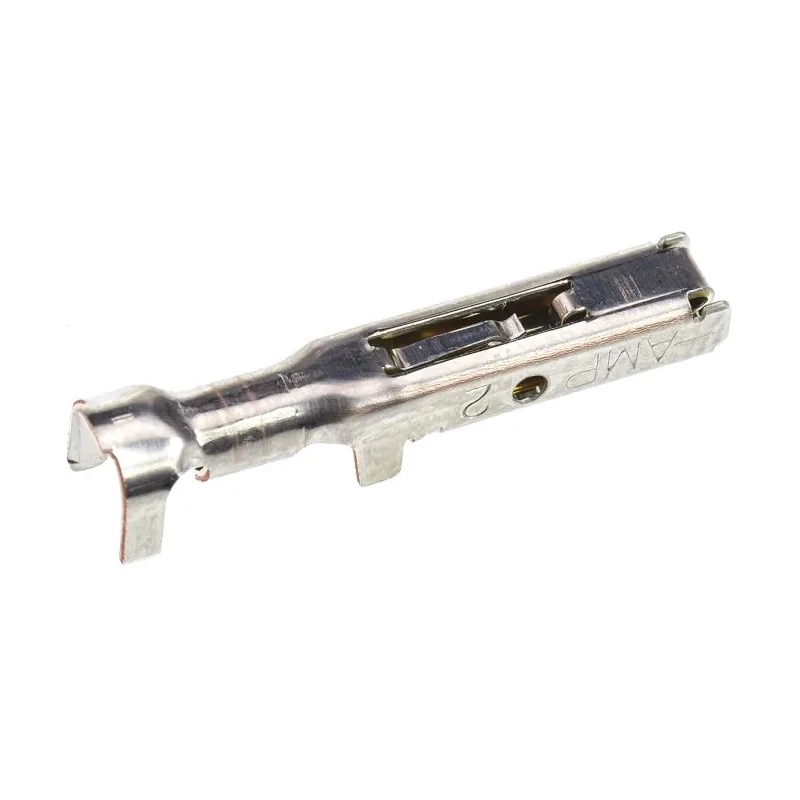

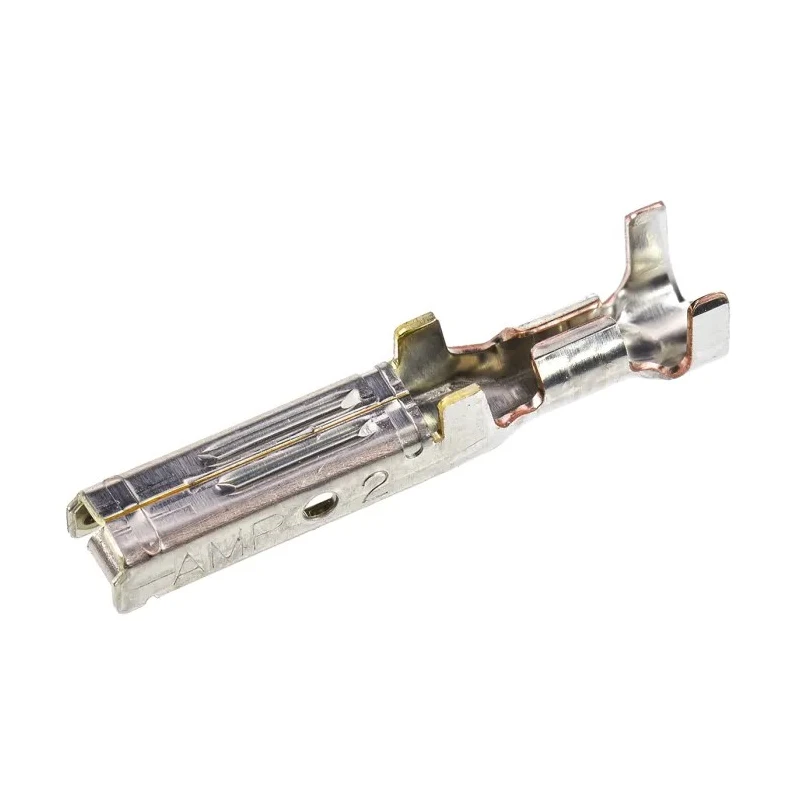

TE Connectivity Dynamic 3000 Series Female Crimp Terminal 20 AWG Min Crimp 16 AWG Max 15A Current 175218-2
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 17.8mm |
| Model | 175218-2 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 3mΩ |
Key Features
- Designed for use with Dynamic 3000 Connector Housings.
- Gold plated copper alloy contacts ensure reliable electrical conductivity.
- Supports wire sizes from 0.5 mm² (20 AWG) to 1.25 mm² (16 AWG).
- Features a twist resistant box style with three points of contact for electrical reliability.
- Termination is by crimp method offering secure connection.
- Operates reliably between -55°C and 105°C temperature range.
- Contact resistance is maximally 3 milliohms ensuring efficient current flow.
- High current capacity of up to 15 amps suitable for industrial applications.
Product Description
TE Connectivity 175218-2 Dynamic 3000 Series Female Crimp Terminal is engineered for high-performance electrical connections in industrial and electronic equipment. This terminal is designed for Dynamic 3000 connector housings and supports wire sizes ranging from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²), delivering a high current capacity of 15 amps.
The contact is crafted from copper alloy with a gold plating that minimizes resistance and maximizes conductivity, ensuring reliable signal and power transmission. Its twist resistant box style and three contact points increase electrical reliability and security of the connection.
Termination is by crimping, providing a secure and durable mechanical and electrical bond suitable for environments with vibration and frequent insertion/removal.
Operational temperature ranges from -55°C to 105°C, allowing it to function effectively in harsh environments. The maximum contact resistance of 3 milliohms supports efficient current conduction with minimal losses.
The terminal length of 17.8 mm ensures compatibility with a broad range of Dynamic 3000 series housings and connectors, facilitating easy installation and secure locking with an audible click when fully engaged.
Designed for use with Dynamic 3000 Connector Housings. High current capacity of 15 amps for industrial machinery and electronic applications. Copper alloy contact with gold plating for enhanced conductivity. Standard and high-pressure versions available for varied vibration resistance.
Three-point contact design ensures electrical reliability. Operates over a wide temperature range (-55°C to 105°C). Secure crimp termination for reliable connectivity. 17.8 mm length for compatibility and easy installation.
Manufactured in Japan ensuring high-quality standards.
This product is ideal for combined signal and power applications in industrial machinery, construction equipment, and electronic assemblies where secure, durable electrical connections are critical.
Explore more components and connectors suited for industrial and electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this terminal is 15 amps, making it suitable for industrial applications.
This crimp terminal supports wire sizes ranging from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²).
It operates reliably within a temperature range of -55°C to 105°C, suitable for harsh environments.
The contacts are made from copper alloy and are gold plated to enhance electrical conductivity.
The terminal has a length of 17.8 mm, ensuring compatibility with a range of Dynamic 3000 series housings.
Termination is achieved through a crimp method, providing a secure mechanical and electrical connection.
The maximum contact resistance is 3 milliohms, which supports efficient current conduction.
Yes, it is designed for use with Dynamic 3000 connector housings, ensuring proper fit and functionality.
It features a twist resistant box style with three points of contact, which increases electrical reliability.
This terminal is manufactured in Japan, ensuring adherence to high-quality standards.
This terminal is suitable for combined signal and power applications in industrial machinery, construction equipment, and electronic assemblies.
Yes, there are standard and high-pressure versions available, which differ in their vibration resistance capabilities.
