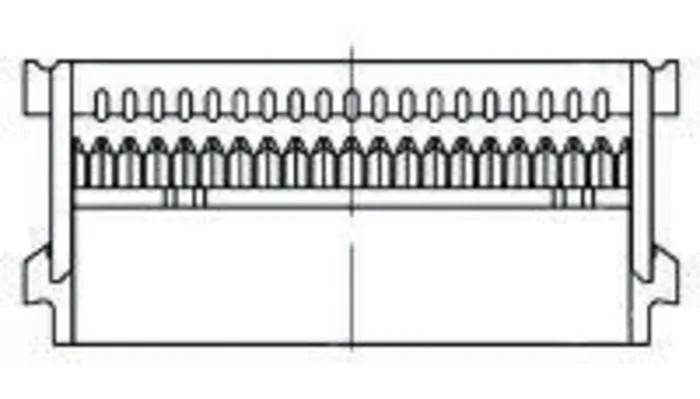

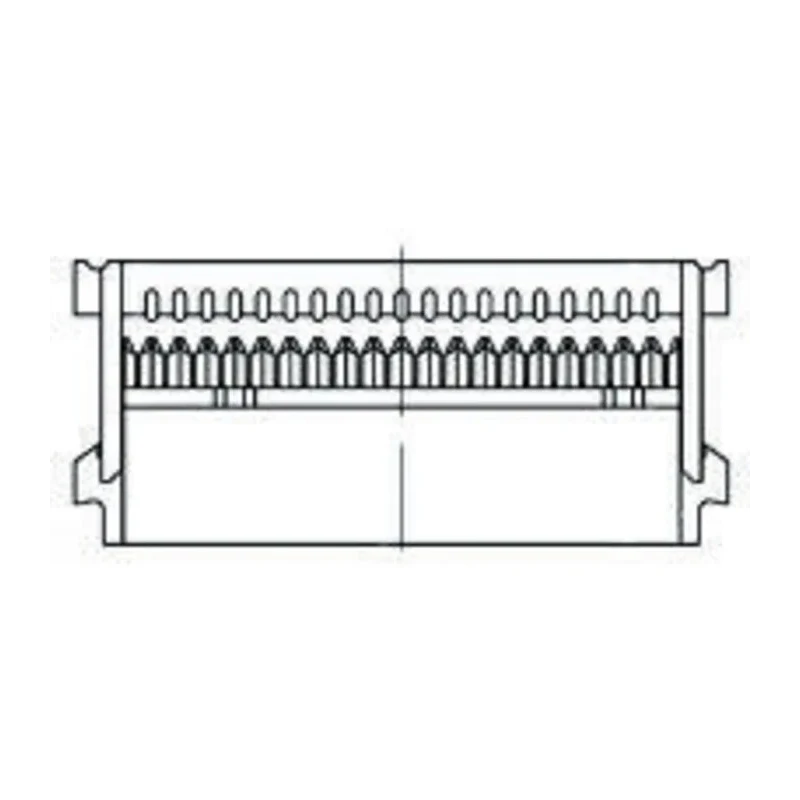

TE Connectivity 34-Way IDC Connector Female for Cable, 2 Row, 2.54 mm Pitch, Gold over Nickel Plating, Model 1-1658526-8
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 1000V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 609 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 34 contacts arranged in 2 rows for versatile connectivity.
- Supports current rating of 1 amp with voltage up to 1000 volts.
- Designed with IDC termination for economical mass terminations without wire preparation.
- Contact plating consists of gold over nickel for enhanced conductivity and corrosion resistance.
- Operating temperature range from -55°C to 125°C ensures durability in harsh environments.
- Housing made from UL 94V-0 thermoplastic with military and center polarization for secure fit.
- Right angle mounting suitable for cable applications in network, industrial, and consumer electronics.
- Conforms to AMP-LATCH 609 series standards with beryllium copper contact material.
Product Description
TE Connectivity 1-1658526-8 34-Way IDC Connector Female for Cable, 2 Row with a 2.54 mm pitch is designed for efficient and reliable electronic connectivity in various industrial and commercial applications.
This connector features 34 contacts arranged in two rows, supporting a current of 1 amp and a voltage rating of 1000 volts, making it suitable for a wide range of electronic devices and systems.
The right angle orientation and cable mount type facilitate easy integration into network equipment, industrial controls, electrical and medical testing devices, appliances, consumer electronics, and automotive systems.
Constructed with gold plated contacts over nickel, the connector ensures excellent conductivity and resistance to corrosion. The housing is made from UL 94V-0 rated thermoplastic, providing durability and flame resistance. Its military-approved tuning fork contact design guarantees secure and uniform latching, while military and center polarization prevent misorientation during connection.
IDC termination technology allows for fast and economical mass termination of ribbon cables without the need to strip wires, enhancing manufacturing and maintenance efficiency. Fast and economical mass terminations with IDC contacts.
Military approved tuning fork contact design for durability. Gold over nickel contact plating for superior conductivity. Thermoplastic housing with UL 94V-0 rating for safety and durability. Wide operating temperature range from -55°C to 125°C.
Suitable for use in network, industrial, medical, appliance, and automotive applications. Right angle cable mounting for optimal assembly integration. AMP-LATCH 609 series compliance for industry standard compatibility.
This TE Connectivity IDC connector offers high performance and reliability required for demanding electronic environments, ensuring consistent signal integrity and robust mechanical connections.
Explore more TE Connectivity products and related IDC Connectors on EnvMart for your electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current rating of 1 amp and a voltage rating of 1000 volts.
It operates within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
The connector features 34 contacts arranged in 2 rows.
It utilizes IDC (Insulation Displacement Connector) termination technology for fast and economical mass terminations without wire preparation.
The housing is made from UL 94V-0 rated thermoplastic, and the contacts are made of beryllium copper with gold over nickel plating.
This model has a right angle orientation, which facilitates easy integration into various applications.
Yes, it conforms to AMP-LATCH 609 series standards, ensuring compatibility with industry requirements.
The pitch size of this connector is 2.54 mm.
It is suitable for use in network equipment, industrial controls, electrical and medical testing devices, appliances, consumer electronics, and automotive systems.
The connector features female contacts.
The gold over nickel plating enhances conductivity and provides corrosion resistance for reliable connections.
The country of origin for this connector is the United States.
