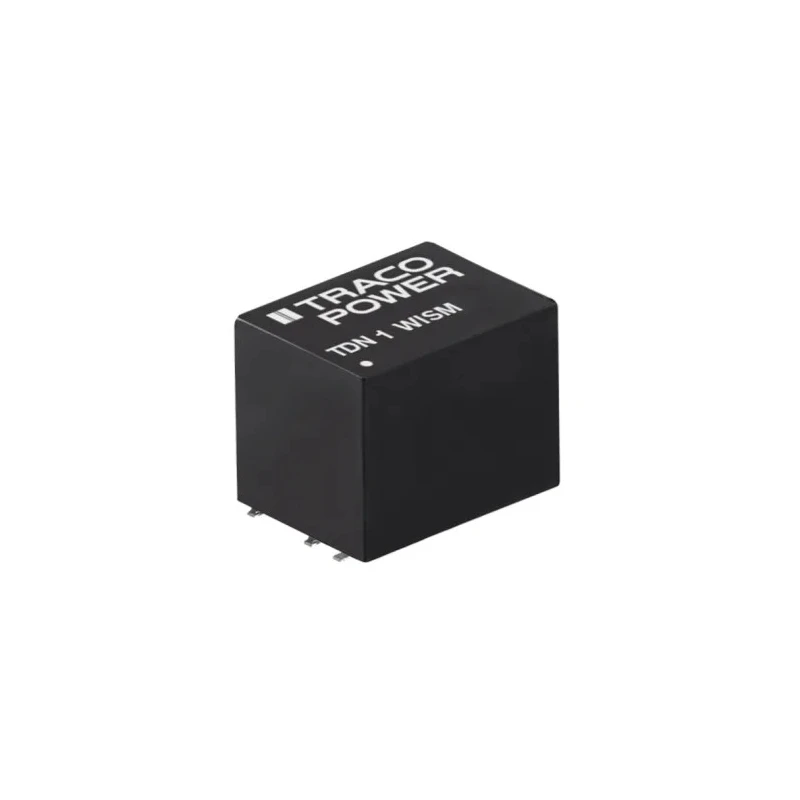

TRACOPOWER Compact 1W Fully Regulated Surface Mount DC/DC Converter 12V DC Output 45mA 9-36V Input TDN 1-2422WISM

TRACOPOWER TDN 1-2422WISM is a high-performance, 1 Watt DC/DC Converter designed for compact and reliable voltage regulation in constrained electronic assemblies. This fully regulated converter outputs 12V DC at 45mA continuously, accepting input voltages ranging between 9V and 36V, suitable for varied power supply conditions.

The device features a small footprint surface mount package measuring 13.2mm in length, 9.1mm in width, and 9.9mm in depth. It operates efficiently with an approximate efficiency of 80%, contributing to minimal thermal losses and stable output across the rated temperature range of -40°C to +90°C, without derating. This makes it suitable for harsh industrial and electronic environments.

Its built-in 1500 VDC isolation voltage ensures electrical safety and noise immunity, critical in industrial control, telecommunications, and medical power systems. Equipped with 8 pins, it integrates easily into PCB designs requiring compact power solutions.

Additional features include short circuit protection and remote On/Off control, enhancing robustness and operational flexibility. The product's MTBF rating of 8.4 million hours underscores its dependable performance under continuous use.

The TRACOPOWER TDN 1-2422WISM is engineered for a broad range of applications including industrial automation, instrumentation, medical devices, communications equipment, and other demanding fields requiring stable DC output voltages from varying DC inputs.

The converter delivers 12V DC output at 45mA with dual regulated outputs. Compact surface mount package suitable for limited space environments. Wide input voltage range from 9V to 36V DC ensuring flexible deployment. High isolation voltage of 1.6kV DC providing electrical safety and noise reduction.

Robust operating temperature range from -40°C to 90°C without derating. Short circuit protection and remote On/Off function improve reliability. Built to meet high MTBF standards for prolonged operational life. Efficient power conversion with around 80% efficiency.
