TE Connectivity Type III Series Male Crimp Terminal, 18 AWG Min Crimp, 16 AWG Max 66098-9

Free Delivery in India | Lowest Global Shipping Charges

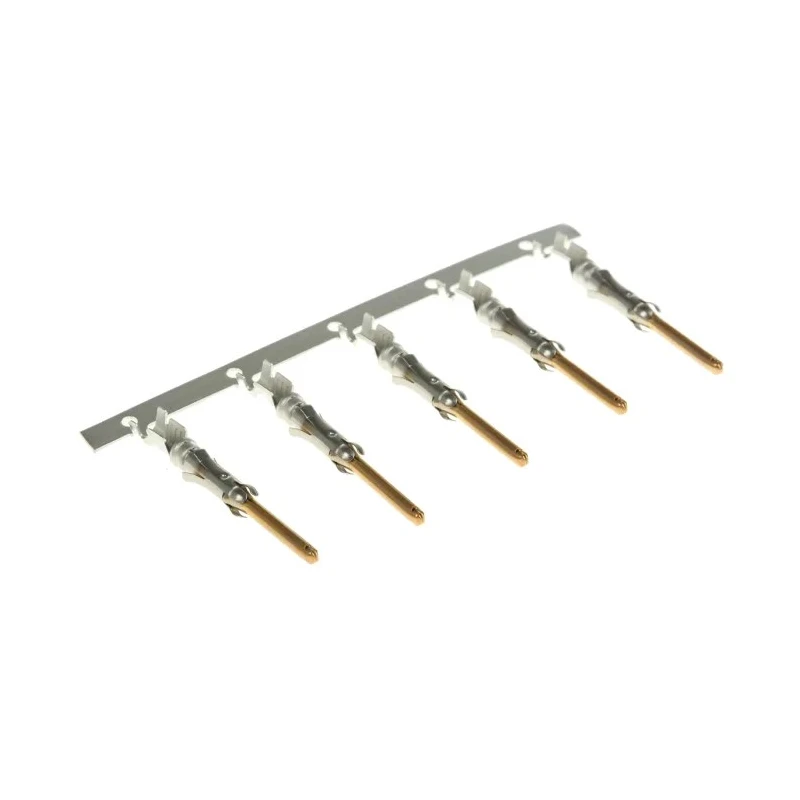

TE Connectivity Type III Series Male Crimp Terminal, 18 AWG Min Crimp, 16 AWG Max 66098-9

Name: TE Connectivity Type III Series Male Crimp Terminal, 18 AWG Min Crimp, 16 AWG Max 66098-9
Brand: TE Connectivity
SKU: 209175
Price: 1.59 USD
Availability: InStock



Category Crimp Contacts Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	13A
Length	27.1mm
Model	66098-9
Gender	Male
Contact Material	Brass
Series	Type III
Termination Type	Crimp
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
For Use With	G Series and M Series Connector Housings, CPC
Contact Plating	Gold
Minimum Wire Size mm²	0.8mm²
Maximum Wire Size mm²	1.4mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	16AWG

Key Features

Designed specifically for use with G Series and M Series Connector Housings, and CPC connectors.
Constructed from brass with gold plated contacts for optimal conductivity and corrosion resistance.
Rated for a current of 13 amps ensuring robust performance in electrical circuits.
Operates reliably between -55°C and 150°C temperature range suitable for harsh environments.
Compact length of 27.1 mm allows for easy integration in PCB and wire housing applications.
Termination is by crimping, providing secure and stable wire attachment.
Type III series ensures compatibility with Multimate Series II and III+ connectors.
Uninsulated with a high normal force spring for low resistance and reliable signal transmission.

Product Description

TE Connectivity 66098-9 Male Crimp Terminal is engineered for precision electronic applications, supporting wire sizes ranging from 18 AWG to 16 AWG and rated at 13 A current capacity. It is ideal for use with G Series and M Series Connector Housings as well as CPC connectors.

The terminal is crafted from brass with a gold-plated contact surface to ensure excellent electrical conductivity and resistance to corrosion, which is critical for maintaining signal integrity in demanding industrial environments.

Available in a compact 27.1 mm length, this crimp terminal ensures a secure wire termination by crimping technique, facilitating ease of assembly and long-term reliability.

Operating temperature ranges from -55°C to 150°C, making it suitable for both low-temperature and high-temperature conditions encountered in industrial, manufacturing, electronics assembly, and automotive sectors.

The Type III series terminals feature uninsulated signal contacts, designed with a stainless steel spring to maintain high normal force and retention inside the connector housing. This design supports dry circuit signal conditions with minimal resistance and prevents mating damage due to misalignment.

Designed specifically for use with G Series and M Series Connector Housings, and CPC connectors. Constructed from brass with gold plated contacts for optimal conductivity and corrosion resistance. Rated for a current of 13 amps ensuring robust performance in electrical circuits.

Operates reliably between -55°C and 150°C temperature range suitable for harsh environments. Compact length of 27.1 mm allows for easy integration in PCB and wire housing applications. Termination is by crimping, providing secure and stable wire attachment.

Type III series ensures compatibility with Multimate Series II and III+ connectors. Uninsulated with a high normal force spring for low resistance and reliable signal transmission. This product is ideal for electronics manufacturing, industrial automation, and power connector applications requiring high reliability and consistent electrical performance.

Discover a wide range of Crimp Contacts and connectors at EnvMart for your industrial and electronic component needs.
