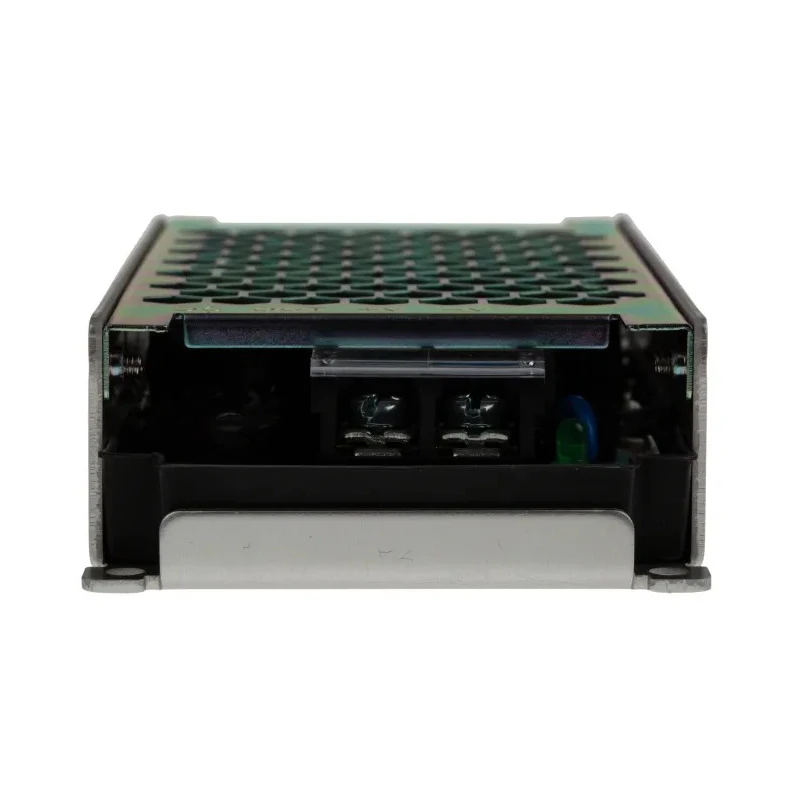

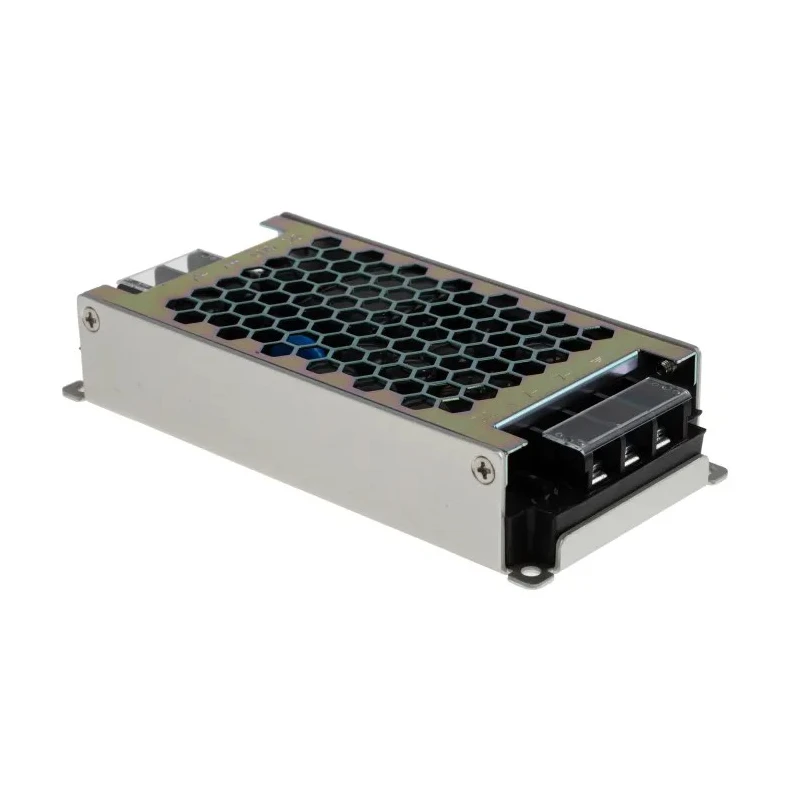

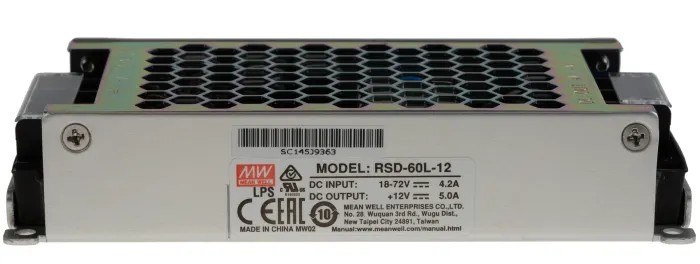

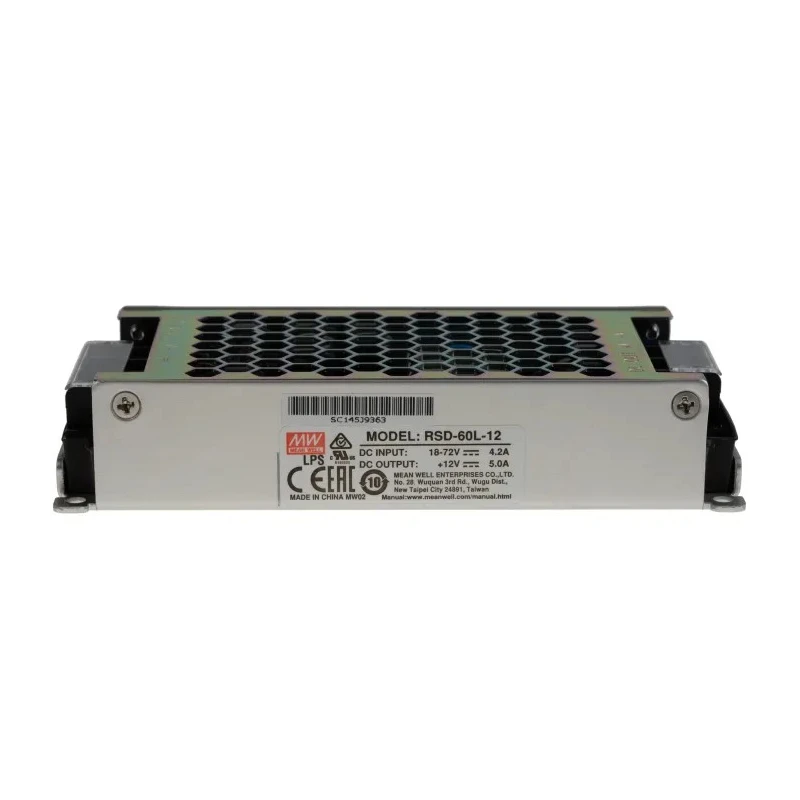

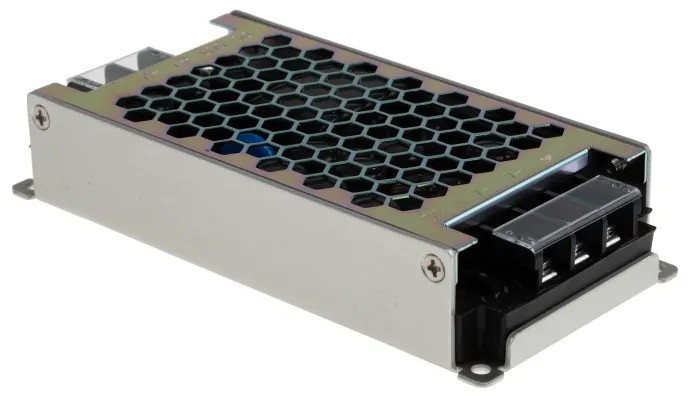

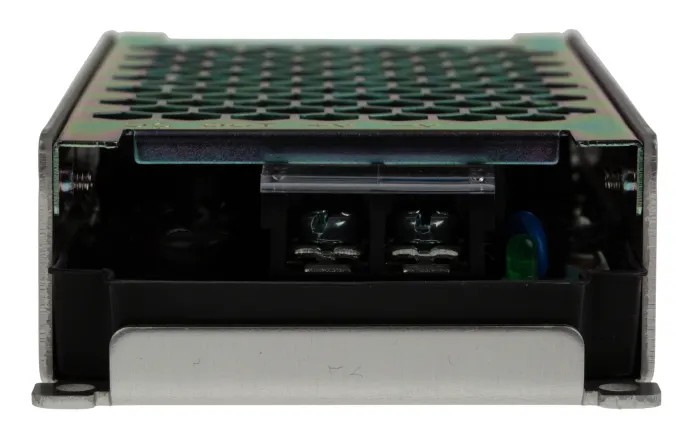

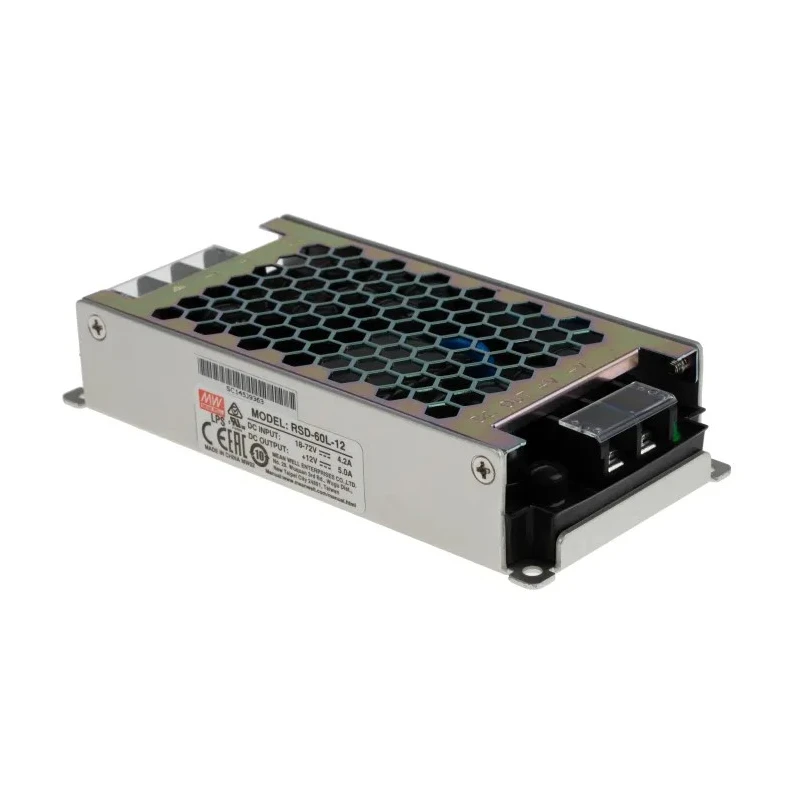

MEAN WELL DC/DC Converter, 12V DC Output, 72V DC max Input, 5A Output Current, Chassis Mount, 60W Power, CE RSD-60L-12
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD-60 DC/DC Converter, 12V dc/, 72V dc |
| Brand | MEAN WELL |
| Efficiency | 93% |
| Length | 128mm |
| Model | RSD-60L-12 |
| Depth | 25mm |
| Gross Weight | 290g |
| Width | 60mm |
| Mount Type | Chassis Mount |
| Series | RSD-60 |
| Minimum Operating Temperature | 70°C |
| MTBF | 593800h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | CE |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 5A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- This chassis mount converter provides a maximum output power of 60W.
- It supports an input voltage range from 18V to 72V DC with a 5A output current.
- Efficient energy conversion with 93% efficiency minimizes power loss.
- Features 4kV DC isolation voltage for enhanced safety and noise reduction.
- Operates reliably within a -40°C to +70°C temperature range.
- Compact dimensions with a 1U low-profile design of 25mm depth.
- Includes ripple and noise level of 50mV peak-to-peak ensuring signal integrity.
- Meets CE standards for electromagnetic compatibility and safety.
Product Description
MEAN WELL RSD-60L-12 is a high-performance DC/DC Converter designed for reliable power conversion in electronics and industrial applications. It converts a wide input voltage range between 18V and 72V DC to a stable 12V DC output, delivering up to 5A of current and a maximum output power of 60W. This unit is engineered for use in demanding environments, featuring a chassis mount type that facilitates easy installation and secure fixing.
The converter achieves high efficiency of up to 93%, reducing power dissipation and improving energy savings. It offers a 4kV DC isolation voltage which protects against electrical noise and interference, ensuring clean power delivery to sensitive equipment. With a ripple and noise specification of only 50mV peak-to-peak, it maintains output quality for sensitive electronic circuits.
The RSD-60L-12 supports wide operating temperatures from -40°C to +70°C, suitable for harsh industrial climates. Its ultra-compact 1U low-profile form factor with a 25mm depth saves valuable rack space. The half encapsulated enclosure employs free air convection cooling for maintenance-free operation, and an LED indicator clearly shows power ON status.
Compliant with CE safety and electromagnetic compatibility standards, this converter is a reliable choice for applications in automation, telecommunications, instrumentation, and power management systems. The mean time between failures (MTBF) is an impressive 593,800 hours, underscoring its durability and quality.
This chassis mount DC/DC converter reliably delivers 12V DC output from a 18 to 72V DC input power source. It supports continuous current up to 5A and maintains high efficiency of 93% for energy saving. Construction includes 4kV DC isolation and ripple and noise of 50mV Pk-Pk for electrical noise immunity.
Operating temperature range from -40°C to +70°C ensures performance in various climates. Compact 128mm length, 60mm width, and 25mm depth suits low-profile installations.
This MEAN WELL converter series offers 3 years warranty and is made in China. It is ideal for use in industrial automation, communications equipment, laboratory instruments, and other power supply applications where stable DC voltage conversion is critical.
Explore the MEAN WELL range of DC/DC Converters at EnvMart for reliable industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 60W.
It supports an input voltage range from 18V to 72V DC.
This unit can deliver an output current of up to 5A.
The efficiency of this converter is rated at 93%.
The dimensions are 128mm in length, 60mm in width, and 25mm in depth.
It features an isolation voltage of 4kV DC.
The ripple and noise level is specified at 50mV peak-to-peak.
It operates reliably within a temperature range from -40°C to +70°C.
This model uses a chassis mount type for installation.
It meets CE standards for safety and electromagnetic compatibility.
The mean time between failures (MTBF) is 593,800 hours.
This model provides one output.
