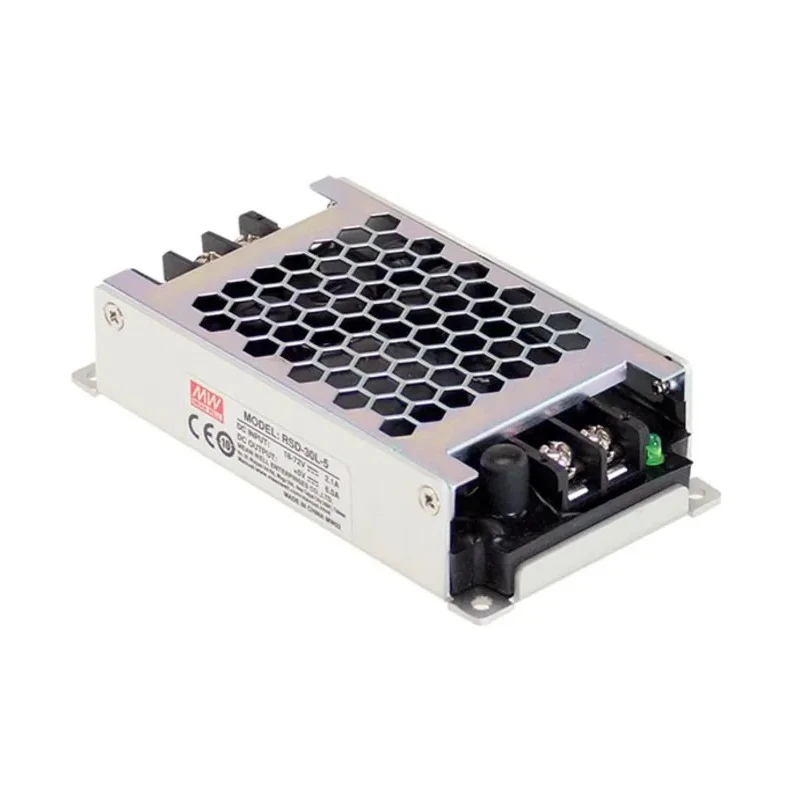

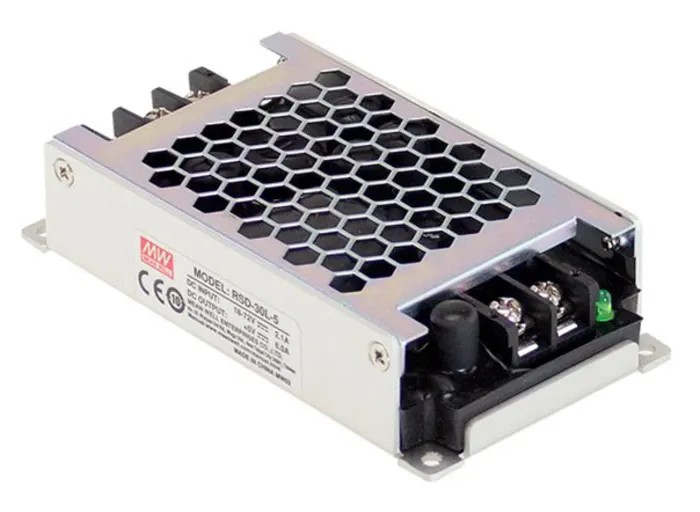

MEAN WELL DC/DC Converter Chassis Mount 5V Output 72V DC Input 6A 30W RSD-30L-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL RSD-30 DC/DC Converter, 5V dc/, 72V dc I |
| Brand | MEAN WELL |
| Efficiency | 86% |
| Length | 113mm |
| Model | RSD-30L-5 |
| Depth | 25mm |
| Gross Weight | 250g |
| Width | 60mm |
| Mount Type | Chassis Mount |
| Series | RSD-30 |
| Minimum Operating Temperature | 70°C |
| MTBF | 396900h |
| Number of outputs | 1 |
| Ripple and Noise | 70mV Pk-Pk |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | CE |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 6A |
| Isolation Voltage | 4kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Designed for compact chassis mounting applications with a low profile of 25mm depth.
- Supports a wide input voltage range from 18V to 72V DC.
- Provides a stable 5V DC output with a 6A maximum current capacity.
- Features 4000V DC isolation voltage ensuring enhanced safety and noise suppression.
- High efficiency of 86% optimizes power conversion and reduces heat dissipation.
- Equipped with built-in constant current limiting and LED power indicator.
- Operating temperature range rated up to 70°C for reliable performance under harsh conditions.
- Meets CE standards and offers an MTBF of approximately 396,900 hours.
Product Description
MEAN WELL RSD-30L-5 DC/DC Converter delivers a stable 5V DC output at up to 6A current and 30W power in a compact chassis mount form factor. Designed for industrial, electronic, and power supply applications, it accepts a wide input voltage range from 18V to 72V DC, making it versatile for various DC voltage sources.
The converter supports high isolation voltage of 4000V DC, suitable for electrical safety and noise immunity in professional setups. With an efficiency rating of 86%, the device ensures minimal power loss and heat generation, backed by a robust metal encapsulated chassis with free air convection cooling and an ultra-compact 1U low profile design of just 25mm depth.
Additional features include built-in constant current limiting circuit, power on LED indicator, and a long mean time between failures (MTBF) of 396,900 hours, guaranteeing dependable long-term operation. The device is CE certified and compliant with various railway standards, operating reliably in environments up to 70°C.
Applications span industrial controls, telecommunications, instrumentation, and transportation equipment where reliable DC voltage conversion is critical. Package includes the chassis mount converter with standard warranty support from MEAN WELL.
Compact chassis mount design with ultra-low 25mm depth. Wide input voltage range from 18V to 72V DC for flexible usage. Stable 5V output voltage delivering up to 6A current. 4000V DC isolation voltage ensures electrical safety.
High 86% efficiency reduces power waste and heat. Features constant current limiting and LED power indicator. CE certified with MTBF of nearly 397,000 hours for reliability. Operating temperature range up to 70°C protects against harsh environments.
Dimensions: 113mm length × 60mm width × 25mm depth; weight: 250g. 3-year warranty for the RSD series from MEAN WELL. Browse the MEAN WELL DC/DC Converter categories at EnvMart for compatible power supply solutions and additional accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 18V to 72V DC.
It provides a stable output current of up to 6A.
The efficiency rating is 86%, optimizing power conversion and reducing heat dissipation.
The dimensions are 113mm in length, 60mm in width, and 25mm in depth.
It features a high isolation voltage of 4000V DC, ensuring enhanced safety and noise suppression.
The maximum output power is 30W.
It operates reliably in environments up to 70°C.
This converter is CE certified, indicating compliance with safety standards.
The MTBF is approximately 396,900 hours, indicating long-term reliability.
Yes, it includes a built-in constant current limiting circuit and an LED power indicator.
It is designed for chassis mount applications, featuring a compact design.
It is suitable for industrial controls, telecommunications, instrumentation, and transportation equipment.
