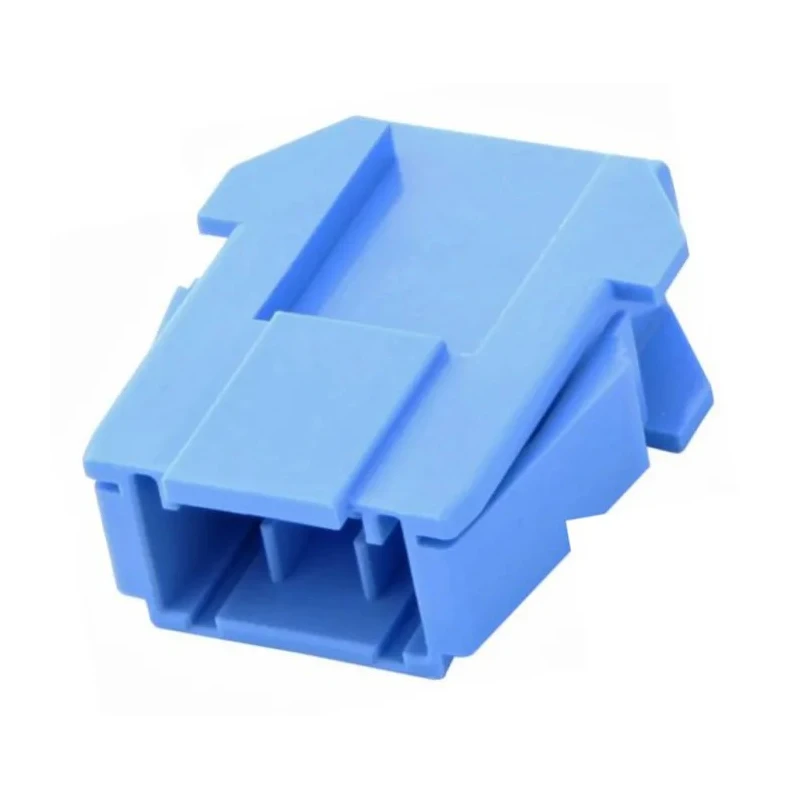

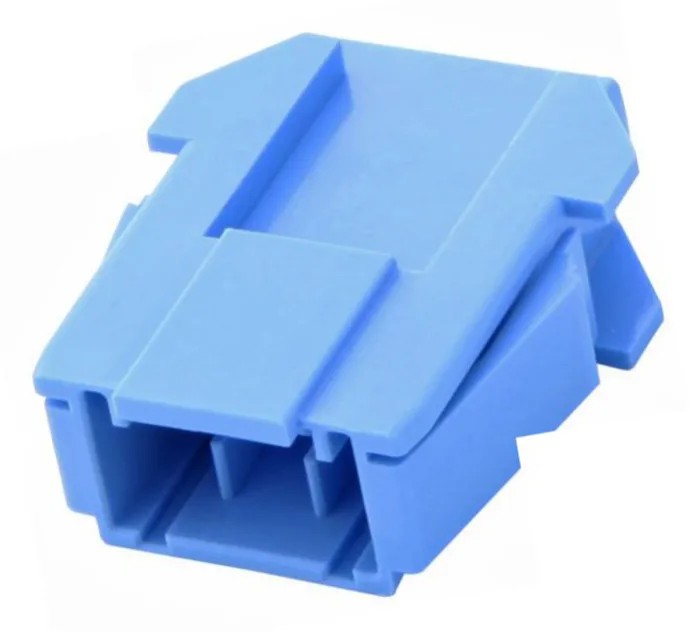

JST PSI Male Connector Housing 4 mm Pitch 3 Way 1 Row Straight PSIR-03V-LE-A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 20.1mm |
| Model | PSIR-03V-LE-A |
| Width | 25.45mm |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | PSI |
| Number of Rows | 1 |
| Pitch | 4mm |
| For Use With | PSI Series Crimp Style Contact |
| Number of Contacts | 3 |
| Connector Gender | Male |
Key Features
- Designed with a locking mechanism for a secure mating connection.
- Includes keying notches and colour coding to prevent misalignment and mismating.
- Constructed from fibreglass reinforced polybutylene terephthalate housing material for durability.
- Features a straight orientation and cable mount type suitable for PSI series crimp style contacts.
- Measures 20.1 mm in length and 25.45 mm in width for precise fitting.
- Panel mounting ears enable secure attachment for enhanced installation versatility.
- Suitable for wire to board and wire to wire applications in electronic assemblies.
- Complies with industry standards for electronic connectors but has no specific certifications listed.
Product Description
JST PSIR-03V-LE-A male connector housing is engineered with a 4 mm pitch and incorporates 3 contacts in a single row straight configuration, optimized for secure cable-to-cable or cable-to-board connections in various electronic applications.
Constructed from a robust fibreglass reinforced polybutylene terephthalate material, this connector housing provides excellent mechanical strength and resistance to wear, ensuring long-lasting reliability in demanding environments.
The housing features a locking mechanism that guarantees a secure mating connection and prevents accidental disconnection, improving the integrity of electronic assemblies. Keying notches and colour coding provide foolproof mating guidance, preventing mismating and ensuring correct assembly every time.
This model is designed specifically for use with PSI series crimp style contacts and cable mount connectors, featuring a straight orientation and mount type tailored for cable installations. The integrated panel mounting ears allow for easy and stable panel attachment, enhancing installation flexibility.
Locking mechanism for secure mating connection. Keying notches and colour coding prevent mismating. Durable fibreglass reinforced polybutylene terephthalate housing material. Straight orientation with cable mount type. Panel mounting ears for versatile installation.
Precise dimensions (20.1 mm length x 25.45 mm width) for fitting. Compatible with PSI series crimp contacts for reliable connectivity. Ideal for wire-to-board and wire-to-wire electronic connection applications. Manufactured in Malaysia with industry quality standards.
This JST PSI male Connector Housing is widely used in electronic component assembly across industrial, manufacturing, automotive, and communications sectors. Its reliable locking and keying features ensure optimal performance in critical electrical connections.
Explore additional electronic connectors, housings, and wiring solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 20.1 mm in length and 25.45 mm in width, allowing for precise fitting in electronic assemblies.
The JST PSI male connector housing features a 4 mm pitch, which is standard for its design and compatibility with specific contacts.
This connector housing is designed with 3 contacts, making it suitable for various electronic applications.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, providing mechanical strength and resistance to wear.
It features a cable mount type, allowing for secure attachment in wire-to-board and wire-to-wire applications.
Yes, it is specifically designed for use with PSI series crimp style contacts, ensuring reliable connectivity.
The JST PSI male connector housing has a straight orientation, which is typical for its intended applications.
Yes, it includes keying notches and colour coding to prevent misalignment and mismating during assembly.
This model is manufactured in Malaysia, adhering to industry standards for electronic connectors.
It is suitable for wire-to-board and wire-to-wire applications in electronic assemblies across various sectors, including industrial and automotive.
Yes, it features a locking mechanism that ensures a secure mating connection, preventing accidental disconnection.
The JST PSI male connector housing has 1 row, which is designed for its specific contact configuration.
