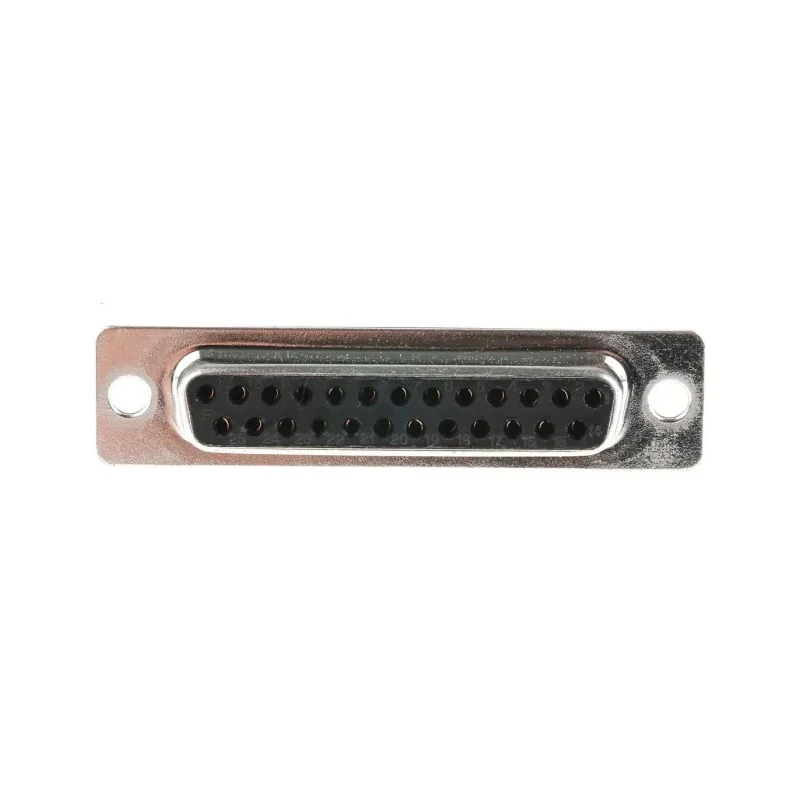

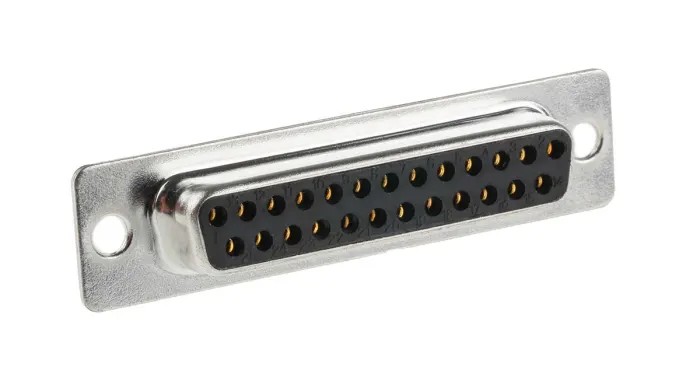

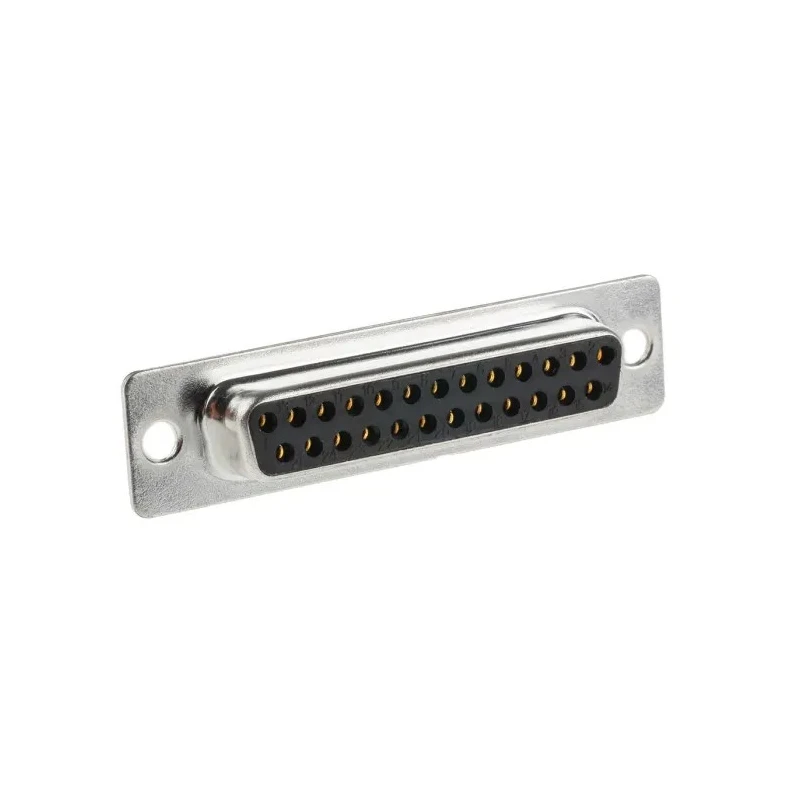

RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, Female, 3.05 mm Through Hole, 5A, 500V 544-3834

Name: RS PRO 25 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, Female, 3.05 mm Through Hole, 5A, 500V 544-3834
Brand: RS PRO
SKU: 196845
Price: 7.58 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	RS PRO
Orientation	Straight
Current	5A
Model	544-3834
Mount Type	Panel Mount
Housing Material	Steel
Contact Material	Brass
Mounting Hardware	3.05 mm Through Hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.77mm
Contact Plating	Gold
Number of Contacts	25
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	B
25way machine cont straight D skt,500VacBrand	NEUTRAL
25W D SCREENED SKT.-COMMBrand	NEUTRAL

Key Features

Durable steel shell housing for robust protection.
Gold-plated brass female contacts ensure reliable connectivity.
Solder cup terminations for easy and secure wire connections.
Designed for panel mounting with 3.05 mm through hole hardware.
Operating temperature range from -55°C to 105°C.
Suitable for industrial, commercial, and networking applications.
Connector features a D-sub shell size B with 25 contacts.
Ideal for input/output interconnections in computers and test equipment.

Product Description

RS PRO 544-3834 is a high-quality 25 Way Straight Panel Mount D-Sub Connector with a 2.77 mm pitch and a 3.05 mm through hole for mounting. This female connector supports 5A current and 500V voltage, designed to provide reliable, robust connections for industrial and commercial applications.

The connector’s steel housing shell offers excellent durability and mechanical support, protecting the machined, gold-plated brass contacts that guarantee high electrical conductivity and corrosion resistance. Its solder cup termination type facilitates straightforward wire soldering for secure signal or power transmission.

Rated for operation between -55°C to 105°C, this connector is built for harsh environments. Its B-size D-sub shell includes 25 contacts allowing multiple signals to be transmitted simultaneously, making it ideal for communication, data processing, and industrial equipment connections.

This RS PRO D-Sub Connector fits perfectly into panel mounting applications using 3.05 mm through hole hardware, ensuring a firm and stable installation. It is widely used in computers, monitors, scanners, test instruments, remote sensors, and portable electric generation equipment.

Durable steel shell housing protects the connector and provides mechanical stability. Gold-plated brass female contacts provide excellent conductivity and reliability. Solder cup terminations allow easy wire soldering and secure connection.

Panel mount design with 3.05 mm through hole simplifies installation. Supports a current rating of 5A and voltage rating of 500V for reliable performance. Operating temperature range from -55°C to 105°C suits demanding environments.

25 contact positions arranged with 2.77 mm pitch ensure proper mating and signal integrity. Applications include computers, networking, industrial equipment, and test instrumentation. This product is made in Taiwan, Province Of China, assuring quality and manufacturing standards.

Explore more in the Electronics & Electricals category on EnvMart for similar reliable connectors suited to your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a current rating of 5A and a voltage rating of 500V, making it suitable for various applications requiring reliable power transmission.

The operating temperature range for this connector is from -55°C to 105°C, allowing it to function in demanding environments.

The connector features 25 contacts arranged with a 2.77 mm pitch, allowing for multiple signals to be transmitted simultaneously.

It utilizes solder cup terminations, which facilitate straightforward wire soldering for secure connections.

The housing is made from steel for durability, while the contacts are made of brass with gold plating for excellent conductivity and corrosion resistance.

This model is designed for panel mounting and requires 3.05 mm through hole hardware for installation.

It is widely used in computers, monitors, scanners, test instruments, remote sensors, and portable electric generation equipment.

This connector features a D-sub shell size B, which is standard for many industrial and commercial applications.

The orientation of this model is straight, which is common for panel mount applications.

This D-Sub connector is manufactured in Taiwan, ensuring adherence to quality and manufacturing standards.

Gold plating on the brass contacts enhances electrical conductivity and provides corrosion resistance, ensuring reliable connectivity.

Installation is simplified through the use of 3.05 mm through hole hardware, ensuring a secure and stable mounting in panel applications.
