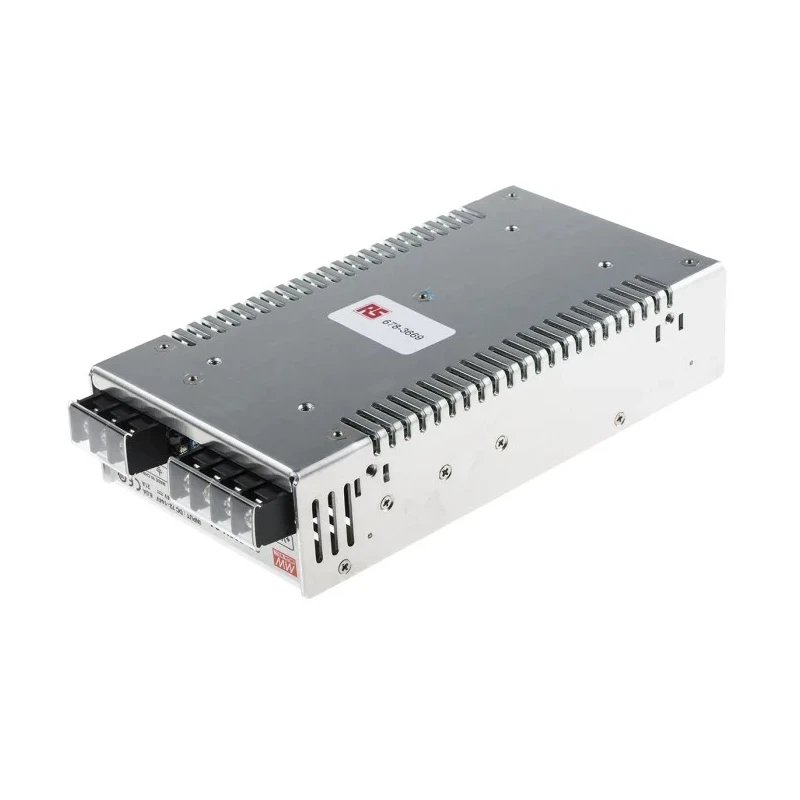

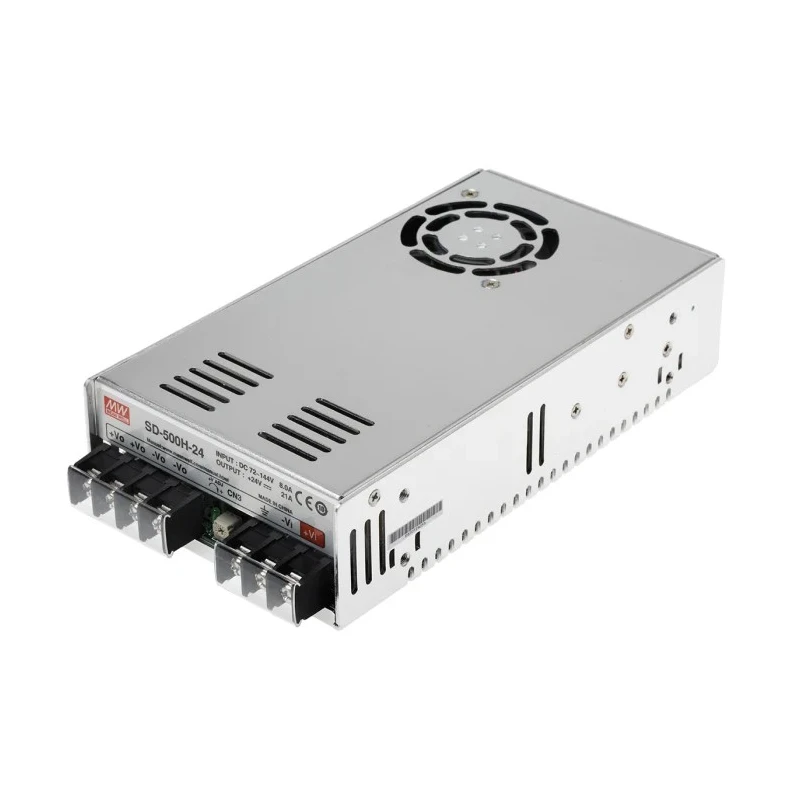

MEAN WELL DC/DC Converter, 24V DC Output, 144V DC Max Input, 72V Min Input, 504W Power, 89% Efficiency, Chassis SD-500H-24

MEAN WELL SD-500H-24 DC/DC Converter delivers a stable 24V DC output voltage with a maximum output power of 504W, ideal for industrial and electronic component applications requiring robust power conversion. The device supports an ultra-wide input voltage range from 72V to 144V DC, allowing it to operate efficiently across varying supply voltages.

Designed as a chassis mount converter, it has dimensions of 215mm length, 115mm width, and 50mm depth, weighing 1.15kg for secure installation within electrical enclosures. The product features an adjustable output voltage range up to 30V, enabling customization for different system requirements.

Equipped with a built-in cooling fan, the SD-500H-24 can operate reliably at ambient temperatures between -20°C to 60°C. Its robust protection circuitry safeguards against short circuits, overloads, over-voltage, and thermal runaway scenarios. The isolation voltage of 2kV AC ensures safe operation in electrically noisy environments.

The converter boasts an MTBF of 196300 hours, reflecting exceptional reliability. It meets industry standards including EN/IEC certifications and conforms to EMC Class B requirements to minimize electromagnetic interference.

Additional features include remote ON/OFF control for automated system power management, remote sensing to compensate for voltage drops, and an LED indicator for easy power status verification. This DC/DC converter is suitable for industrial, manufacturing, power supply distribution, and other demanding electronic applications.

High reliability with MTBF of 196300 hours ensures long service life. Chassis mount design with compact dimensions: 215mm length, 115mm width, and 50mm depth. Adjustable output voltage range up to 30V for fine-tuning performance.

Built-in fan enables forced air cooling for operation up to 60°C. Comprehensive protections including short circuit, overload, over-voltage, and temperature. 2kV AC isolation voltage for safe operation in noisy electrical environments.

High efficiency of 89% reduces power loss and heat. Complies with EN/IEC standards and EMC Class B. Remote ON/OFF control and remote sensing for enhanced installation flexibility. LED power-on indicator simplifies operation monitoring.
