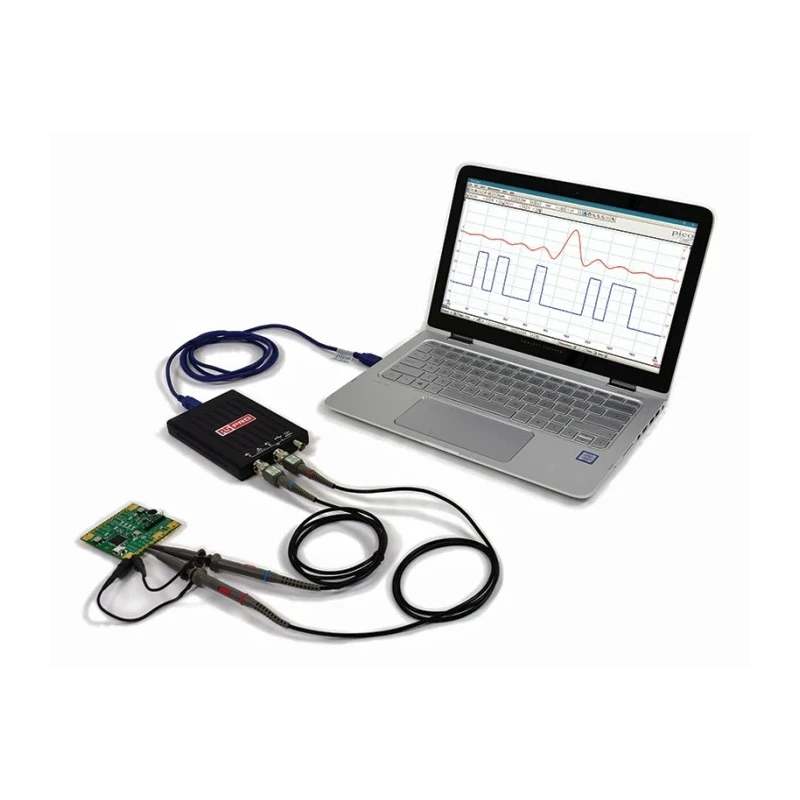

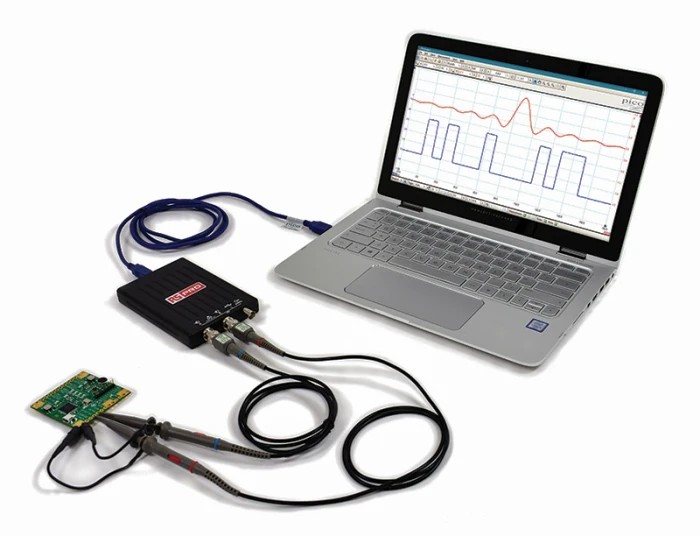

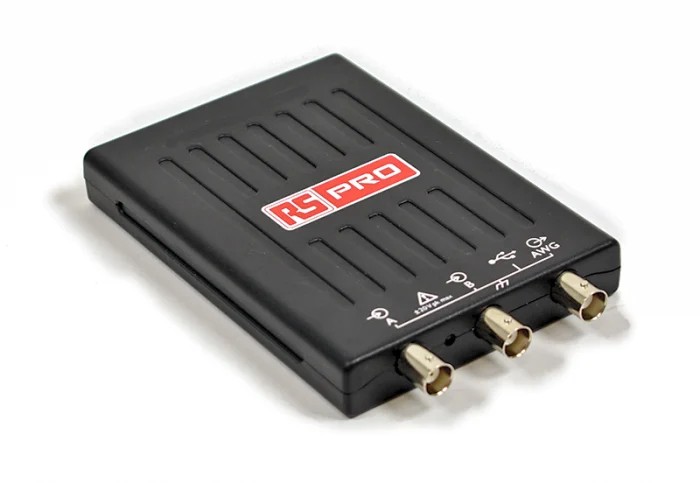

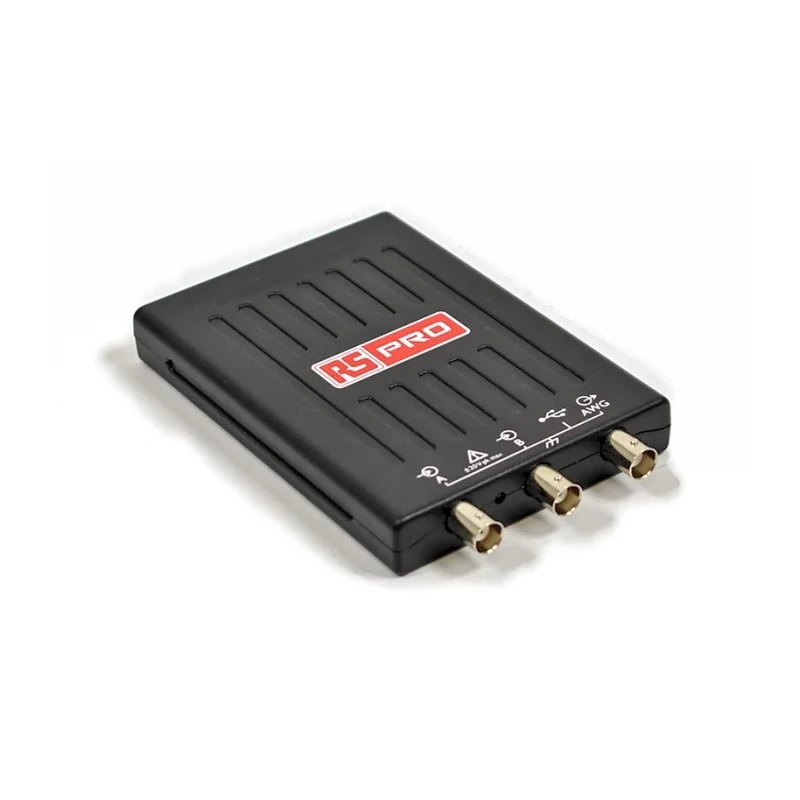

RS PRO 20 MHz 2-Channel PC Based Oscilloscope 2205A 163-2719
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display | screen |
| Brand | RS PRO |
| Height | 18.8mm |
| Length | 142mm |
| Model | 163-2719 |
| Width | 92mm |
| Bandwidth | 20MHz |
| Interfaces | USB-connected and powered |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Rise Time | 14ns |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 10mV/div |
| Minimum Time Base | 5ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
| x1 Set of two 60 MHz (10 | 1/1:1) passive probes |
| Easysync DS 1M12 USB Digital Oscilloscope, 2 Analogue Channels, 250kHzBrand | Easysync |
Key Features
- Offers 2 input channels supporting multiple signal sources.
- Compact USB-powered design enables easy portability and connection to laptops.
- Maximum sampling rate of 200 MS/s for detailed waveform analysis.
- Equipped with 16 kS capture memory capable of capturing 2000 waveforms per second.
- Supports advanced digital triggering and serial protocol decoding.
- PicoScope software provides math channels, filters, and multi-view waveform display.
- Includes function and arbitrary waveform generators for signal creation.
- Interfaces include CAN, IIC, LIN, RS232, SPI, UART, and USB.
Product Description
The RS PRO 2205A is a 20 MHz PC Based Oscilloscope designed for precision measurement and versatile use in industrial, laboratory, and electronics engineering settings. Powered and connected via USB, its ultra-compact form factor (142 mm length, 92 mm width, and 18.8 mm height) allows engineers to perform measurements onsite or in the lab with ease.
This 2-channel oscilloscope supports a maximum sampling rate of 200 MS/s and a capture memory depth of 16 kS, enabling it to capture up to 2000 waveforms per second. Its 8-bit vertical resolution provides accurate analog and digital signal visualization. The instrument supports a broad variety of interfaces such as CAN, IIC, LIN, RS232, SPI, UART, and USB, making it compatible with numerous embedded systems.
Equipped with PicoScope software, the oscilloscope offers advanced digital triggering with pulse width, window, and dropout triggers, minimizing trigger errors by triggering on the smallest signals. The software allows simultaneous time and frequency domain analysis, the display of up to eight waveforms including reference and math channels, and comprehensive measurement options including frequency, AC RMS, true RMS, and more.
20 MHz bandwidth with 2 independent input channels for flexible signal acquisition. Real-time sampling at 200 MS/s and equivalent-time sampling at 4 GS/s for precise waveform reconstruction. Advanced serial protocol decoding and mask limit testing enhance debugging capabilities.
Function generator and arbitrary waveform generator expand testing and simulation possibilities. Persistence display mode and spectrum analyzer with magnitude, average, and peak hold modes provide in-depth signal insights.
Compact and USB-powered for easy field and laboratory use.
Ideal for technicians, engineers, and developers working in electronics, embedded systems, and diagnostics, the RS PRO 2205A ensures detailed waveform capture and robust analysis. Its portability and comprehensive software features foster efficient troubleshooting and product development workflows.
Explore the range of RS PRO Oscilloscopes at EnvMart to find solutions tailored to your measurement and testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 2205A has a bandwidth of 20 MHz, allowing it to handle a variety of signal types effectively.
This oscilloscope supports 2 independent input channels for flexible signal acquisition.
The maximum sampling rate of the RS PRO 2205A is 200 MS/s, which enables detailed waveform analysis.
It supports multiple interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB, making it compatible with various embedded systems.
The RS PRO 2205A features an 8-bit vertical resolution for accurate signal visualization.
The minimum vertical sensitivity is 10 mV/div and the maximum is 4 V/div, allowing for a wide range of signal amplitudes to be measured.
The dimensions of this oscilloscope are 142 mm in length, 92 mm in width, and 18.8 mm in height.
It has a capture memory depth of 16 kS, enabling it to capture up to 2000 waveforms per second.
The oscilloscope comes with PicoScope software, which provides advanced features such as digital triggering and multi-view waveform display.
The rise time of the RS PRO 2205A is 14 ns, which contributes to its ability to accurately capture fast signals.
The minimum time base setting for this oscilloscope is 5 ns/div, allowing for high-resolution time measurements.
The oscilloscope is manufactured in the United Kingdom.
