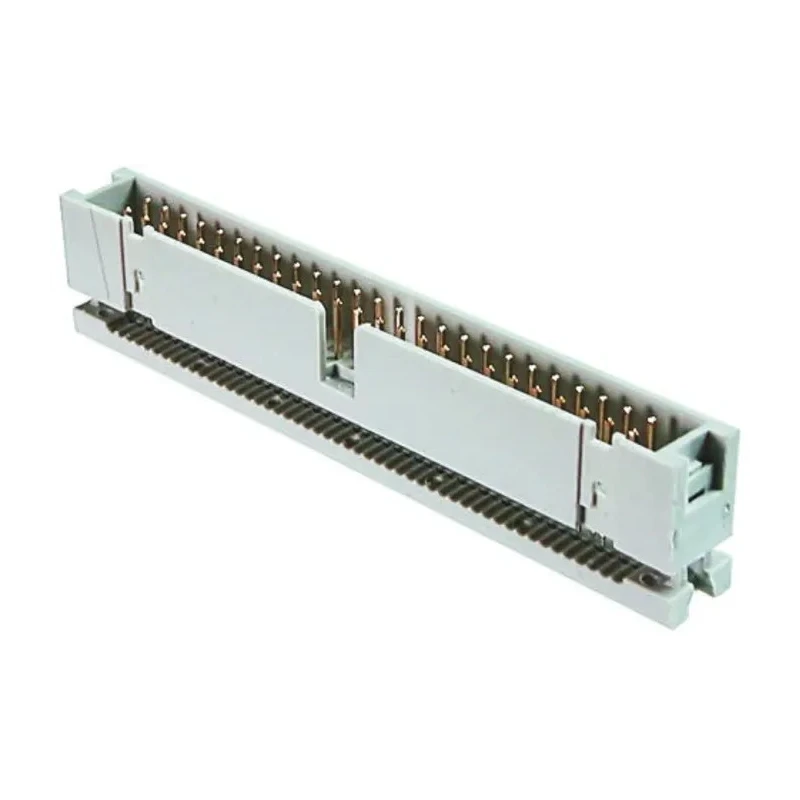

ASSMANN WSW 40-Way IDC Connector Male for Cable, 2 Row, 1A, 250V AC, Right Angle AWHC 40-0111-T

ASSMANN WSW AWHC 40-0111-T 40-Way IDC Connector Male for Cable, 2 Row is engineered to provide a robust and reliable electrical connection in electronic assemblies.

Featuring 40 contact points arranged in two rows with a 2.54mm pitch, this connector allows precise and secure cable termination using insulation displacement technology (IDC). The male connector is shrouded to protect the contacts and ensure proper mating.

Rated for 1A current and 250V AC voltage, it suits a variety of low power signal and data transmission applications within harsh operating environments. The connector’s right-angle orientation optimizes layout space on PCBs and wiring harnesses, enhancing design flexibility in industrial, commercial, and laboratory equipment.

Contacts feature multi-layer plating of tin, nickel, and gold, providing excellent electrical conductivity and resistance to wear and corrosion over extended use. The brass contact material combined with a durable polybutylene terephthalate housing ensures mechanical integrity and operational reliability.

This series is suitable for electronics manufacturing including PCB connectors, wire housings, and cable assemblies for automation, instrumentation, and control systems. This male IDC connector is designed for cable mounting with two rows of contacts.

It supports a current rating of 1 ampere and voltage rating of 250 volts AC. The connector is shrouded and features a right-angle orientation appropriate for space constrained layouts. Contact plating includes tin, nickel, and gold for enhanced conductivity and corrosion resistance.

Constructed with brass contact material and polybutylene terephthalate housing for durability. Designed to operate reliably within a temperature range from -40°C to 105°C. Termination type is IDC ensuring efficient insertion and connection without soldering.

Suitable for applications in electronic component assembly, PCB wiring, and industrial automation equipment.

This product is an excellent choice to improve production efficiency in electronics assembly. Browse more IDC Connectors and related ASSMANN WSW components at EnvMart for comprehensive solutions.
