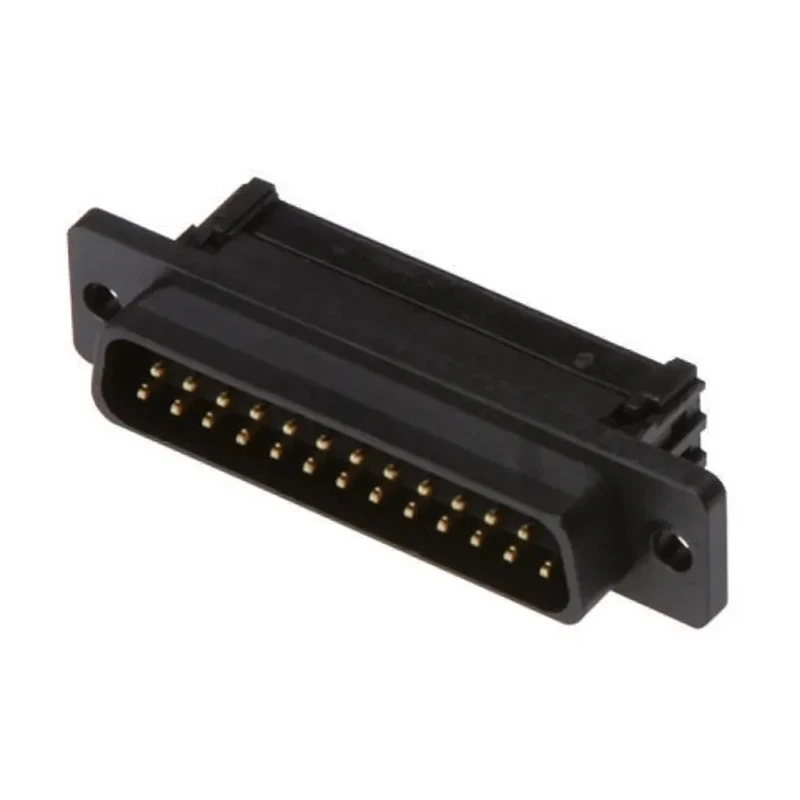

ASSMANN WSW 15-Way Shrouded IDC Connector Male for Cable, 2 Row, 250V ac, AD Series A-DSF 15LPIII/Z

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 15-Way Shrouded IDC Connector Male for Cable, 2 Row, 250V ac, AD Series A-DSF 15LPIII/Z

Name: ASSMANN WSW 15-Way Shrouded IDC Connector Male for Cable, 2 Row, 250V ac, AD Series A-DSF 15LPIII/Z
Brand: ASSMANN WSW
SKU: 208274
Price: 2.01 USD
Availability: InStock



Category IDC Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	ASSMANN WSW
Orientation	Straight
Current	1A
Model	A-DSF 15LPIII/Z
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AD
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Nickel, Tin, Gold
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 15 contacts arranged in 2 rows for compact connection.
Supports a current rating of 1A with a voltage rating of 250V ac.
Constructed with brass contacts and polybutylene terephthalate housing for durability.
Shrouded male connector ensures secure and safe mating.
Nickel, tin, and gold plating enhance contact reliability and corrosion resistance.
Operates reliably in temperatures ranging from -55°C to 105°C.
Straight orientation with IDC termination type for ease of installation.
Series AD model certified for industrial electronic applications.

Product Description

ASSMANN WSW A-DSF 15LPIII/Z is a robust 15-Way IDC Connector designed as a male cable connector with two rows of contacts. It supports a voltage of 250V ac and a current of 1A, making it suitable for various electronic component applications requiring reliable cable interconnection.

The connector features a shrouded design to provide protection and ensure secure mating, reducing the risk of damage or inadvertent disconnection. Contacts are made of brass with nickel, tin, and gold plating, enhancing corrosion resistance and electrical conductivity, critical for industrial and commercial electronic environments.

Its housing is formed from polybutylene terephthalate, a durable and heat-resistant thermoplastic, allowing operation in a wide temperature range from -55°C minimum up to 105°C maximum. This broad temperature tolerance makes it suitable for harsh environments, including industrial, manufacturing, and laboratory settings.

The connector uses IDC (Insulation Displacement Contact) termination and a straight orientation for easy cable assembly and reliable electrical connection without the need for soldering. It belongs to the AD series of Assmann’s D-Sub IDC connectors, known for quality and performance in PCB and wire housing applications.

15 contacts arranged in 2 rows for space-efficient wiring. Current rating of 1A and voltage of 250V ac for standard electronics. Nickel, tin, and gold plated brass contacts provide durability and excellent conductivity. Shrouded male connector design ensures connection security.

Polybutylene terephthalate housing offers heat resistance and mechanical strength. Operates from -55°C to 105°C for versatile industrial use. Suitable for electronic components, power connectors, and wiring harnesses.

This ASSMANN WSW IDC Connector is ideal for electronic manufacturing, industrial automation, laboratory instrumentation, and other commercial electrical applications requiring reliable and durable cable connections. Explore our Electronics Components category for more professional connectors and related products.
